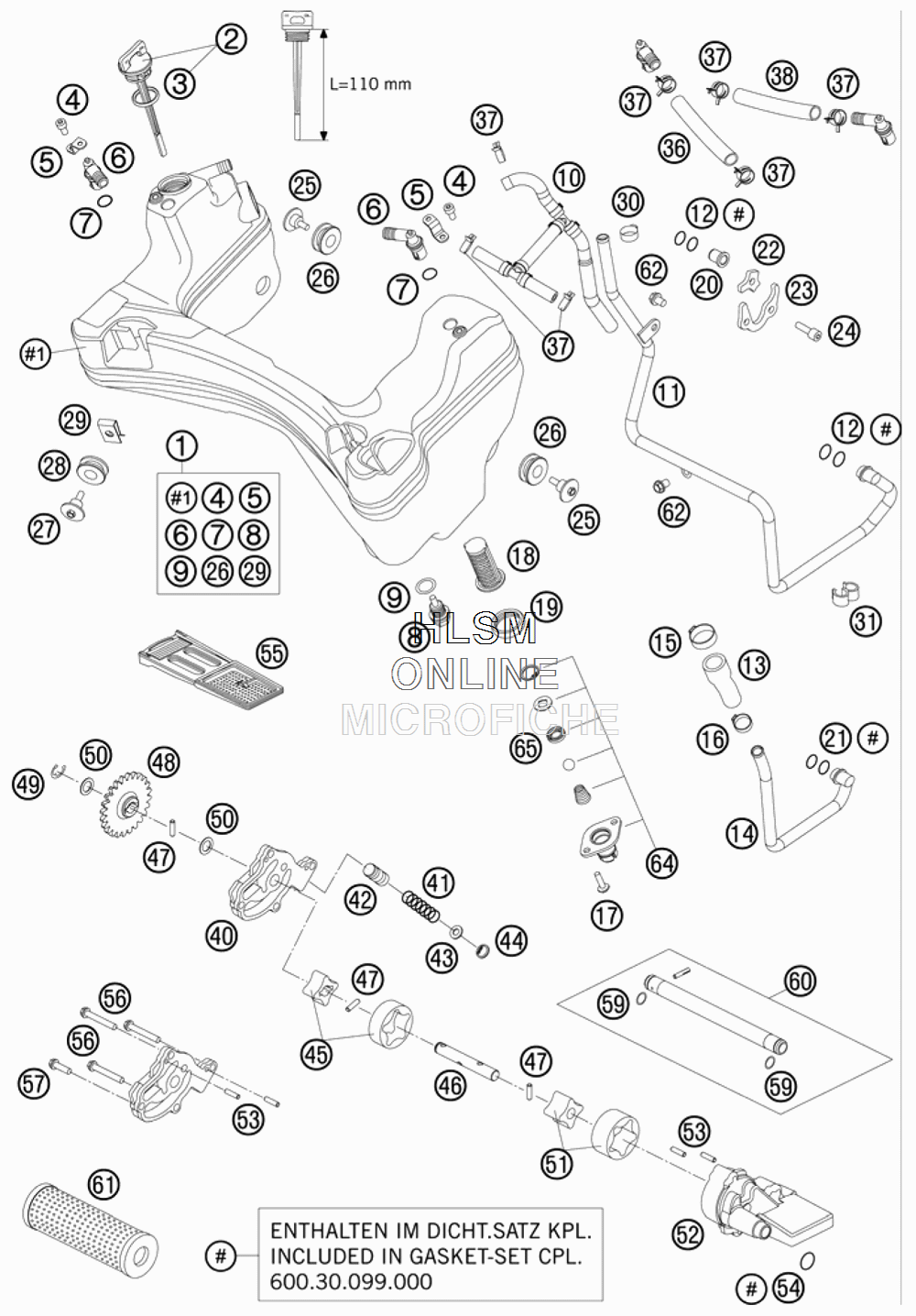

LUBRICATING SYSTEM для Ktm 990 ADVENTURE WHITE ABS - 2009 года выпуска`

№

Артикул

Название
1

60038081133 OIL TANK CPL.

OIL TANK CPL.

170 ₽
2

60030020100 OIL DIPSTICK CPL. W. O-RING

OIL DIPSTICK CPL. W. O-RING

2 630 ₽
3

0770191015 O-RING 19,00X3,00 NBR

O-RING 19,00X3,00 NBR

290 ₽
4

0912050103 AH SCREW DIN0912-M 5X10

AH SCREW DIN0912-M 5X10

180 ₽
5

60038082050 ANGLE CONNECTOR BRACKET PANEL

ANGLE CONNECTOR BRACKET PANEL

1 490 ₽
6

60038082000 ANGLE CONNECTOR LC8

ANGLE CONNECTOR LC8

300 ₽
7

0770080020 O-RING 8X2 SILICONE

O-RING 8X2 SILICONE

210 ₽
8

58030021000 OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
9

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
10*

60038064000 T-CONNECTOR W. REDUCTION RING

T-CONNECTOR W. REDUCTION RING

22 610 ₽
11

60038061044 OIL PIPE "B"

OIL PIPE "B"

14 840 ₽
12

0770090021 O-RING 9X2 VITON

O-RING 9X2 VITON

90 ₽
13

60038034100 PRE-FORMED HOSE 10X3,5

PRE-FORMED HOSE 10X3,5

4 240 ₽
14

60038060044 OIL PIPE "A"

OIL PIPE "A"

17 110 ₽
15

00050256706 VARIABLE ONE-EAR CLAMP 25,6MM

VARIABLE ONE-EAR CLAMP 25,6MM

790 ₽
16

00050198706 VARIABLE ONE-EAR CLAMP 19,8MM

VARIABLE ONE-EAR CLAMP 19,8MM

530 ₽
17

0025060166 HH COLLAR SCREW M6X16

HH COLLAR SCREW M6X16

500 ₽
18

60038017000 OIL SCREEN FINISHED

OIL SCREEN FINISHED

2 760 ₽
19

60038018000 GASKET FOR OIL FILTER HNBR

GASKET FOR OIL FILTER HNBR

1 580 ₽
20

60038024000 PLUG 10MM LC8

PLUG 10MM LC8

1 750 ₽
21

0770110021 O-RING 11X2 VITON

O-RING 11X2 VITON

290 ₽
22

60038037000 RETAINING PLATE 2 LC8

RETAINING PLATE 2 LC8

1 690 ₽
23

60038036000 RETAINING PLATE 1 LC8

RETAINING PLATE 1 LC8

2 070 ₽
24

0912060163 AH SCREW DIN0912-M 6X16

AH SCREW DIN0912-M 6X16

240 ₽
25

60038083000 SCREW OIL TANK FIXING

SCREW OIL TANK FIXING

700 ₽
26

54605068000 EXHAUST BRACKET RUBBER BLACK

EXHAUST BRACKET RUBBER BLACK

1 550 ₽
27

60035001000 SPECIAL SCREW M6X21 WS=8

SPECIAL SCREW M6X21 WS=8

680 ₽
28

41001052000 RUBBER SLEEVE D=12MM

RUBBER SLEEVE D=12MM

760 ₽
29

54603048100 RANGE CHANGE METAL NUT M6

RANGE CHANGE METAL NUT M6

970 ₽
30

00050185706 VARIABLE ONE-EAR CLAMP 18,5MM

VARIABLE ONE-EAR CLAMP 18,5MM

700 ₽
31

60038039000 DISTANCE HOLDER 10/10 BLACK

DISTANCE HOLDER 10/10 BLACK

290 ₽
36

60038059130 OIL TANK BREATHING HOSE R/S

OIL TANK BREATHING HOSE R/S

4 060 ₽
37

00049160121 CLAMP STD DN16

CLAMP STD DN16

320 ₽
38

60038059083 OIL TANK BREATHING HOSE L/S

OIL TANK BREATHING HOSE L/S

3 100 ₽
40

60038010000 PRESSURE PUMP CASE

PRESSURE PUMP CASE

14 020 ₽
41

60038026000 CONTROL SPRING

CONTROL SPRING

240 ₽
42

60038028000 CONTROL PISTON LC8

CONTROL PISTON LC8

1 230 ₽
43

0988060121 WASHER 6X12X1 HRC 40-45

WASHER 6X12X1 HRC 40-45

210 ₽
44

0472012010 CIRCLIP DIN0472 J12

CIRCLIP DIN0472 J12

60 ₽
45

60038011000 ROTOR-SET PRESSURE PUMP

ROTOR-SET PRESSURE PUMP

10 410 ₽
46

60038002000 OIL PUMP SHAFT

OIL PUMP SHAFT

7 650 ₽
47

0402041580 NEEDLE ROLLER NRB 4X15,8 G2

NEEDLE ROLLER NRB 4X15,8 G2

270 ₽
48

60038001124 OIL PUMP GEAR 24-T

OIL PUMP GEAR 24-T

19 160 ₽
49

0799080000 TAB WASHER DIN6799 RS8

TAB WASHER DIN6799 RS8

180 ₽
50

60038007010 WASHER 10X16X0,5

WASHER 10X16X0,5

120 ₽
51

60038009000 ROTOR-SET 19MM

ROTOR-SET 19MM

12 220 ₽
52

60038008000 SUCTION PUMP CASE

SUCTION PUMP CASE

16 040 ₽
53

0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8

NEEDLE ROL.DIN5402 NRB 4X9,8

560 ₽
54

0770133024 O-RING 13,3X2,4 VITON

O-RING 13,3X2,4 VITON

270 ₽
55

60038016000 OIL SCREEN

OIL SCREEN

2 730 ₽
56

0025060406 HH COLLAR SCREW M6X40

HH COLLAR SCREW M6X40

500 ₽
57

0025060256 HH COLLAR SCREW M6X25

HH COLLAR SCREW M6X25

560 ₽
59

0770010010 O-RING 10,00X1,00 NBR 70 SH

O-RING 10,00X1,00 NBR 70 SH

290 ₽
60

60030065100 OIL INJECTION TUBE GEAR

OIL INJECTION TUBE GEAR

3 890 ₽
61

60038015000 OIL FILTER

OIL FILTER

5 410 ₽
62

0025060106 HH COLLAR SCREW M6X10

HH COLLAR SCREW M6X10

500 ₽
64

60038060102 OIL TANK VALVE CPL.

OIL TANK VALVE CPL.

21 150 ₽
65

0760101842 SHAFT SEAL R.10X18X4 B-VITON

SHAFT SEAL R.10X18X4 B-VITON

2 510 ₽
