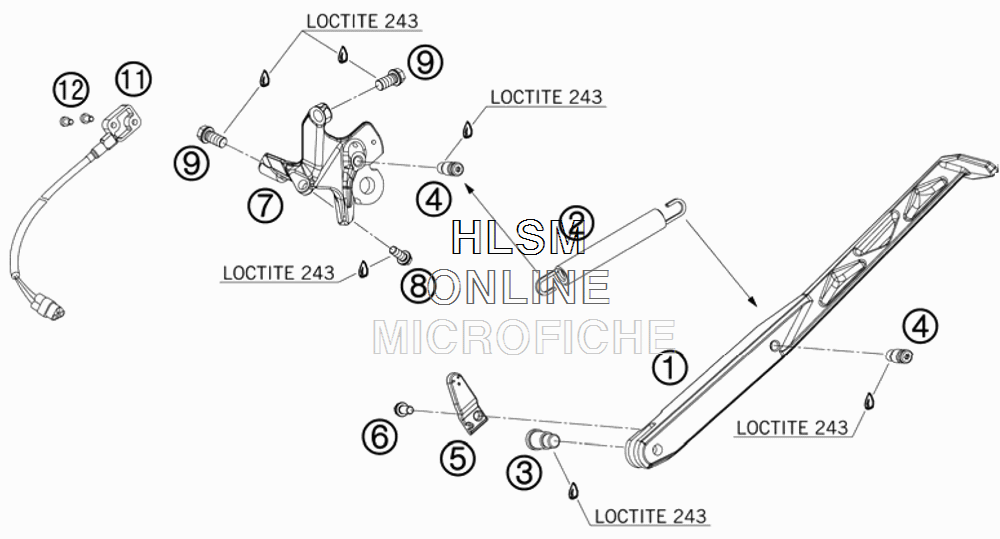

SIDE / CENTER STAND для Ktm 690 DUKE ORANGE - 2009 года выпуска`
-
№АртикулНазвание
-
17560302301001S SIDE STANDSIDE STAND
-
261003024000 SPRING L=116 MMSPRING L=116 MM
-
362503027100 SCREW F. SIDE STAND M10X31,2SCREW F. SIDE STAND M10X31,2
-
475603023011 BOLT F. SIDE STAND SPRINGBOLT F. SIDE STAND SPRING
-
562503029050 MAGNET HOLDERMAGNET HOLDER
-
60025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
775603023053 SIDE STAND SUPPORTSIDE STAND SUPPORT
-
859009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
90025080166 HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
1161011045000 SIDE STAND SENSORSIDE STAND SENSOR
-
120084040083 CYL.HEAD SCREW DIN0084-M 4X8 ACYL.HEAD SCREW DIN0084-M 4X8 A
