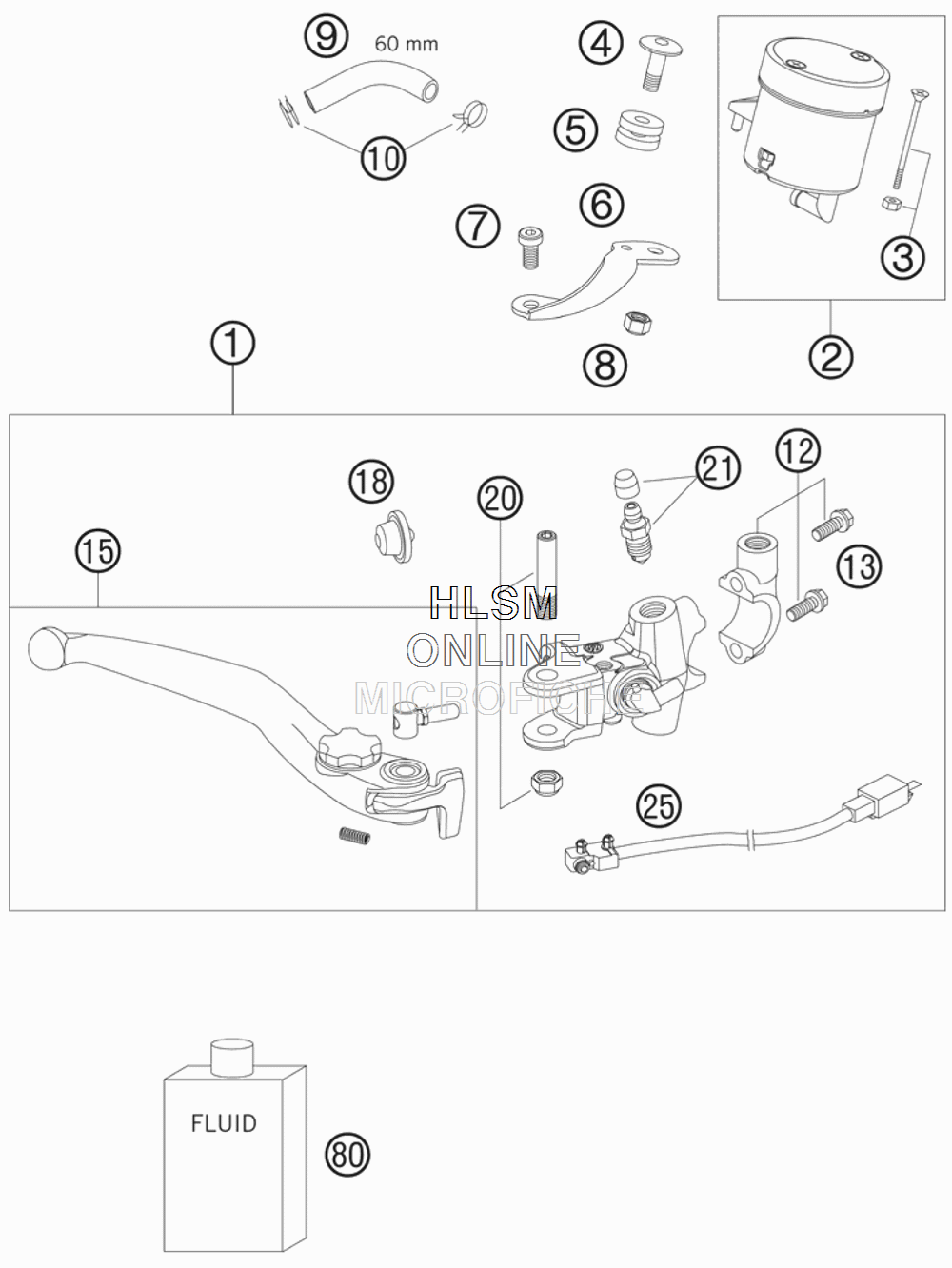

HAND BRAKE CYLINDER для Ktm 690 DUKE ORANGE - 2009 года выпуска`
-
№АртикулНазвание
-
175613001000 HAND BRAKE CYLINDERHAND BRAKE CYLINDER
-
261013009002 BRAKE FLUID RESERVOIR CPL.BRAKE FLUID RESERVOIR CPL.
-
361013009003 SCREW + NUT FOR RESERVOIRSCREW + NUT FOR RESERVOIR
-
461013013050 SCREW RET.PANEL-RESERVOIRSCREW RET.PANEL-RESERVOIR
-
561013013000 RUBBER BUSHRUBBER BUSH
-
661013009001 RET.PANEL FLUID RES. FRONTRET.PANEL FLUID RES. FRONT
-
761013021000 SCREW RET.PANEL-BRAKE CYLINDERSCREW RET.PANEL-BRAKE CYLINDER
-
861013009004 NUT FOR RESERVOIRNUT FOR RESERVOIR
-
958007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
1058007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
1261013005000 CLAMP CPL.CLAMP CPL.
-
130025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1562513002044 HAND BRAKE LEVER CPL.HAND BRAKE LEVER CPL.
-
1861013008000 RUBBER CUPRUBBER CUP
-
2061013006000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2160013020000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
2561011050000 BRAKE LIGHT SWITCH FRONTBRAKE LIGHT SWITCH FRONT
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
