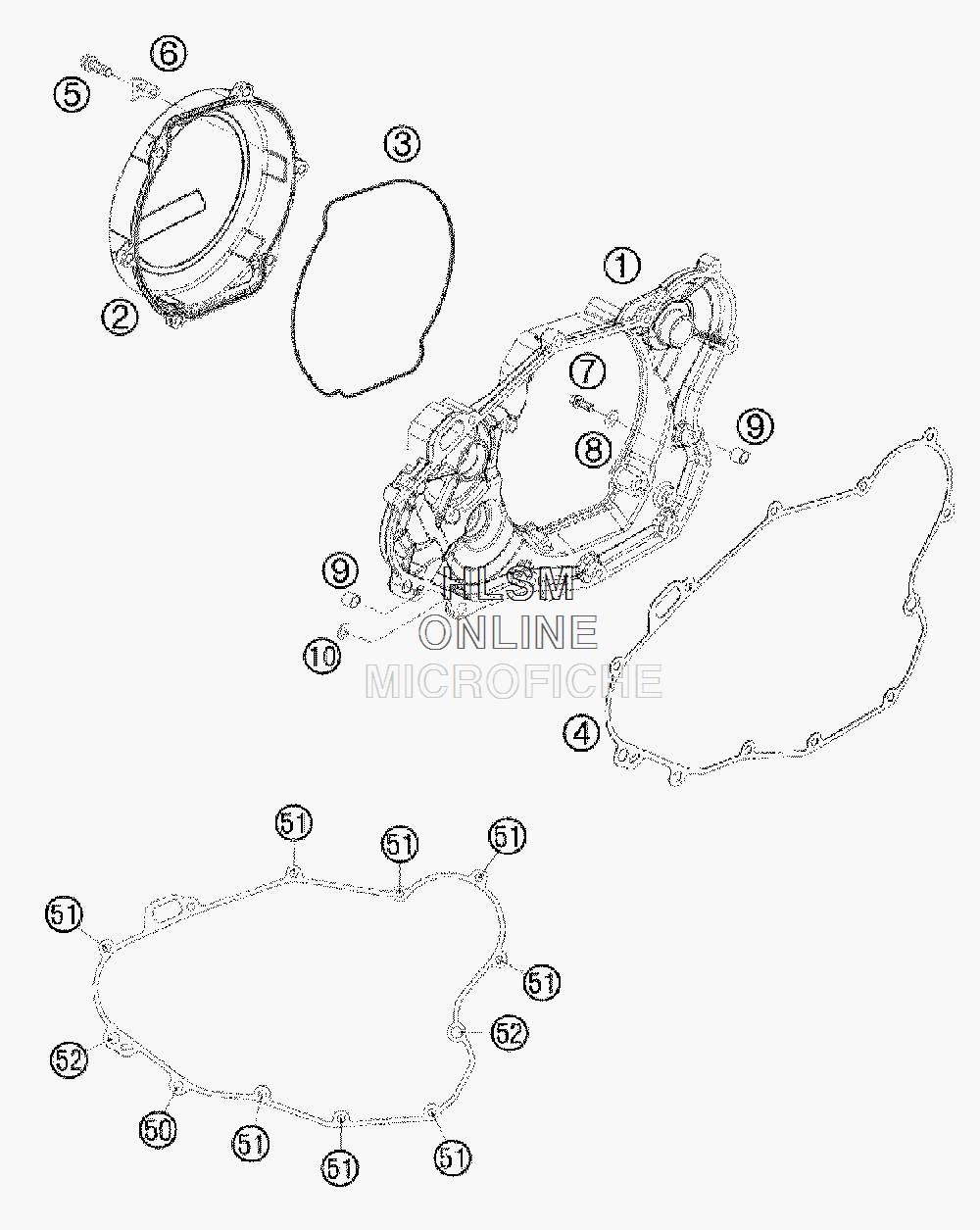

CLUTCH COVER для Ktm 530 EXC USA - 2009 года выпуска`
-
№АртикулНазвание
-
17803000104415 CLUTCH COVER GREY CPL.CLUTCH COVER GREY CPL.
-
27803002610015 OUTER CLUTCH COVEROUTER CLUTCH COVER
-
378030027000 GASKET OUTER CLUTCH COVERGASKET OUTER CLUTCH COVER
-
478030025000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
50025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
678030028000 SPRING HANGERSPRING HANGER
-
70025060086 HH COLLAR SCREW M6X8HH COLLAR SCREW M6X8
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
1058030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
5078030080000 LOCATING SCREWLOCATING SCREW
-
510025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
520025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
