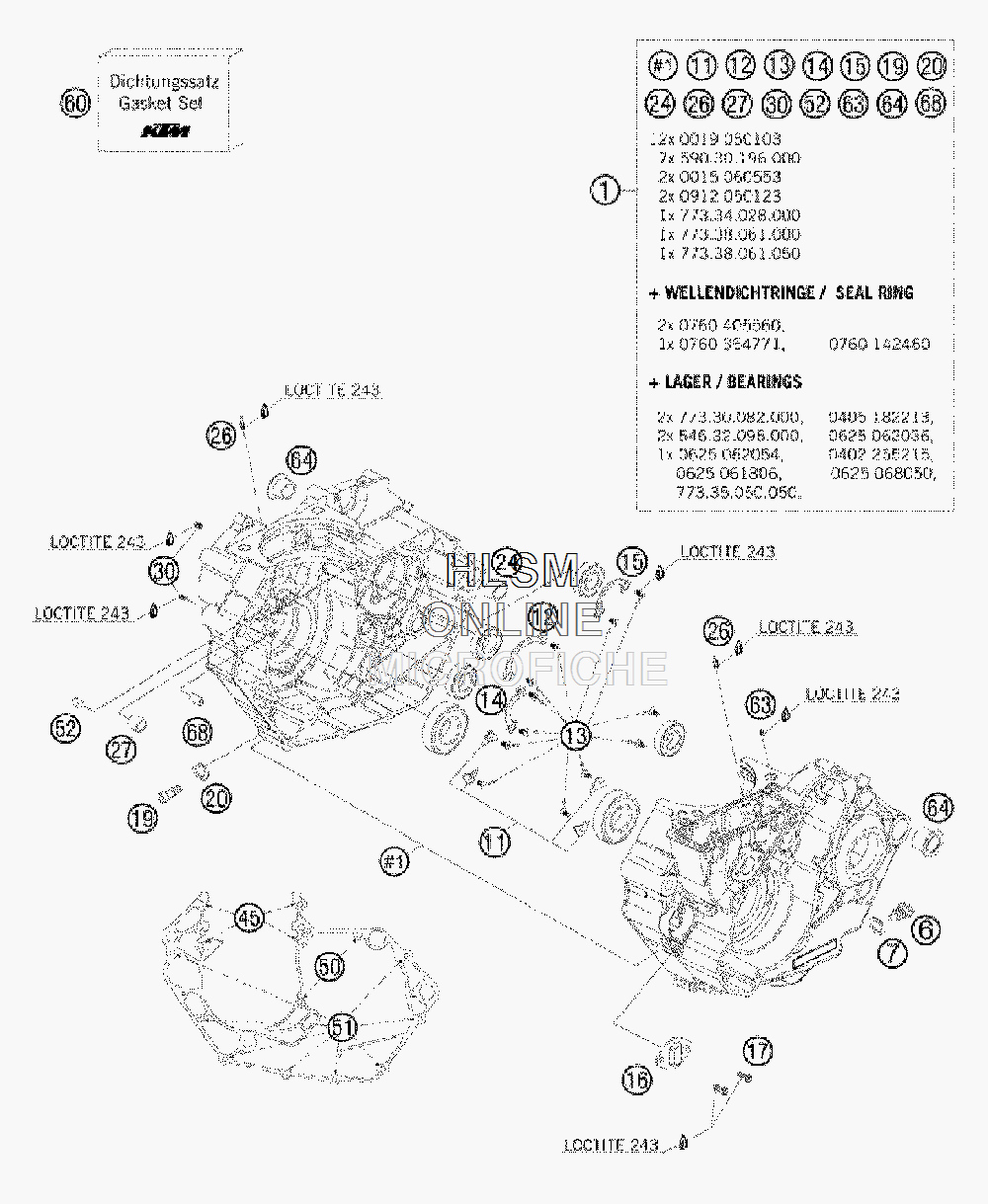

ENGINE CASE для Ktm 505 XC-F - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    77330000244 ENGINE CASE CPL. W.TR.BEAR.
    ENGINE CASE CPL. W.TR.BEAR.
  • 6
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 7
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 11
    77330085000 BUSHING RETAINING PLATE
    BUSHING RETAINING PLATE
  • 12
    77333022100 BUSHING RETAINING PLATE
    BUSHING RETAINING PLATE
  • 13
    0019050103 INT. TORX FLAT HEAD M 5X10 8.8
    INT. TORX FLAT HEAD M 5X10 8.8
  • 14
    77334090000 BUSHING RETAINING PLATE
    BUSHING RETAINING PLATE
  • 15
    77333024100 BUSHING RETAINING PLATE
    BUSHING RETAINING PLATE
  • 16
    77336075050 RETAINING PLATE
    RETAINING PLATE
  • 17
    0025050106 COLLAR SCREW M5X12 ISA30
    COLLAR SCREW M5X12 ISA30
  • 19
    0012080203 AH SCREW DIN6912-M 8X20
    AH SCREW DIN6912-M 8X20
  • 20
    0603082121 SEAL RING CU DIN7603- 8X12X1
    SEAL RING CU DIN7603- 8X12X1
  • 24
    59030024000 DOWEL 17 X 19 X 12
    DOWEL 17 X 19 X 12
  • 26
    60030063050 OIL JET 50
    OIL JET 50
  • 27
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 30
    59030058000 JET 100 BING(44-031/180) M4
    JET 100 BING(44-031/180) M4
  • 45
    77330067170 SCREW M7-1,0X70
    SCREW M7-1,0X70
  • 50
    0025060706 HH COLLAR SCREW M6X70
    HH COLLAR SCREW M6X70
  • 51
    0025060556 HH COLLAR SCREW M6X55
    HH COLLAR SCREW M6X55
  • 52
    0402080120 CYLINDER ROLLER ZRO. 8,0X12 M4
    CYLINDER ROLLER ZRO. 8,0X12 M4
  • 60
    77330099000 GASKET SET 450SX-F
    GASKET SET 450SX-F
  • 63
    77338029052 THROTTLE M5X10X1
    THROTTLE M5X10X1
  • 64
    75030010000 CASE BUSH
    CASE BUSH
  • 68
    59030023000 DOWEL 6X8X11,5
    DOWEL 6X8X11,5
