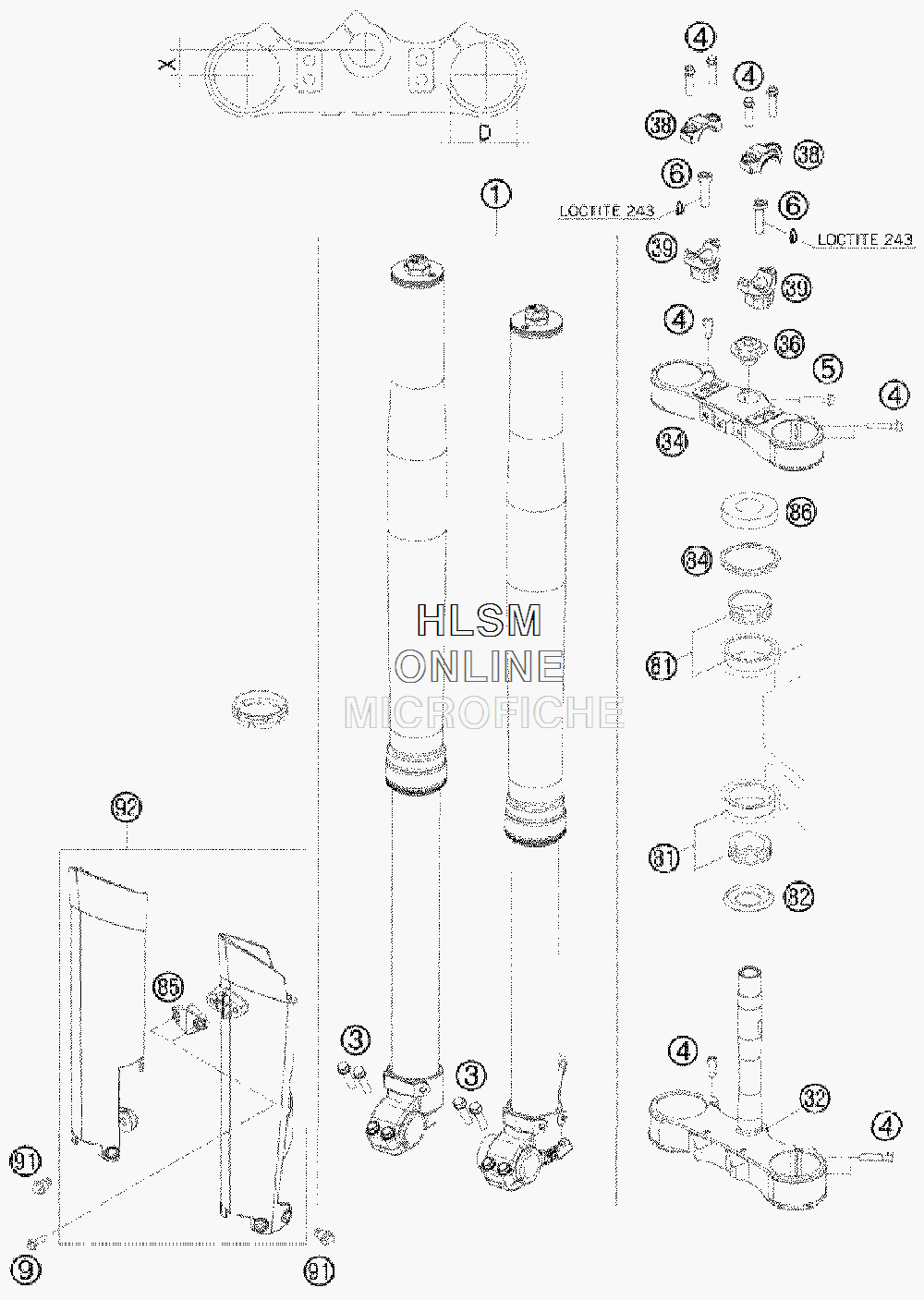

FRONT FORK TRILPE CLAMP для Ktm 450 EXC USA - 2009 года выпуска`
-
№АртикулНазвание
-
114187E0601 FORK KTM 450/530EXC/XC-WFORK KTM 450/530EXC/XC-W
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
40025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
50025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
60912100356 AH SCREW DIN6912-M10X35 10.9AH SCREW DIN6912-M10X35 10.9
-
90017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
327800103211930 BOT. TR. CLAMP CPL. X=19MMBOT. TR. CLAMP CPL. X=19MM
-
345940103401930 TOP TRIPLE CLAMP D=54MMTOP TRIPLE CLAMP D=54MM
-
3654801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
3859001038200 HANDLEBAR CLAMP D=28MMHANDLEBAR CLAMP D=28MM
-
3959401039037 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084200 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
857800108500004 CLAMP FOR SPEED CABLE D=6MMCLAMP FOR SPEED CABLE D=6MM
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
927800109410004 FORK PROTECTION LE+ RI ORANGEFORK PROTECTION LE+ RI ORANGE
