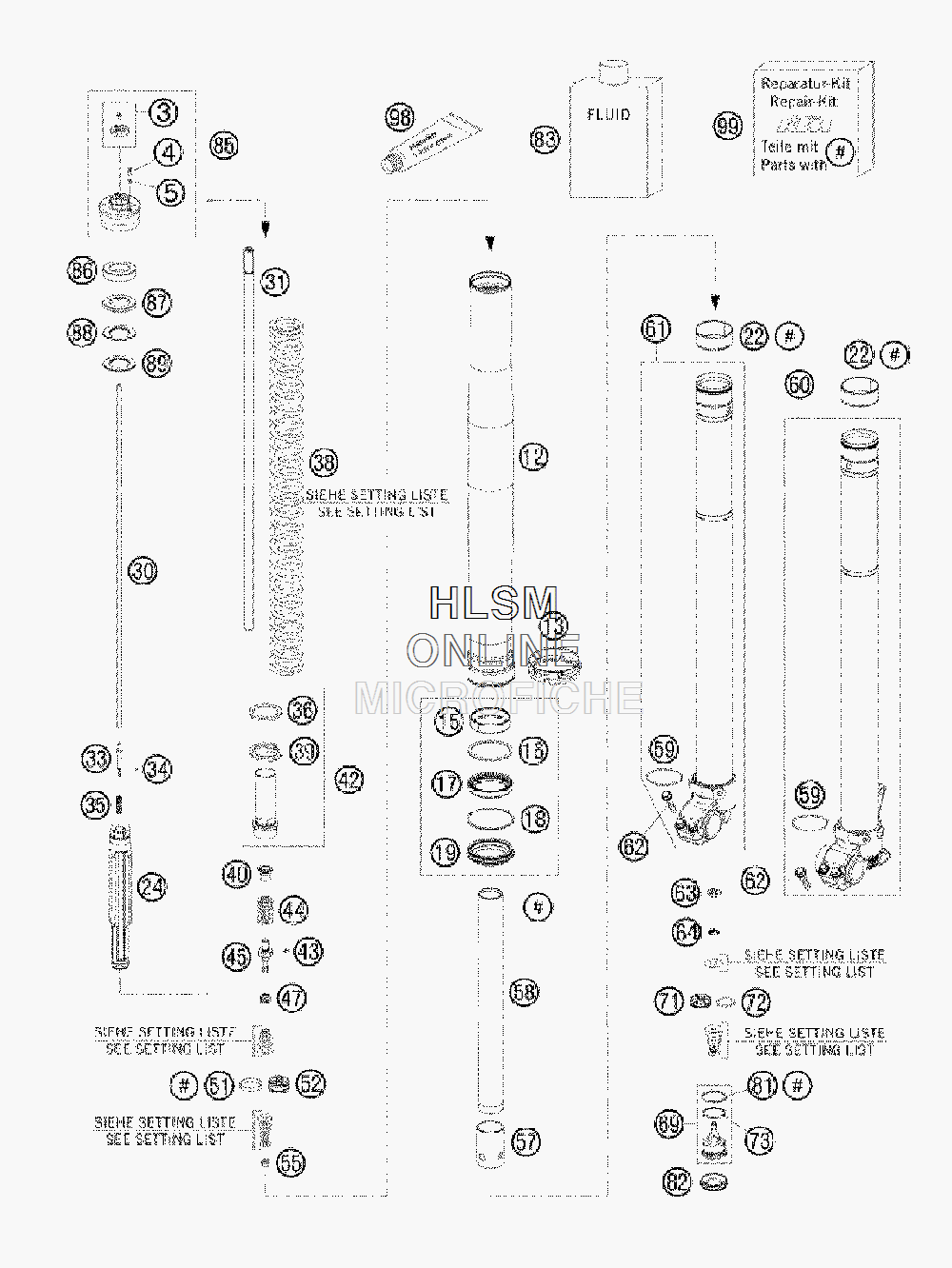

FRONT FORK DISASSEMBLED для Ktm 200 XC-W USA - 2009 года выпуска`

№

Артикул

Название
3

4860082S ADJUSTING KNOB + SCREW

ADJUSTING KNOB + SCREW

0 ₽
4

4860048 VENT SCREW M4X8

VENT SCREW M4X8

0 ₽
5

48600009 O-RIIG NBR 3,7X1,6

O-RIIG NBR 3,7X1,6

60 ₽
12

48600736 OUTER TUBE L577 D 54 /60MM 2L

OUTER TUBE L577 D 54 /60MM 2L

121 280 ₽
13

48600698 FORK PROTECTION RING

FORK PROTECTION RING

2 140 ₽
15

48600429 DU-BUSH D48XD52X12DDL02

DU-BUSH D48XD52X12DDL02

3 240 ₽
16

4860003 SUPPORT RIN G 50 X 57,6 X 1,5

SUPPORT RIN G 50 X 57,6 X 1,5

0 ₽
17

48600347 OIL SEAL RING 48 X 57,8 X 9,5

OIL SEAL RING 48 X 57,8 X 9,5

5 140 ₽
18

48600070 LOCK WASHER SB 58

LOCK WASHER SB 58

350 ₽
19

48600400 DUST CAP D=48 58,4X11,8

DUST CAP D=48 58,4X11,8

4 590 ₽
22

4800428 DU-BUSH D47XD49X20DDL02

DU-BUSH D47XD49X20DDL02

0 ₽
24

48600557S HYDR.STOP L=200 D=31,9 CPL.

HYDR.STOP L=200 D=31,9 CPL.

10 530 ₽
30

48600559 ADJUSTING TUBE L=520

ADJUSTING TUBE L=520

3 440 ₽
31

48600568 PISTON ROD D=12 L= 554 ALU

PISTON ROD D=12 L= 554 ALU

22 940 ₽
33

48600277 ADJUSTER NEEDLE

ADJUSTER NEEDLE

1 240 ₽
34

48600298 O-RING 2X1,5 NBR

O-RING 2X1,5 NBR

60 ₽
35

48600444 REBOUND SPRING C=4N/MM

REBOUND SPRING C=4N/MM

620 ₽
36

486003 WASHER 32X42X2,5

WASHER 32X42X2,5

0 ₽
38

94002S SPRING 3,8N/MM SET D=4,9MM

SPRING 3,8N/MM SET D=4,9MM

0 ₽
38

94003S SPRING 4,0N/MM SET D=5,0MM

SPRING 4,0N/MM SET D=5,0MM

0 ₽
38

94004S SPRING 4,2N/MM SET D=5,0MM

SPRING 4,2N/MM SET D=5,0MM

0 ₽
38

94005S SPRING 4,4N/MM SET D=5,1MM

SPRING 4,4N/MM SET D=5,1MM

0 ₽
38

94006S SPRING 4,6N/MM SET

SPRING 4,6N/MM SET

0 ₽
38

94007S SPRING 4,8N/MM SET

SPRING 4,8N/MM SET

0 ₽
39

4860002 INTERM. RING 26,2 X 43 X 3

INTERM. RING 26,2 X 43 X 3

0 ₽
40

48600525 GUIDING BUSH REDBOUND SPRING

GUIDING BUSH REDBOUND SPRING

310 ₽
42

48600762S SCREW SLEEVE M27X,08 L=00 KPL

SCREW SLEEVE M27X,08 L=00 KPL

7 330 ₽
43

48600299 O-RING 6X1,2 NBR

O-RING 6X1,2 NBR

30 ₽
44

486005 REBOUND SPRING L=32 C=17

REBOUND SPRING L=32 C=17

0 ₽
45

48600576 PISTON ROD REBOUND

PISTON ROD REBOUND

2 230 ₽
47

48600382 SHUTTLE VALVE SPRING C=0,4

SHUTTLE VALVE SPRING C=0,4

370 ₽
51

48600455 PISTON RING 5X1X68

PISTON RING 5X1X68

3 790 ₽
52

48600575 PISTON REBOUND SX

PISTON REBOUND SX

3 400 ₽
55

40540486 NUT M6X0,5 REBOUND

NUT M6X0,5 REBOUND

920 ₽
57

48600764 ADAPTER SLEEVE D23/D28

ADAPTER SLEEVE D23/D28

5 130 ₽
58

48600763 PIPE D23/L350

PIPE D23/L350

17 330 ₽
59

48600048 O-RIMG NBR 46 X 2

O-RIMG NBR 46 X 2

540 ₽
60

48600237S3 AXLE CLAMP L/S + TUBE CPL.

AXLE CLAMP L/S + TUBE CPL.

170 ₽
61

48600238S4 AXLE CLAMP R/S + TUBE CPL.

AXLE CLAMP R/S + TUBE CPL.

170 ₽
62

0025080256 HH COLLAR SCREW M8X25

HH COLLAR SCREW M8X25

300 ₽
63

48600163 CHECK VALVE NUT M6X0,5

CHECK VALVE NUT M6X0,5

720 ₽
64

48600202 SPRING CHECK VALVE D=0,7

SPRING CHECK VALVE D=0,7

310 ₽
69

48600586S TAP COMPRESSION CPL

TAP COMPRESSION CPL

24 910 ₽
71

48600047 PISTON COMPRESSION D=27,9

PISTON COMPRESSION D=27,9

2 250 ₽
72

46811499 O-RING MBR 21X2

O-RING MBR 21X2

60 ₽
73

35480320 O-RING NBR 24X2

O-RING NBR 24X2

80 ₽
81

48600004 COPPER WASHER 29,5X33,5X1

COPPER WASHER 29,5X33,5X1

910 ₽
82

48600141 RUBBER CAP D=35MM

RUBBER CAP D=35MM

920 ₽
83

48600401S1 FORK OIL SAE5 5L

FORK OIL SAE5 5L

47 770 ₽
85

48600431S2 PRE-LOAD ADJ. M51X1,5

PRE-LOAD ADJ. M51X1,5

22 640 ₽
86

48600038 SPACER 42X26,5X10

SPACER 42X26,5X10

560 ₽
87

48600037 SPACER 42X26,5X5

SPACER 42X26,5X5

800 ₽
88

48600036 SPACER 42X26,5X2,5

SPACER 42X26,5X2,5

440 ₽
89

48600053 SPACER 42X26,5X1,5

SPACER 42X26,5X1,5

800 ₽
98

T511 SILICONE GREASE F. DUST STRI

SILICONE GREASE F. DUST STRI

5 410 ₽
99

R14016 REPAIR-KIT EXC FRONT FORK 2009

REPAIR-KIT EXC FRONT FORK 2009

35 890 ₽
