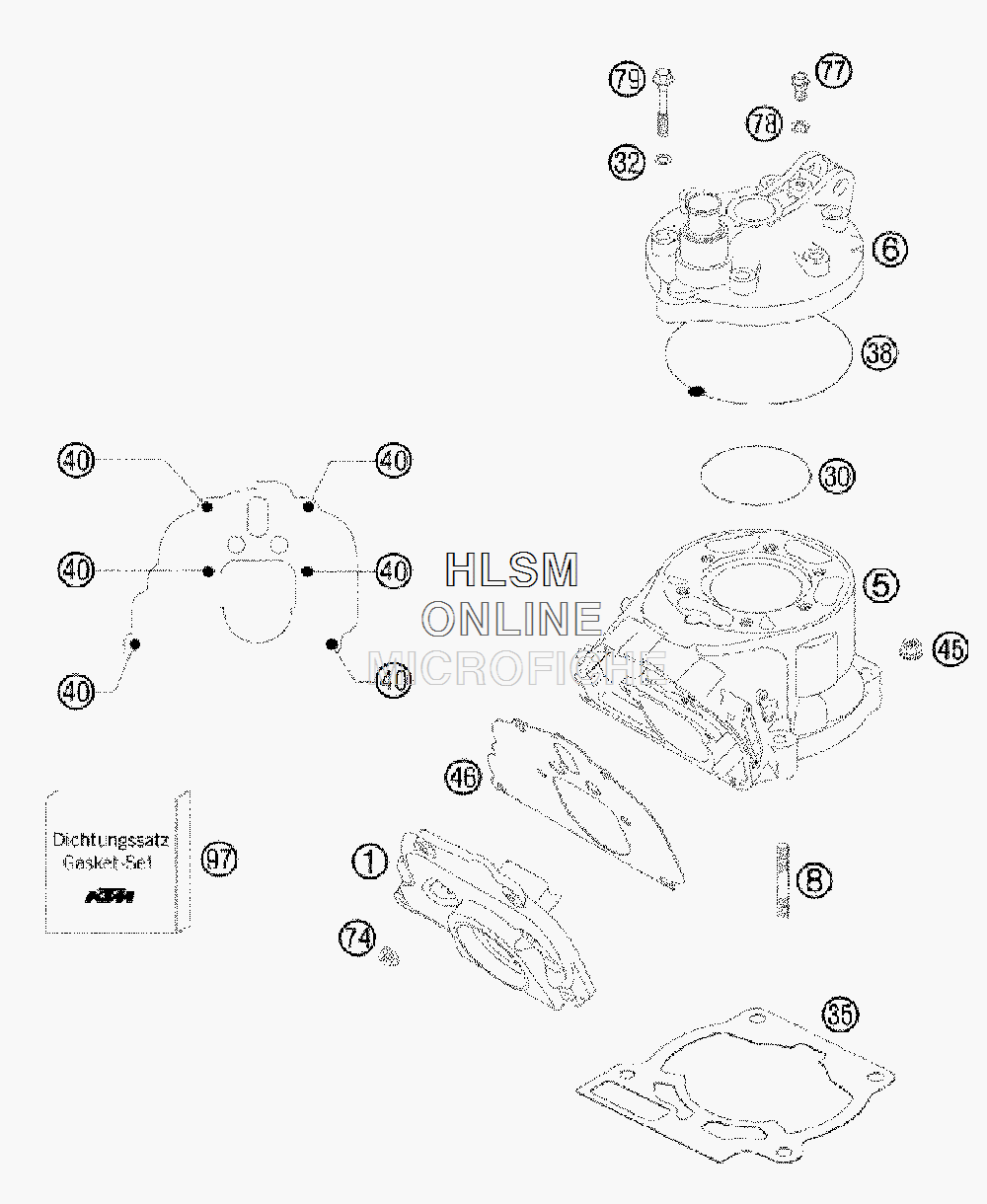

CYLINDER CYLINDER HEAD для Ktm 200 XC-W EXC - 2009 года выпуска`
-
№АртикулНазвание
-
152337001200 INTERMEDIATE FLANGE 200INTERMEDIATE FLANGE 200
-
552330005300 CYLINDER 200CYLINDER 200
-
652330006200 CYLINDER HEAD 200CYLINDER HEAD 200
-
80835080355 STUD DIN0835-M 8X35STUD DIN0835-M 8X35
-
300770720021 O-RING 72,00X2,00 VITONO-RING 72,00X2,00 VITON
-
3250230032010 CU-SEAL RING 7,3 X 12 X 0,5CU-SEAL RING 7,3 X 12 X 0,5
-
3550330035020 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
3550330035025 CYLINDER BASE GASKET 0,25MMCYLINDER BASE GASKET 0,25MM
-
3550330035040 CYLINDER BASE GASKET 0,40MMCYLINDER BASE GASKET 0,40MM
-
3550330035050 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
3550330035075 CYLINDER BASE GASKET 0,75MMCYLINDER BASE GASKET 0,75MM
-
3852330137000 CYL.HEAD SEAL RING 200CYL.HEAD SEAL RING 200
-
400014050203 HH COLLAR SCREW M 5X20HH COLLAR SCREW M 5X20
-
4550330045000 HH COLLAR NUT M 8HH COLLAR NUT M 8
-
4652337046100 INTERMED.GASKET 1,1MM 200INTERMED.GASKET 1,1MM 200
-
7451005074000 RETAINING PLATERETAINING PLATE
-
770025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
780603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
7950030079000 CYL. HEAD BOLT M 7X40CYL. HEAD BOLT M 7X40
-
9750330097000 GASKET SET CYL. 125/200GASKET SET CYL. 125/200
