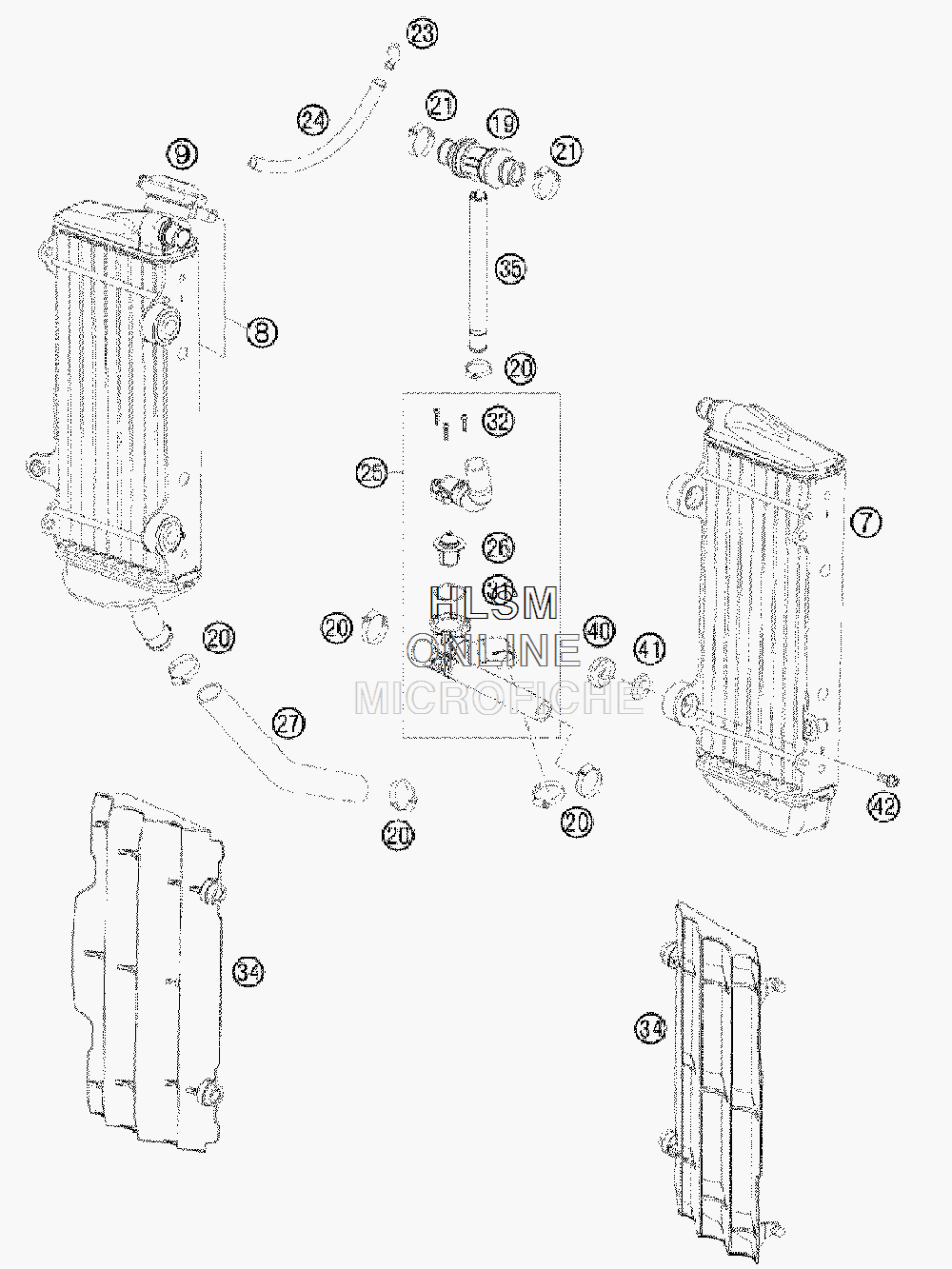

COOLING SYSTEM для Ktm 200 XC-W EXC USA - 2009 года выпуска

  • №
    Артикул
    Название
  • 7
    54835007200 RADIATOR LEFT ''VW1595''
    RADIATOR LEFT ''VW1595''
  • 8
    54835008200 RADIATOR RIGHT ''VW1596''
    RADIATOR RIGHT ''VW1596''
  • 9
    58035016000 RADIATOR CAP SMALL 20,3 PSI
    RADIATOR CAP SMALL 20,3 PSI
  • 19
    77335026000 T-CONNECTOR CPL.
    T-CONNECTOR CPL.
  • 20
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 21
    42013037300 HOSE CLAMP NORMA 12/22
    HOSE CLAMP NORMA 12/22
  • 23
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 24
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 25
    52335426033 RADIATOR H. 200 W. THERM.55
    RADIATOR H. 200 W. THERM.55
  • 26
    54835017000 THERMOSTAT 55°C
    THERMOSTAT 55°C
  • 27
    50335027000 RADIATOR HOSE 18X25 125/200
    RADIATOR HOSE 18X25 125/200
  • 31
    0770320020 O-RING 32,00X2,00
    O-RING 32,00X2,00
  • 32
    0016040183 SCREW FOR PLASTIC D=4X18
    SCREW FOR PLASTIC D=4X18
  • 34
    7733503400030 RAD. PR. L/S+R/S BLACK SX
    RAD. PR. L/S+R/S BLACK SX
  • 35
    54835072000 HOSE CONNECTOR 2 STROKE
    HOSE CONNECTOR 2 STROKE
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41
    77335001000 WASHER FOR RADIATOR
    WASHER FOR RADIATOR
  • 42
    0023060123 COLLAR SCREW M6X12
    COLLAR SCREW M6X12
