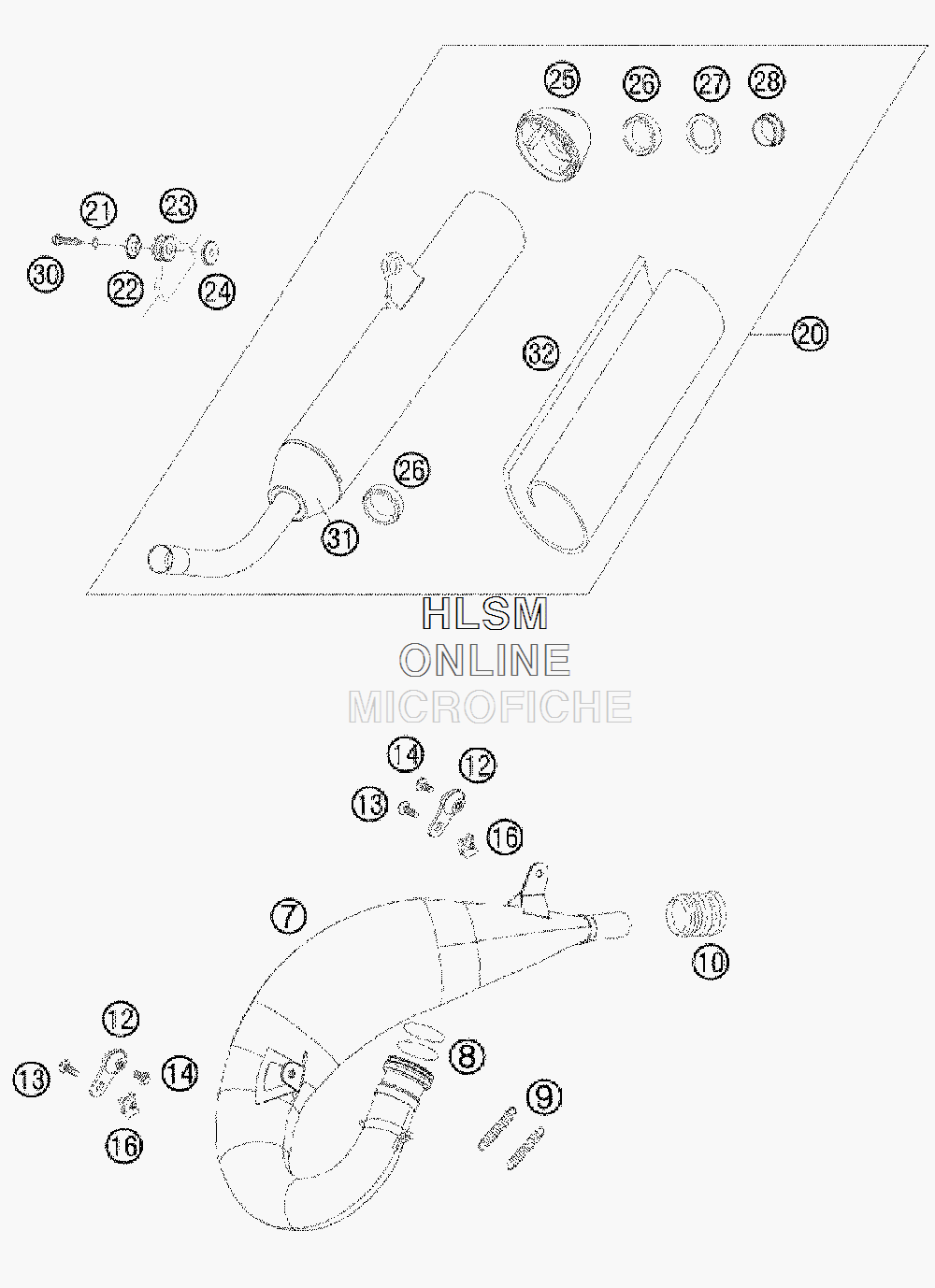

EXHAUST SYSTEM для Ktm 150 SX - 2009 года выпуска

  • №
    Артикул
    Название
  • 7
    51505007000 EXHAUST PIPE CPL.
    EXHAUST PIPE CPL.
  • 8
    0770440030 O-RING 44,00X3,00 VITON
    O-RING 44,00X3,00 VITON
  • 9
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 10
    54605057000 RUBBER SLEEVE D=21MM/23MM
    RUBBER SLEEVE D=21MM/23MM
  • 12
    50305012000 SWINGELEMENT FOR EXHAUST PIPE
    SWINGELEMENT FOR EXHAUST PIPE
  • 13
    0024060156 HH COLLAR SCREW M6X15
    HH COLLAR SCREW M6X15
  • 14
    0024060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 16
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 20
    50305079400 EXHAUST SILENCER 125 SX
    EXHAUST SILENCER 125 SX
  • 21
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 22
    77305069000 BUSHING 7.5X12X28X7.6
    BUSHING 7.5X12X28X7.6
  • 23
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
  • 24
    59405169000 BUSHING SIL.-SMR REAR
    BUSHING SIL.-SMR REAR
  • 25
    54805079052 SILENCER ENDCAP 2-STROKE
    SILENCER ENDCAP 2-STROKE
  • 26
    54805079150 SILCENCER RUBBER 2-STROKE
    SILCENCER RUBBER 2-STROKE
  • 27
    54805083060 SILENCER DISC
    SILENCER DISC
  • 28
    54805079058 SILENCER SCREW 2-STROKE
    SILENCER SCREW 2-STROKE
  • 30
    0025060356 HH COLLAR SCREW M6X35
    HH COLLAR SCREW M6X35
  • 31
    54805079060 SILENCER CONNECTING-CAP
    SILENCER CONNECTING-CAP
  • 32
    50305079255 STUFFING YARN
    STUFFING YARN
