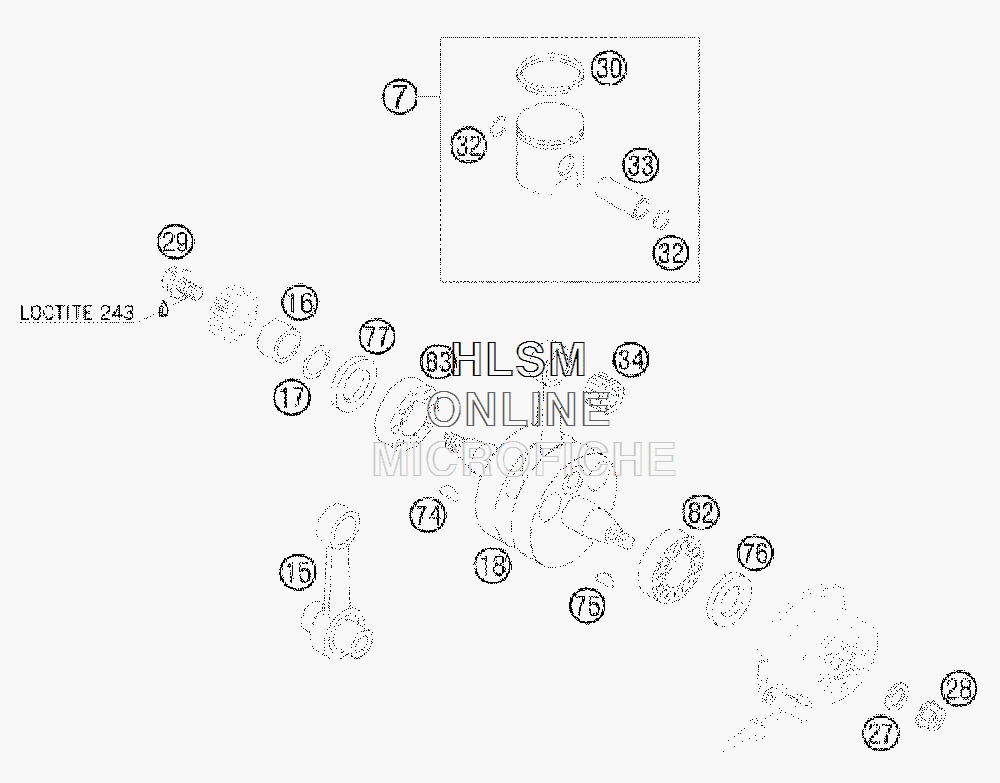

CRANKSHAFT PISTON для Ktm 105 XC - 2009 года выпуска`
-
№АртикулНазвание
-
747530007000I PISTON I CPL. 105 SX 52MMPISTON I CPL. 105 SX 52MM
-
747530007000II PISTON II CPL. 105 SX 52MMPISTON II CPL. 105 SX 52MM
-
1547030015100 CON. ROD. REP. KIT 85 SXCON. ROD. REP. KIT 85 SX
-
1647030016000 SPACER SLEEVE 85 SXSPACER SLEEVE 85 SX
-
170770020180 O-RING 18,77X1,78 NBR 70O-RING 18,77X1,78 NBR 70
-
1847030018100 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
2750230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2849030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
2947032019000 HH SCREW W. COLLAR M10X1,25X20HH SCREW W. COLLAR M10X1,25X20
-
3047530030000 PISTON RING 105 SXPISTON RING 105 SX
-
3247030074000 WIRE LOCK RING 85 SXWIRE LOCK RING 85 SX
-
3347530033000 PISTON BOLT 105 SXPISTON BOLT 105 SX
-
3447030034000 NEEDLE BEARING KBK 14X18X17NEEDLE BEARING KBK 14X18X17
-
740888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
750888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
7647030076100 SEAL SHAFT RING 20X35X6 BTSLSEAL SHAFT RING 20X35X6 BTSL
-
770760304261 OIL SEALOIL SEAL
-
8247030082000 CYL.ROLLER BEAR. NJ205ET2XCS42CYL.ROLLER BEAR. NJ205ET2XCS42
-
8347030083000 BALL BEARING 22X52X15BALL BEARING 22X52X15
