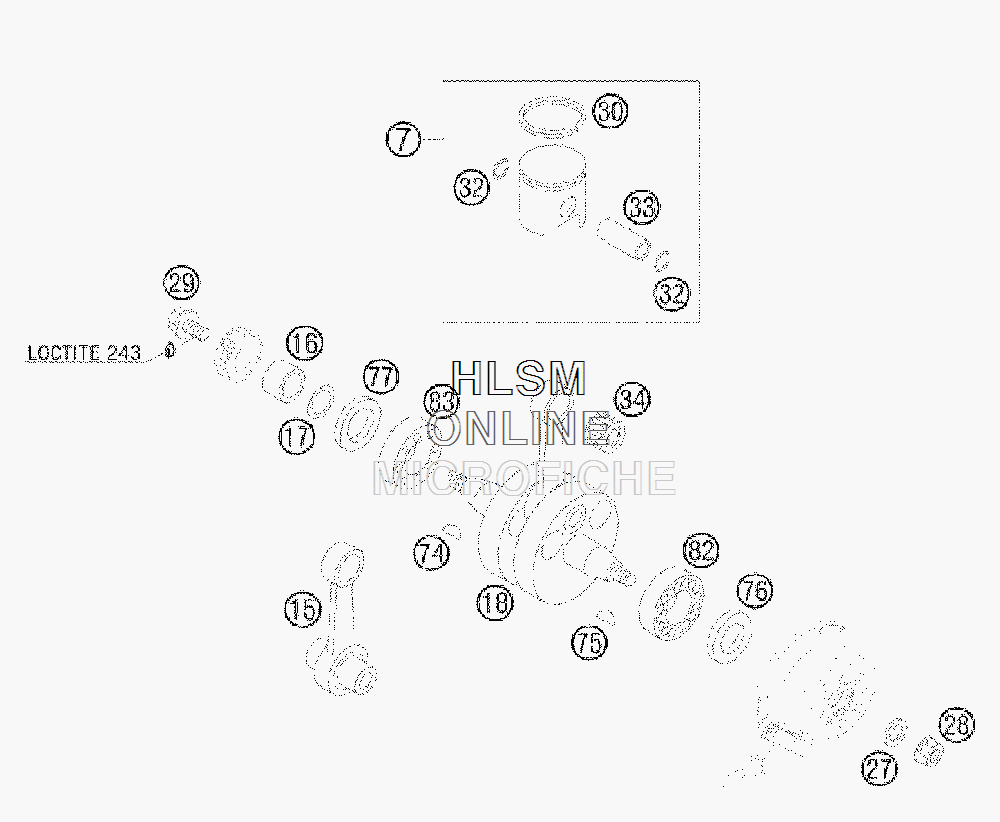

CRANKSHAFT для Ktm 105 SX - 2009 года выпуска

  • №
    Артикул
    Название
  • 7
    47530007000I PISTON I CPL. 105 SX 52MM
    PISTON I CPL. 105 SX 52MM
  • 7
    47530007000II PISTON II CPL. 105 SX 52MM
    PISTON II CPL. 105 SX 52MM
  • 15
    47030015100 CON. ROD. REP. KIT 85 SX
    CON. ROD. REP. KIT 85 SX
  • 16
    47030016000 SPACER SLEEVE 85 SX
    SPACER SLEEVE 85 SX
  • 17
    0770020180 O-RING 18,77X1,78 NBR 70
    O-RING 18,77X1,78 NBR 70
  • 18
    47030018100 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 27
    50230029012 LOCKING RING VSK 12
    LOCKING RING VSK 12
  • 28
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 29
    47032019000 HH SCREW W. COLLAR M10X1,25X20
    HH SCREW W. COLLAR M10X1,25X20
  • 30
    47530030000 PISTON RING 105 SX
    PISTON RING 105 SX
  • 32
    47030074000 WIRE LOCK RING 85 SX
    WIRE LOCK RING 85 SX
  • 33
    47530033000 PISTON BOLT 105 SX
    PISTON BOLT 105 SX
  • 34
    47030034000 NEEDLE BEARING KBK 14X18X17
    NEEDLE BEARING KBK 14X18X17
  • 74
    0888040050 WOODRUFF KEY DIN6888 4X5X13
    WOODRUFF KEY DIN6888 4X5X13
  • 75
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 76
    47030076100 SEAL SHAFT RING 20X35X6 BTSL
    SEAL SHAFT RING 20X35X6 BTSL
  • 77
    0760304261 OIL SEAL
    OIL SEAL
  • 82
    47030082000 CYL.ROLLER BEAR. NJ205ET2XCS42
    CYL.ROLLER BEAR. NJ205ET2XCS42
  • 83
    47030083000 BALL BEARING 22X52X15
    BALL BEARING 22X52X15
