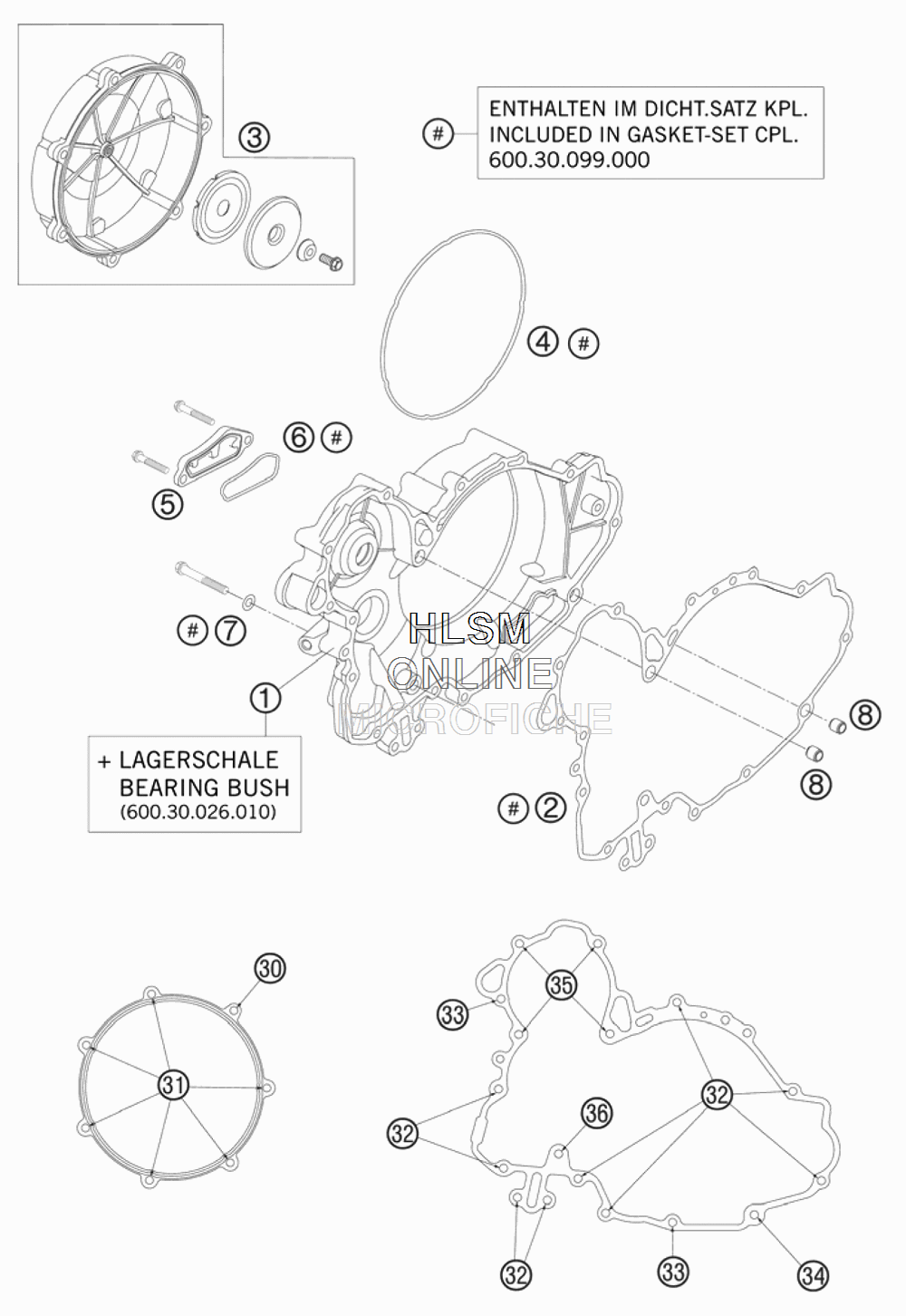

CLUTCH COVER для Ktm 990 Super Duke Black - 2008 года выпуска

  • №
    Артикул
    Название
  • 1*
    60030001144 CLUTCH COVER LC8 CPL.
    CLUTCH COVER LC8 CPL.
  • 2
    60030025000 CLUT.COV. GASK. INSIDE KLI.SIL
    CLUT.COV. GASK. INSIDE KLI.SIL
  • 3
    60030126144 OUTER CLUTCH COVER CPL.
    OUTER CLUTCH COVER CPL.
  • 4
    60030027000 GASKET RING CLUTCH 2X3,1 VAMAC
    GASKET RING CLUTCH 2X3,1 VAMAC
  • 5
    60030012100 CLOS. COVER OIL SCR. MILLED
    CLOS. COVER OIL SCR. MILLED
  • 6
    60030012050 MOLDED RING 1,8X2,5 VAMAC
    MOLDED RING 1,8X2,5 VAMAC
  • 7
    0603082131 COPPER GASK.DIN7603- 8,2X13X1
    COPPER GASK.DIN7603- 8,2X13X1
  • 8
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 30
    0015060853 HH COLLAR SCREW M 6X85 WS=8
    HH COLLAR SCREW M 6X85 WS=8
  • 31
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 32
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 33
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 34
    0015060403 HH COLLAR SCREW M 6X40 WS=8
    HH COLLAR SCREW M 6X40 WS=8
  • 35
    0015060603 HH COLLAR SCREW M 6X60 WS=8
    HH COLLAR SCREW M 6X60 WS=8
  • 36
    0015080603 HH COLLAR SCREW M 8X60 WS=10
    HH COLLAR SCREW M 8X60 WS=10
