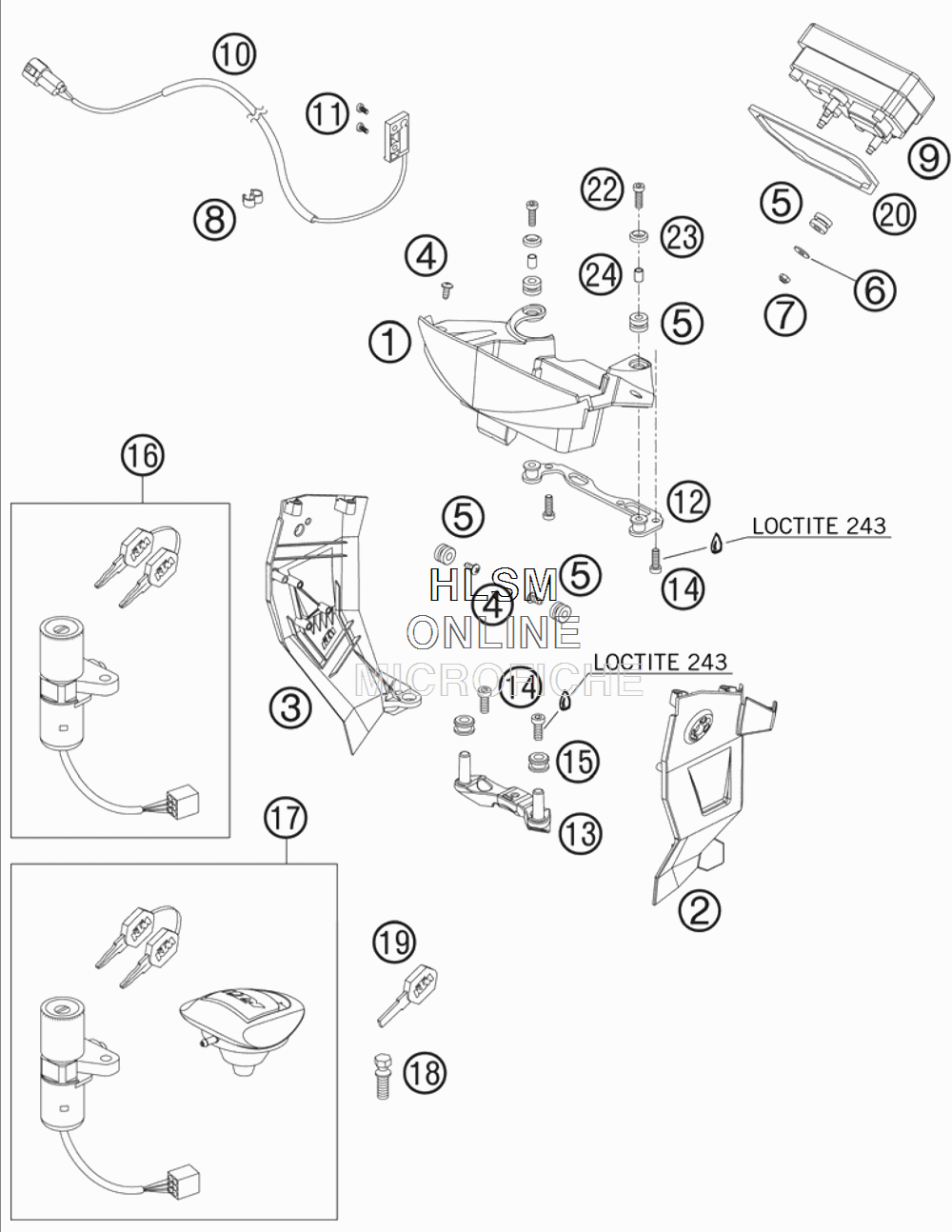

INSTRUMENTS / LOCK SYSTEM для Ktm 950 SUPERMOTO R - 2008 года выпуска`
-
№АртикулНазвание
-
162514061000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
263014062000 MASK BRACKET L/SMASK BRACKET L/S
-
362514063000 MASK BRACKET R/SMASK BRACKET R/S
-
4*0081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
60021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
70985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
855011022100 CLAMP D=6/8MM, BLACKCLAMP D=6/8MM, BLACK
-
961014069000 DIGITAL SPEEDOMETERDIGITAL SPEEDOMETER
-
1060014069150 SPEEDOMETER SENSORSPEEDOMETER SENSOR
-
110084040083 CYL.HEAD SCREW DIN0084-M 4X8 ACYL.HEAD SCREW DIN0084-M 4X8 A
-
1263008003000 MASK BRACKET TOPMASK BRACKET TOP
-
1363014064000 MASK SUPPORT BOTTOMMASK SUPPORT BOTTOM
-
140012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
1560039030000 VIBRATION DAMPER DIGITALBOXVIBRATION DAMPER DIGITALBOX
-
1658411066100 IGNITION LOCKIGNITION LOCK
-
1758411066444 LOCK SYSTEMLOCK SYSTEM
-
1860011064000 TAMPERPROOF SCREW F. IGN. LOCKTAMPERPROOF SCREW F. IGN. LOCK
-
1940011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
-
2060014068000 DAMPING RING TACHOMETERDAMPING RING TACHOMETER
-
220984060252 AH SCREW DIN6912 M6X25AH SCREW DIN6912 M6X25
-
2360008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
2462514037000 SPACER BUSHING 6,2X7,5X10,3SPACER BUSHING 6,2X7,5X10,3
