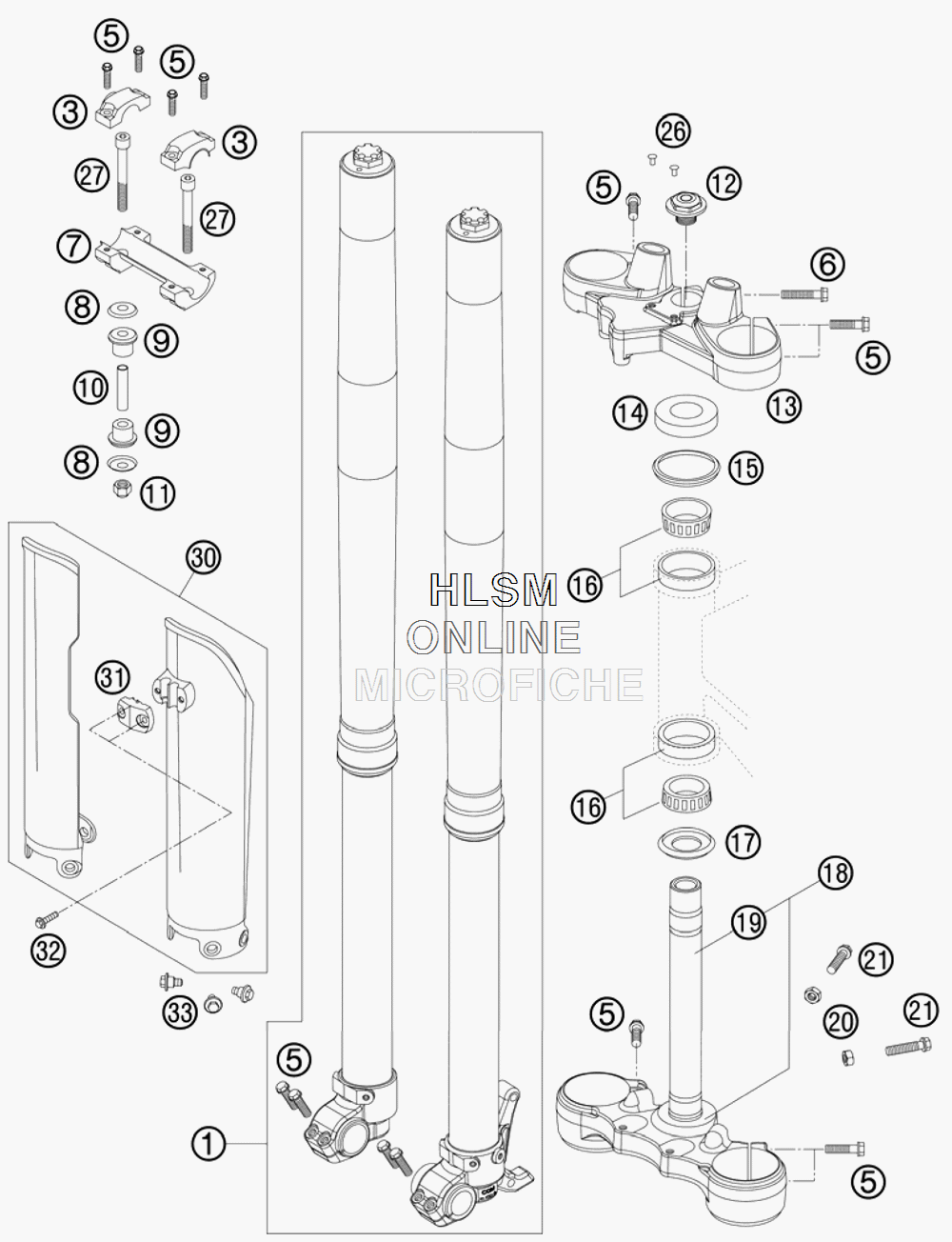

FRONT FORK TRIPLE CLAMP для Ktm 950 SUPERMOTO R - 2008 года выпуска`
-
№АртикулНазвание
-
114187D32 FORK WP 950 SUPERENDUROFORK WP 950 SUPERENDURO
-
35900103830001S HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
5*0025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
6*0025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
75900103920001S HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
856401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
956401040000 RUBBER BUSHINGRUBBER BUSHING
-
1056401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
110982100003 SELF LOCK.NUT DIN0982-M10 HIGHSELF LOCK.NUT DIN0982-M10 HIGH
-
1254801036200 STEER.HEAD SCREW M20X1,5 SW=27STEER.HEAD SCREW M20X1,5 SW=27
-
136000103402001S TOP TRIPLE CLAMP X=20MM D=54MMTOP TRIPLE CLAMP X=20MM D=54MM
-
1461001086000 STEERING HEAD COVERSTEERING HEAD COVER
-
1554601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
1654201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
1754601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
186000103202001S BOTTOM TRIPLE CLAMP CPL D=60MMBOTTOM TRIPLE CLAMP CPL D=60MM
-
1960001033000 FORK TUBE LC8 ADVFORK TUBE LC8 ADV
-
200934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
210933080253 HH SCREW DIN0933-M 8X25HH SCREW DIN0933-M 8X25
-
2660103088000 PLUG ZK 8/5PLUG ZK 8/5
-
270984100703 AH SCREW DIN6912-M10X70AH SCREW DIN6912-M10X70
-
305900109400030 FORK PROTECT. L/S+R/S BLACKFORK PROTECT. L/S+R/S BLACK
-
3158201085000 CLAMP F.SPEED CABLE D=8MMCLAMP F.SPEED CABLE D=8MM
-
320017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
3359001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
