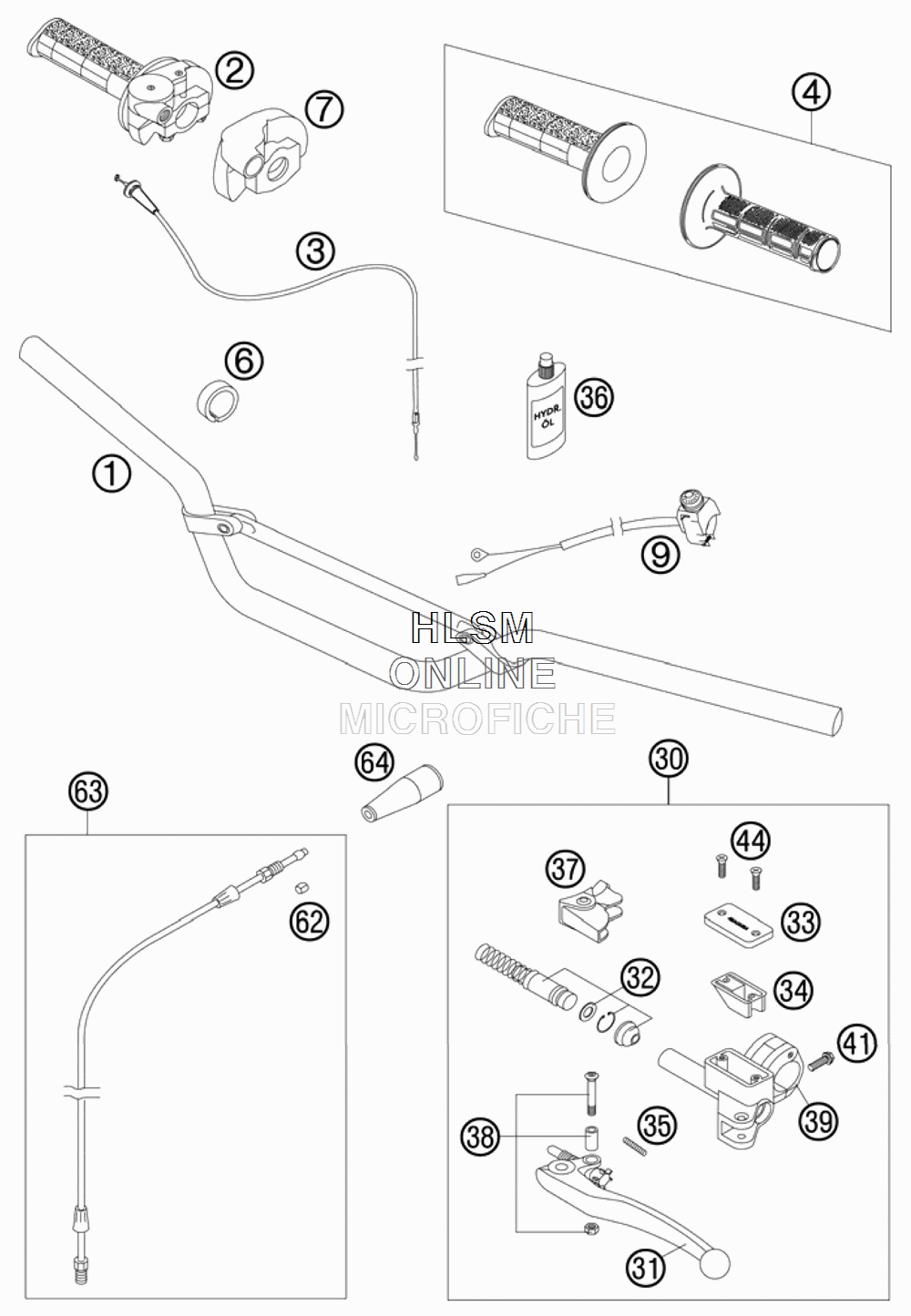

HANDLEBAR CONTROLS для Ktm 65 SX - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    46102001200 HANDLEBAR
    HANDLEBAR
  • 2
    46102010000 THROTTLE GRIP W.COVER
    THROTTLE GRIP W.COVER
  • 3
    46102091000 THROTTLE CABLE DOMINO
    THROTTLE CABLE DOMINO
  • 4
    50202021000 GRIPP SET
    GRIPP SET
  • 6
    46002012000 SPACER BUSHING 21,5X28X7,5
    SPACER BUSHING 21,5X28X7,5
  • 7
    50302020000 PROTECTION COVER
    PROTECTION COVER
  • 9
    50311089200 SHORT CIRCUIT BUTTON
    SHORT CIRCUIT BUTTON
  • 30
    46102030100 MASTER CYLINDER CPL.
    MASTER CYLINDER CPL.
  • 31
    54602031000 CLUTCH LEVER SHORT CPL.
    CLUTCH LEVER SHORT CPL.
  • 31
    59002031000 CLUTCH LEVER LONG CPL.
    CLUTCH LEVER LONG CPL.
  • 32
    59002032100 REP.KIT PISTON 9,0MM RAC.
    REP.KIT PISTON 9,0MM RAC.
  • 33
    50302033100 COVER HYD.CLUTCH 2T
    COVER HYD.CLUTCH 2T
  • 34
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 35
    59002035000 SPRING FOR CLUTCH LEVER
    SPRING FOR CLUTCH LEVER
  • 36
    50302036200 OIL FOR HYD. CLUTCH 75ML
    OIL FOR HYD. CLUTCH 75ML
  • 37
    50302037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 38
    50302038000 LEVER SCREW CPL. 125-200
    LEVER SCREW CPL. 125-200
  • 39
    50302030150 CLAMP WITH PIN
    CLAMP WITH PIN
  • 41
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 44
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 62
    50332063050 SELF CUTTING RING HYDR.PIPE
    SELF CUTTING RING HYDR.PIPE
  • 63
    46132063000 PIPE KIT FOR HYDR.CLUTCH 65 SX
    PIPE KIT FOR HYDR.CLUTCH 65 SX
  • 64
    54002016000 PROTECTION CAP
    PROTECTION CAP
