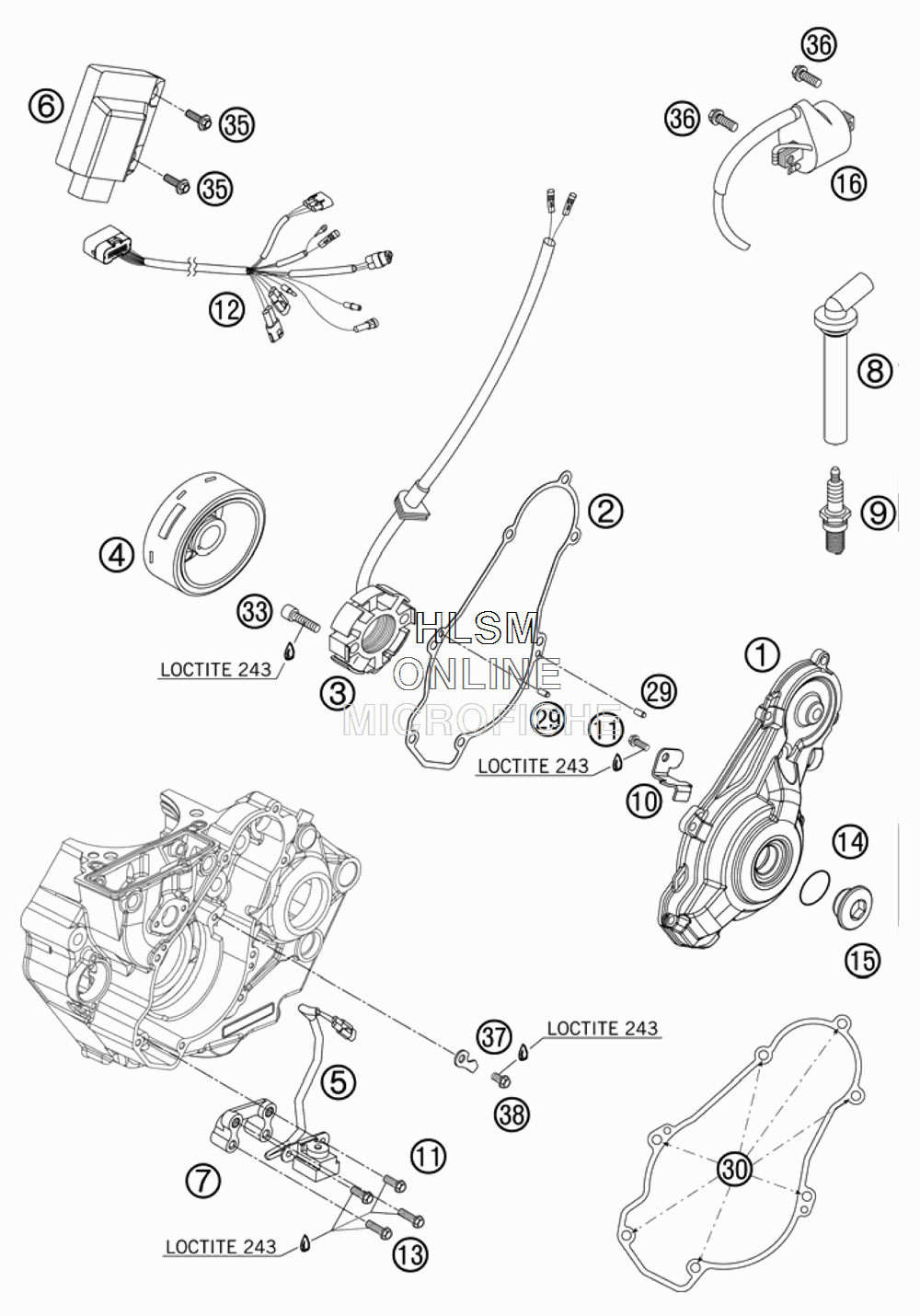

IGNITION SYSTEM для Ktm 505 XC-F - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    77330002100 IGNITION COVER
    IGNITION COVER
  • 2
    77330040100 IGNITION COVER GASKET
    IGNITION COVER GASKET
  • 3
    77339004000 STATOR
    STATOR
  • 4
    77039005000 FLYWHEEL
    FLYWHEEL
  • 5
    77339034000 PULSER COIL KOKUSAN ''PU5165''
    PULSER COIL KOKUSAN ''PU5165''
  • 6
    77639031000 CDI UNIT KOKUSAN 505 SX-F
    CDI UNIT KOKUSAN 505 SX-F
  • 7
    77339035100 ADAPTER PULSER COIL
    ADAPTER PULSER COIL
  • 8
    77339090000 SPARK PLUG NGK-XD05EMGK
    SPARK PLUG NGK-XD05EMGK
  • 9
    77039093000 SPARK PLUG NGK CR9EKB
    SPARK PLUG NGK CR9EKB
  • 10
    77330002050 WIRE RETAINING BRACKET
    WIRE RETAINING BRACKET
  • 11
    0015050103 HH COLLAR SCREW M 5X10
    HH COLLAR SCREW M 5X10
  • 12
    59439032100 WIRING HARNESS FOR CDI EXC
    WIRING HARNESS FOR CDI EXC
  • 13
    0015050253 HH COLLAR SCREW M 5X25
    HH COLLAR SCREW M 5X25
  • 14
    0770220020 O-RING 22,00X2,00 B70
    O-RING 22,00X2,00 B70
  • 15
    6003009400030 SCREW PLUG M24X1,5 PA 6.6
    SCREW PLUG M24X1,5 PA 6.6
  • 16
    59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B
    IGNITIONCOIL KOKUSAN 4K3-A/B
  • 29
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 30
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 33
    0912050253 AH SCREW DIN0912-M 5X25
    AH SCREW DIN0912-M 5X25
  • 35
    0024060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 36
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 37
    77340097100 RETAINING PLATE F.PICKUPCABEL
    RETAINING PLATE F.PICKUPCABEL
  • 38
    0015060163 HH COLLAR SCREW M 6X16
    HH COLLAR SCREW M 6X16
