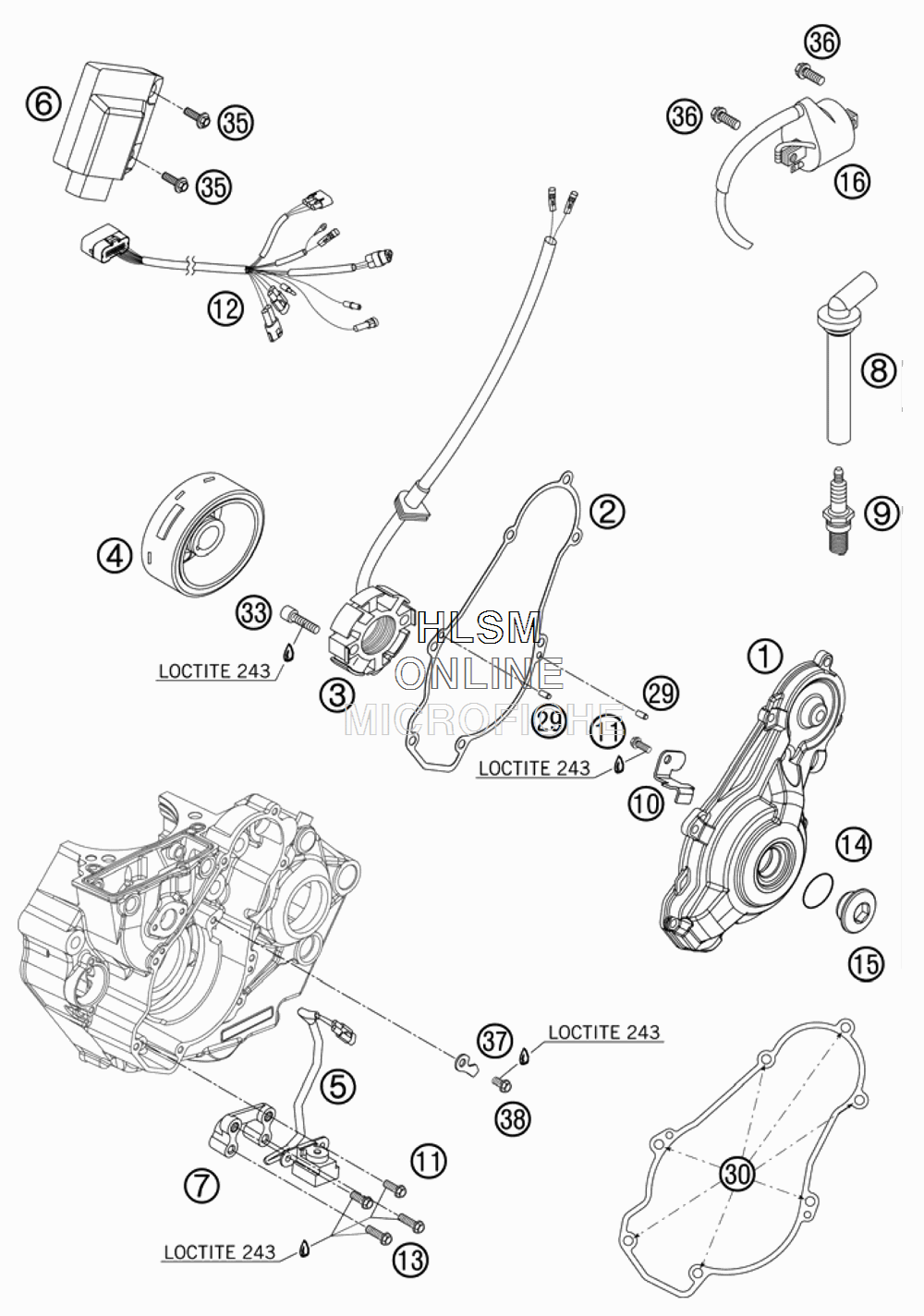

IGNITION SYSTEM для Ktm 505 SX-F - 2008 года выпуска
-
№АртикулНазвание
-
177330002100 IGNITION COVERIGNITION COVER
-
277330040100 IGNITION COVER GASKETIGNITION COVER GASKET
-
377339004000 STATOR SXSTATOR SX
-
477039005000 FLYWHEELFLYWHEEL
-
577339034000 PULSER COIL KOKUSAN ''PU5165''PULSER COIL KOKUSAN ''PU5165''
-
677639031000 CDI UNIT KOKUSANCDI UNIT KOKUSAN
-
777339035100 ADAPTER PULSER COILADAPTER PULSER COIL
-
877339090000 SPARK PLUG NGK-XD05EMGKSPARK PLUG NGK-XD05EMGK
-
977039093000 SPARK PLUG NGK CR9EKBSPARK PLUG NGK CR9EKB
-
1077330002050 WIRE RETAINING BRACKETWIRE RETAINING BRACKET
-
110015050103 HH COLLAR SCREW M 5X10HH COLLAR SCREW M 5X10
-
1259439032100 WIRING HARNESS FOR CDI EXCWIRING HARNESS FOR CDI EXC
-
130015050253 HH COLLAR SCREW M 5X25HH COLLAR SCREW M 5X25
-
140770220020 O-RING 22,00X2,00 B70O-RING 22,00X2,00 B70
-
156003009400030 SCREW PLUG M24X1,5 PA 6.6SCREW PLUG M24X1,5 PA 6.6
-
1659039006000 IGNITIONCOIL KOKUSAN 4K3-A/BIGNITIONCOIL KOKUSAN 4K3-A/B
-
290402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
300015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
330912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
350024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
360025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
3777340097100 RETAINING PLATE F.PICKUPCABELRETAINING PLATE F.PICKUPCABEL
-
380015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
