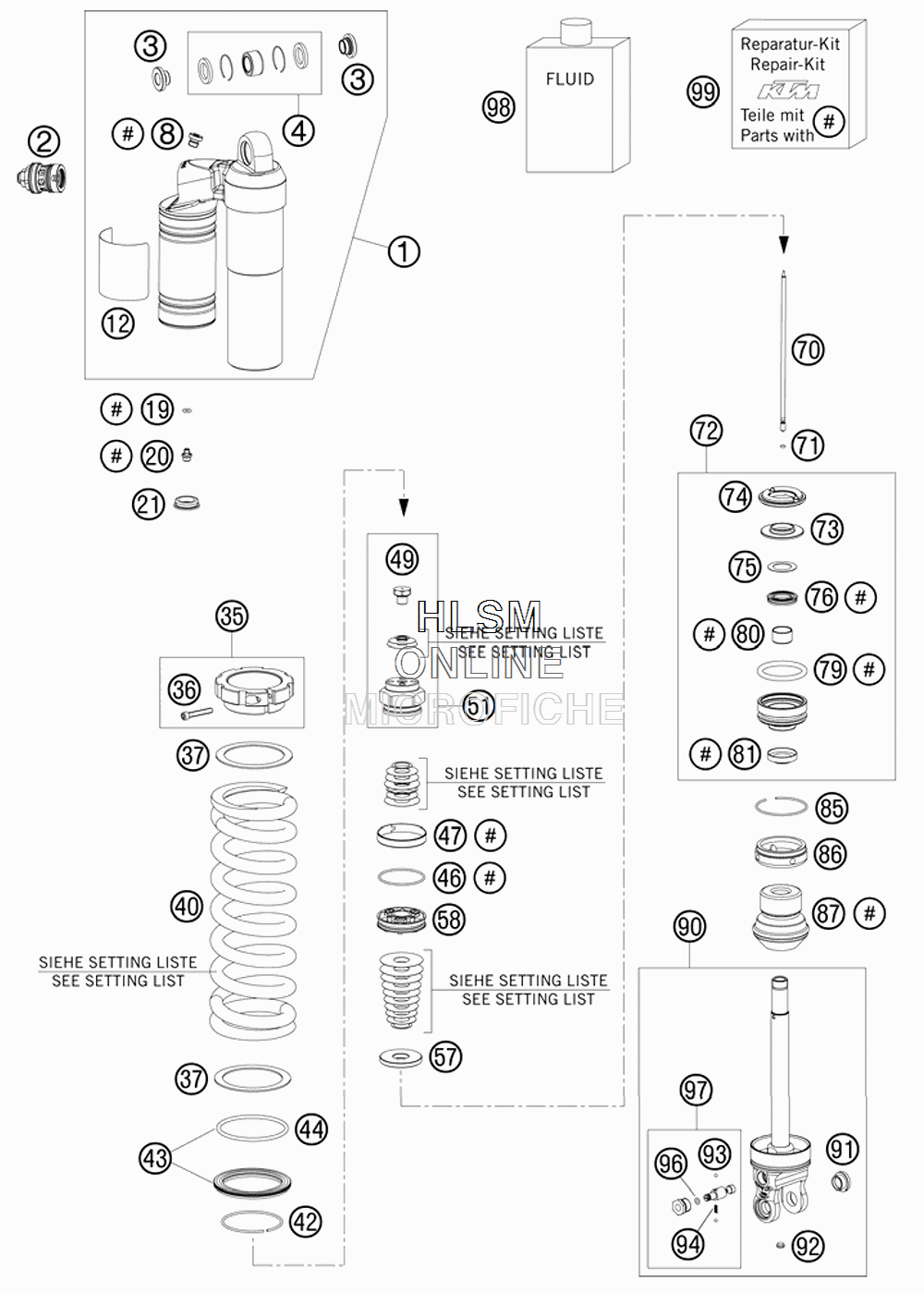

MONOSHOCK DISASSEMBLED для Ktm 450 SMR - 2008 года выпуска`

№

Артикул

Название
1

50180597S3 TOP PART CPL. M57,5X1 H30,5

TOP PART CPL. M57,5X1 H30,5

0 ₽
2

50180213S4 DCC-COMPR.DAMP.CONTROL CPL.

DCC-COMPR.DAMP.CONTROL CPL.

0 ₽
3

46180007 ADAPTOR BUSH KGW 12X24

ADAPTOR BUSH KGW 12X24

4 650 ₽
4

R12012 REP. KIT BEAR./SEAL UP.

REP. KIT BEAR./SEAL UP.

16 860 ₽
8

50180095 BLEED PLUG R 1/8

BLEED PLUG R 1/8

990 ₽
12

52000041 WP CAUTION (PDS KTM) 58X83

WP CAUTION (PDS KTM) 58X83

4 510 ₽
19

46810893 O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

140 ₽
20

36120151 SCREW PLUG M5X6

SCREW PLUG M5X6

2 840 ₽
21

46811208 RUBBER CAP "DO NOT OPEN"

RUBBER CAP "DO NOT OPEN"

540 ₽
35

50180520S SPRING RETAINER M57,5X1 +SCREW

SPRING RETAINER M57,5X1 +SCREW

42 250 ₽
36

50180327 AH SCREW M5X30 DIN912

AH SCREW M5X30 DIN912

790 ₽
37

50180114 SPACER RING FOR SPRING

SPACER RING FOR SPRING

550 ₽
40

91210070S SPRING 250 76N/MM

SPRING 250 76N/MM

40 810 ₽
40

91210072S SPRING 250 80 N/MM

SPRING 250 80 N/MM

37 790 ₽
40

91210073S SPRING 250 84 N/MM

SPRING 250 84 N/MM

37 790 ₽
42

50180273 CIRCLIP 58,2X2

CIRCLIP 58,2X2

440 ₽
43

50180463S SPRING RET. D=80 W. O-RING

SPRING RET. D=80 W. O-RING

8 890 ₽
44

50180352 O-RING VITON 66,27X3,53

O-RING VITON 66,27X3,53

520 ₽
46

50180099 O-RING VITON 44,17X1,78

O-RING VITON 44,17X1,78

310 ₽
47

50180135 PISTON RING 50-8

PISTON RING 50-8

2 800 ₽
49

46180056 BLEED SCREW M6

BLEED SCREW M6

2 920 ₽
51

50180616S PISTON ROD NUT M16X1 CPL.

PISTON ROD NUT M16X1 CPL.

0 ₽
57

50180196 REBOUND DISC D=34, H=8

REBOUND DISC D=34, H=8

18 570 ₽
58

50180197 PISTON 6+6X7/4,5

PISTON 6+6X7/4,5

11 850 ₽
70

50180513 NEEDLE L=171

NEEDLE L=171

3 100 ₽
71

46811265 O-RING VITON 2,2X1,6

O-RING VITON 2,2X1,6

30 ₽
72

50180603S ADAPTOR CPL. D=50 H=28

ADAPTOR CPL. D=50 H=28

20 230 ₽
73

50180113 STEEL DISC 18X,5X43,7X6

STEEL DISC 18X,5X43,7X6

6 960 ₽
74

50180107 REBOUND RUBBER

REBOUND RUBBER

1 060 ₽
75

50180604 SHIM D29,75 X D19 X T0,4

SHIM D29,75 X D19 X T0,4

370 ₽
76

50180605S SEAL D18X30X5

SEAL D18X30X5

11 040 ₽
79

50180103 O-RING 41X5

O-RING 41X5

110 ₽
80

46180119 DU-BUSH 18X20X12

DU-BUSH 18X20X12

1 450 ₽
81

50180606 DUST SEAL 1828

DUST SEAL 1828

1 590 ₽
85

50180126 CIRCLIP 53X1,75

CIRCLIP 53X1,75

190 ₽
86

50180511 COVER D=50

COVER D=50

9 720 ₽
87

50180480 BUMP RUBBER D58 D17 H59 SXS

BUMP RUBBER D58 D17 H59 SXS

4 680 ₽
90

50180512S1 MONOSHOCK LOWER PART CPL.

MONOSHOCK LOWER PART CPL.

170 ₽
91

50180105 THREADED BUSH M12 PDS

THREADED BUSH M12 PDS

4 180 ₽
92

50180297 RUBBER PLUG D=8

RUBBER PLUG D=8

630 ₽
93

40540603 STEEL BALL D=3MM

STEEL BALL D=3MM

60 ₽
94

48600028 SPRING D=2,9 L=7,9

SPRING D=2,9 L=7,9

660 ₽
96

50180222 O-RING NBR 4X1,5

O-RING NBR 4X1,5

60 ₽
97

50180434S ADJUSTING SCREW REBOUND TRAVEL

ADJUSTING SCREW REBOUND TRAVEL

7 590 ₽
98

50180342S1 SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

53 390 ₽
99

R12014 REPAIR KIT 5018 PDS

REPAIR KIT 5018 PDS

42 970 ₽
