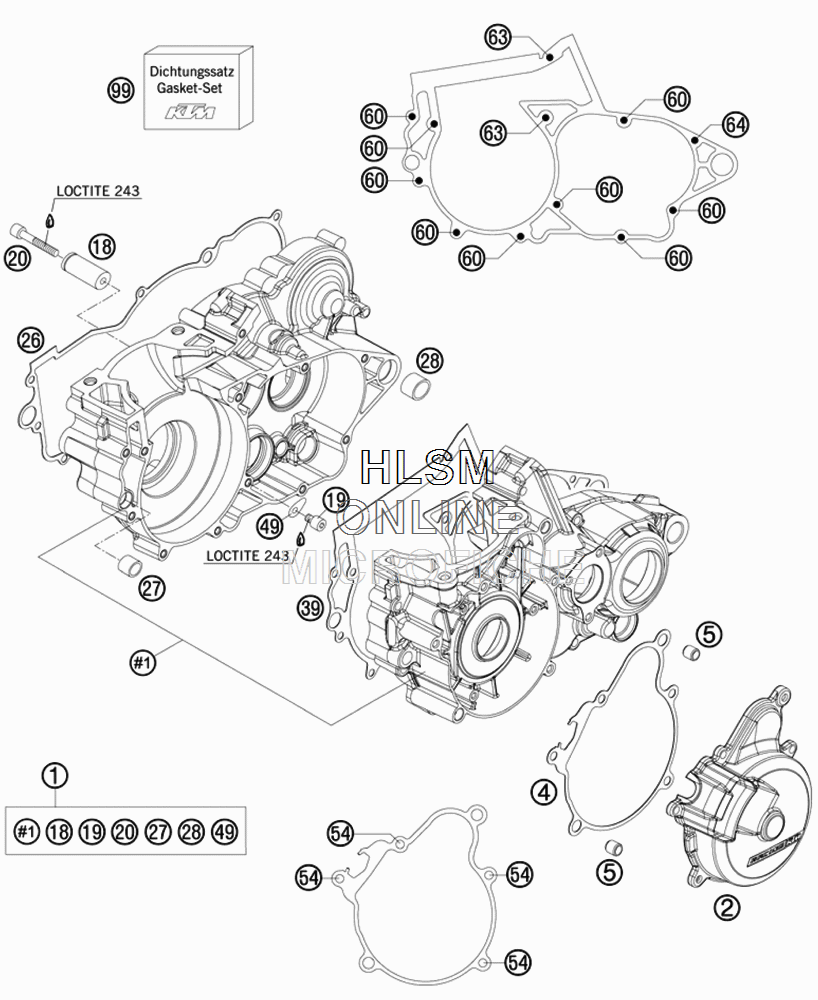

ENGINE CASE для Ktm 300 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1*
    55130000144 ENGINE CASE CPL.
    ENGINE CASE CPL.
  • 2*
    55130102000 IGNITION COVER
    IGNITION COVER
  • 4*
    55130040000 IGNITI.COVER GASKET
    IGNITI.COVER GASKET
  • 5*
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 18
    59033018000 BUSHING PIN 2000
    BUSHING PIN 2000
  • 19
    0912060083 AH SCREW DIN0912-M 6X 8
    AH SCREW DIN0912-M 6X 8
  • 20
    0912060404 AH SCREW DIN0912-M 6X40 A2
    AH SCREW DIN0912-M 6X40 A2
  • 26
    54830024000 CLUTCH COVER GASKET 2003
    CLUTCH COVER GASKET 2003
  • 27
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 28
    54830027000 DOWEL 21X12
    DOWEL 21X12
  • 39
    54830039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 49
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 54*
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 60
    0015060403 HH COLLAR SCREW M 6X40 WS=8
    HH COLLAR SCREW M 6X40 WS=8
  • 63
    0015060553 HH COLLAR SCREW M 6X55 WS=8
    HH COLLAR SCREW M 6X55 WS=8
  • 64
    0015060603 HH COLLAR SCREW M 6X60 WS=8
    HH COLLAR SCREW M 6X60 WS=8
  • 99*
    55130099000 GASKET SET
    GASKET SET
