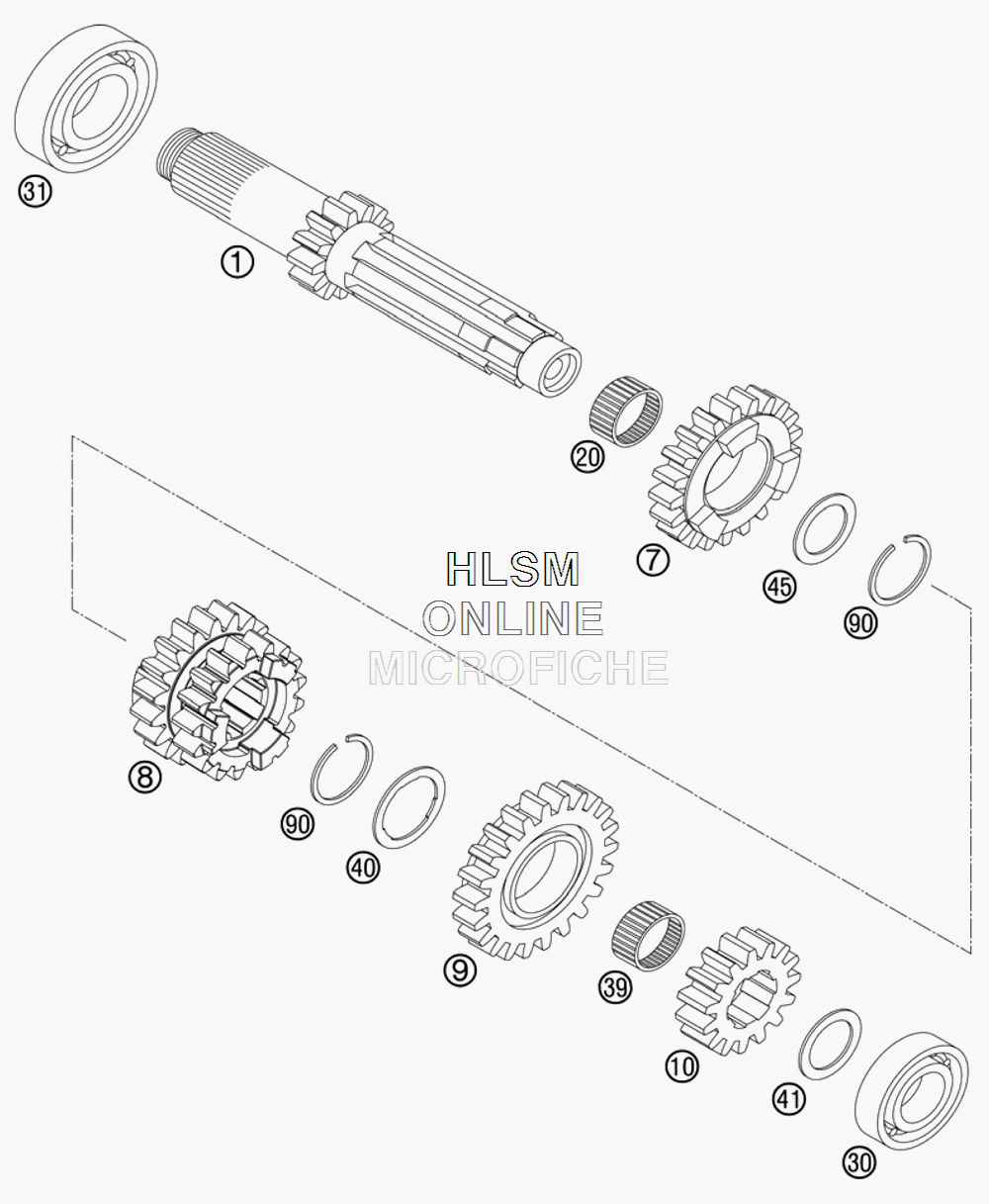

TRANSMISSION - MAIN SHAFT для Ktm 250 XCF-W - 2008 года выпуска`
-
№АртикулНазвание
-
177033001000 MAIN SHAFT CPL.MAIN SHAFT CPL.
-
777033005000 IDLER G.5TH G.21-TIDLER G.5TH G.21-T
-
877033003000 SLIDING GEAR 3/4 GEAR 17/19-TSLIDING GEAR 3/4 GEAR 17/19-T
-
977033006000 IDLER G.6TH G.22-TIDLER G.6TH G.22-T
-
1077033002000 SOLID GEAR 2ND G.15-TSOLID GEAR 2ND G.15-T
-
200405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
300625160032 GROOVED BALL BEARING 16003 ZGROOVED BALL BEARING 16003 Z
-
310625060042 BALL BEARING 6004 TN9 C4BALL BEARING 6004 TN9 C4
-
3950133099000 NEEDLE CAGE K18X22X10 PARTEDNEEDLE CAGE K18X22X10 PARTED
-
4077033021000 STOP DISCSTOP DISC
-
4150333030000 STOP DISK 17,2X24X1STOP DISK 17,2X24X1
-
4577033020000 STOP GEAR 22X28.5X1STOP GEAR 22X28.5X1
-
9050133090000 LOCK RING 22X1,2LOCK RING 22X1,2
