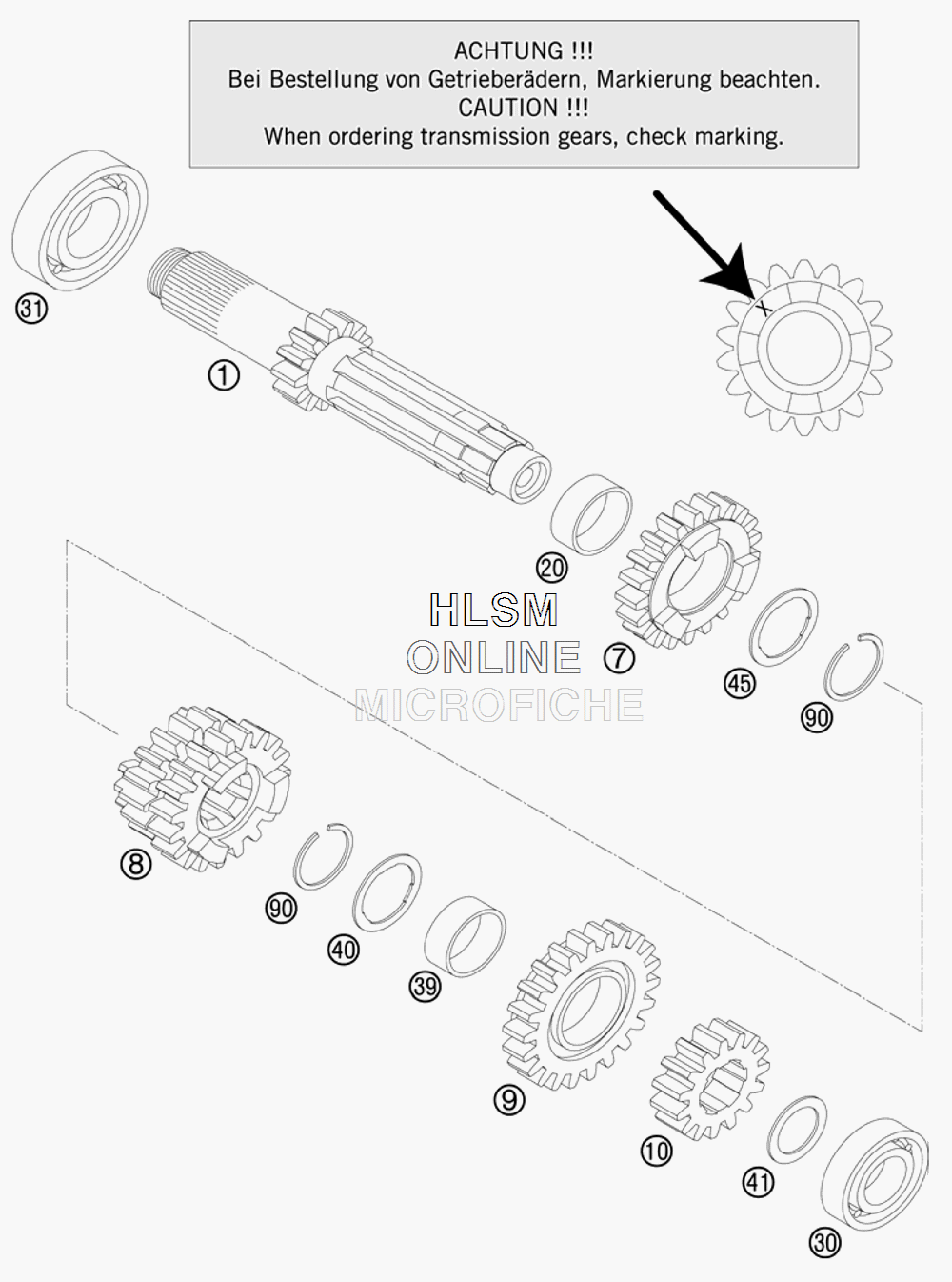

TRANSMISSION - MAIN SHAFT для Ktm 144 SX - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    50333001044 MAIN SHAFT CPL. 13-T
    MAIN SHAFT CPL. 13-T
  • 7
    50333007100 IDLE GEAR 5.G. 5S19H SX
    IDLE GEAR 5.G. 5S19H SX
  • 8
    50333008200 SLIDING GEAR 3./4. G. SX;''3S17H''-''4S20H''
    SLIDING GEAR 3./4. G. SX;''3S17H''-''4S20H''
  • 9
    50333009500 IDLE GEAR 6TH G. 6S22H SX
    IDLE GEAR 6TH G. 6S22H SX
  • 10
    50333010100 SOLID GEAR 2ND G.15-T''2S15''
    SOLID GEAR 2ND G.15-T''2S15''
  • 20
    50333020000 IDLER GEAR BUSH. 22X25X11,1 A
    IDLER GEAR BUSH. 22X25X11,1 A
  • 30
    0625160031 GROOVED BALL B. 16003 C4 J1
    GROOVED BALL B. 16003 C4 J1
  • 31
    0625060042 BALL BEARING 6004 TN9 C4
    BALL BEARING 6004 TN9 C4
  • 39
    50333020000 IDLER GEAR BUSH. 22X25X11,1 A
    IDLER GEAR BUSH. 22X25X11,1 A
  • 40
    50333040000 STOP DISC 22,2X27,8X1 A
    STOP DISC 22,2X27,8X1 A
  • 41
    50333041000 STOP DISC 17,2X26X1 B
    STOP DISC 17,2X26X1 B
  • 45
    50333045000 STOP DISK 22,2X27,8X1
    STOP DISK 22,2X27,8X1
  • 90
    50133090000 LOCK RING 22X1,2
    LOCK RING 22X1,2
