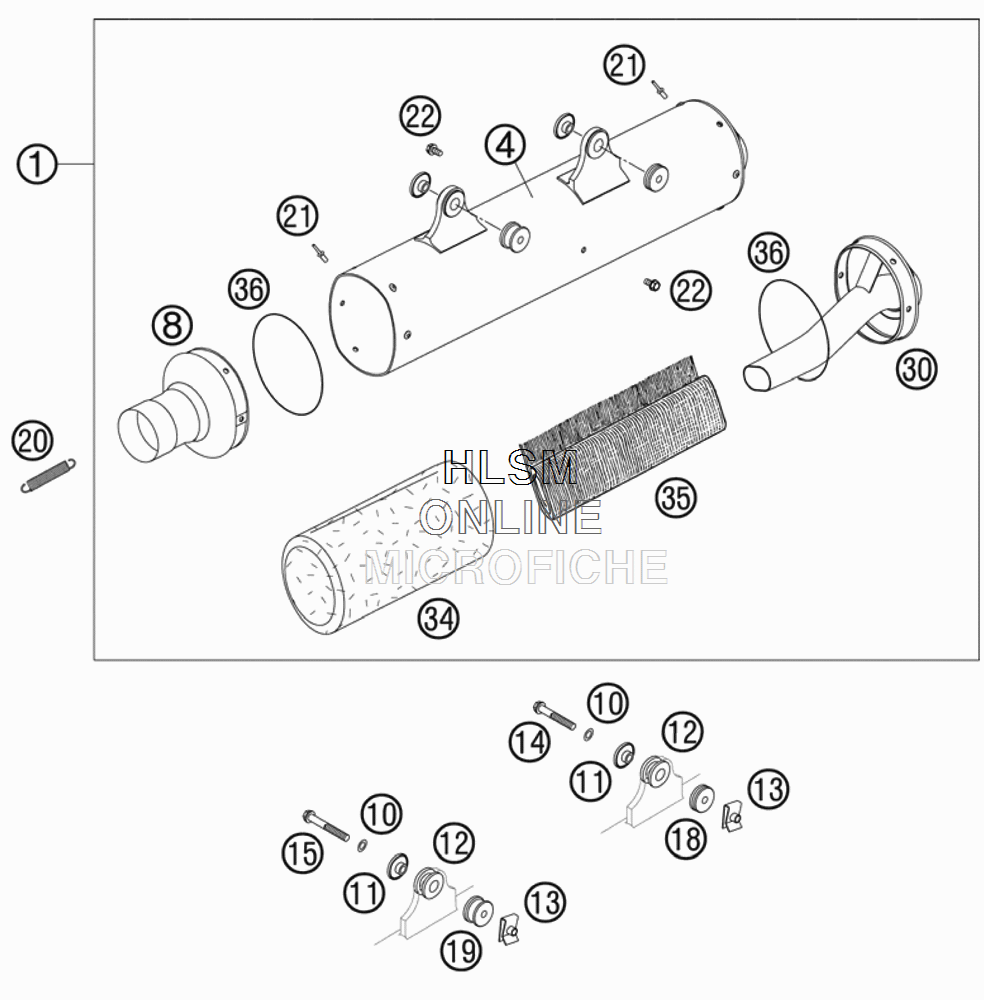

SILENCER для Ktm 560 SMR - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    59405079200 EXHAUST SILENCER
    EXHAUST SILENCER
  • 4
    59005081550 SILENCER HOUSING EXC
    SILENCER HOUSING EXC
  • 8
    59405079009 SILENCENER CONNECT. CAP CPL.
    SILENCENER CONNECT. CAP CPL.
  • 10
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 11
    54605069000 BUSHING 7,5X12X28X7,8
    BUSHING 7,5X12X28X7,8
  • 12
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
  • 13
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 14
    0015060403 HH COLLAR SCREW M 6X40 WS=8
    HH COLLAR SCREW M 6X40 WS=8
  • 15
    0015060453 HH COLLAR SCREW M 6X45 WS=8
    HH COLLAR SCREW M 6X45 WS=8
  • 18
    59405169000 BUSHING SIL.-SMR REAR
    BUSHING SIL.-SMR REAR
  • 19
    59405269000 BUSHING SIL.-SMR FRONT
    BUSHING SIL.-SMR FRONT
  • 20
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 21*
    0011480800 DUMMY RIVET 4,8X 8 NIRO
    DUMMY RIVET 4,8X 8 NIRO
  • 22
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 30
    59005081606 ENDCAP EXC CPL. UNTHROTTLED
    ENDCAP EXC CPL. UNTHROTTLED
  • 34
    58705078350 STUFFINGYARN 350 GRAMM
    STUFFINGYARN 350 GRAMM
  • 35
    59005078076 STUFFING YARN 560X340X76G
    STUFFING YARN 560X340X76G
  • 36
    0770740015 O-RING 74,00X1,50 FKM 75SH
    O-RING 74,00X1,50 FKM 75SH
