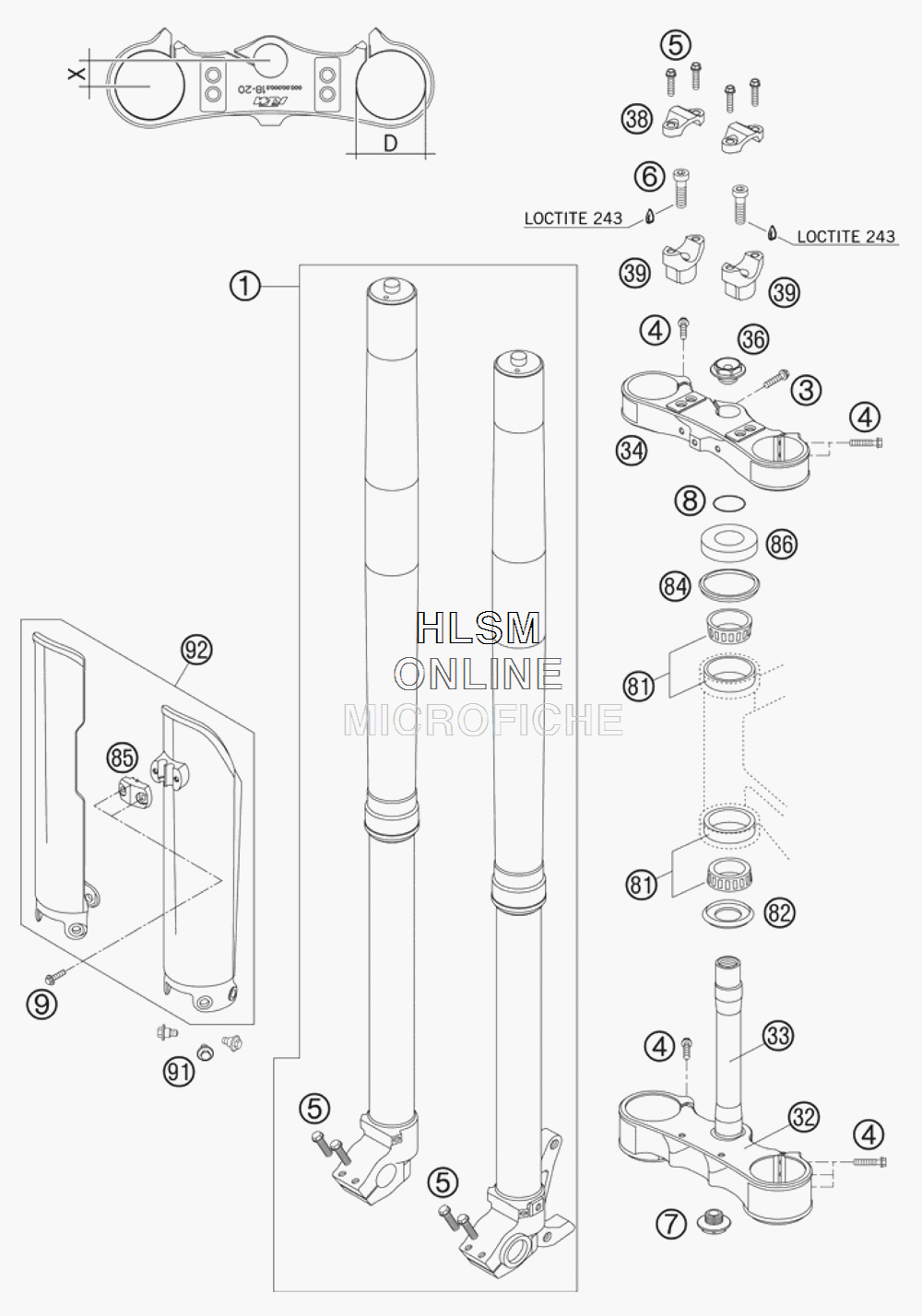

TELESCOPIC FORK для Ktm 525 XC - 2007 года выпуска`

№

Артикул

Название
1

14187C29 FORK WP D48 450XC450-525SD

FORK WP D48 450XC450-525SD

0 ₽
3

0015080256S HH COLLAR SCREW M8X25 WS=10

HH COLLAR SCREW M8X25 WS=10

590 ₽
4

0015080353 HH COLLAR SCREW M 8X35 WS=10

HH COLLAR SCREW M 8X35 WS=10

410 ₽
5

0015080253 HH COLLAR SCREW M 8X25 WS=10

HH COLLAR SCREW M 8X25 WS=10

300 ₽
6

0912100356 AH SCREW DIN 6912-M10X35 10.9

AH SCREW DIN 6912-M10X35 10.9

880 ₽
7

54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL SELF-LOCKING

STE.HEAD SCR. M20X1,5 WS=27 SL SELF-LOCKING

3 390 ₽
8

0770025035 O-RING 25X3,55 N BR70

O-RING 25X3,55 N BR70

150 ₽
9

0017060204 EJOT PT SCREW K60X20 ALU WS=6

EJOT PT SCREW K60X20 ALU WS=6

740 ₽
32

59401031019 BOTTOM TRIPLE CLAMP D=60MM

BOTTOM TRIPLE CLAMP D=60MM

68 450 ₽
33

59401033000 FORK TUBE L= 237MM

FORK TUBE L= 237MM

22 460 ₽
34

59401034019 TOP TRIPLE CLAMP D=54MM

TOP TRIPLE CLAMP D=54MM

58 380 ₽
36

54801036000 STEER.HEAD SCREW M20X1,5 WS=27

STEER.HEAD SCREW M20X1,5 WS=27

2 840 ₽
38

59401038000 HANDLEBAR CLAMP 28MM

HANDLEBAR CLAMP 28MM

6 750 ₽
39

59401039032 HANDLEB.SUPP. D=28MM H=32MM

HANDLEB.SUPP. D=28MM H=32MM

9 840 ₽
39

59401039037 HANDLEB.SUPP. D=28MM H=37MM

HANDLEB.SUPP. D=28MM H=37MM

9 230 ₽
39

59401039042 HANDLEB.SUPP. D=28MM H=42MM

HANDLEB.SUPP. D=28MM H=42MM

9 790 ₽
81

54201081100 TAPERED ROLLER BEARING CPL.

TAPERED ROLLER BEARING CPL.

13 380 ₽
82

54601084100 O-RING SUPPORT W. SEALING LIP

O-RING SUPPORT W. SEALING LIP

4 940 ₽
84

54601184000 STEARING HEAD GASKET TOP

STEARING HEAD GASKET TOP

1 900 ₽
85

5900108510004 CLAMP F.SPEED .CABLE ORANGE

CLAMP F.SPEED .CABLE ORANGE

470 ₽
86

54201086000 STEERING HEAD COVER

STEERING HEAD COVER

2 270 ₽
91

59001092050 SPECIAL SCREW M6X12,5 WS=8

SPECIAL SCREW M6X12,5 WS=8

410 ₽
92

5900109400004 FORK PROT. L/S + R/S ORG

FORK PROT. L/S + R/S ORG

9 190 ₽
