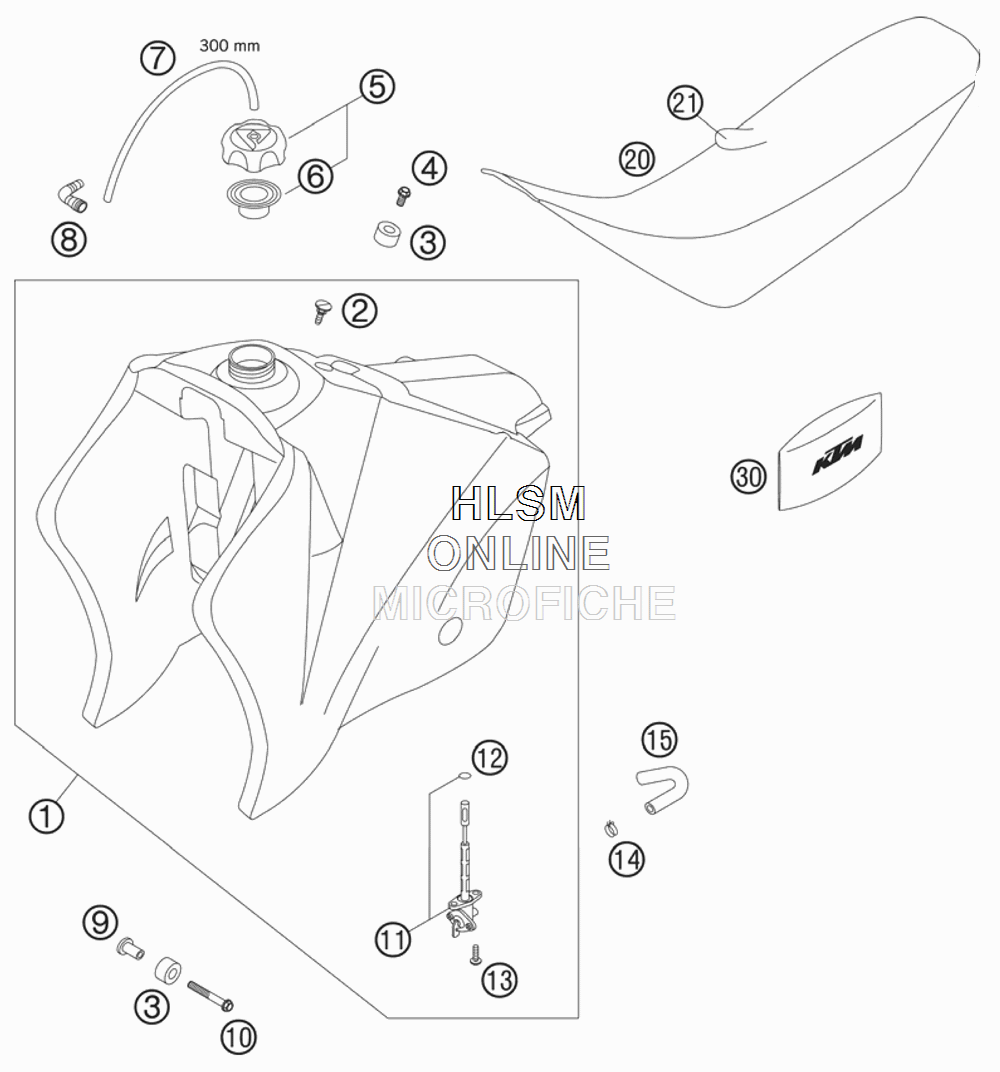

FUEL TANK - SEAT для Ktm 525 XC - 2007 года выпуска`
-
№АртикулНазвание
-
15900701320004A FUEL TANK CPL. 13L ORANGE 06FUEL TANK CPL. 13L ORANGE 06
-
250307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
350307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
40015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
559007008044 FILLER CAP CPL. WITH VALVEFILLER CAP CPL. WITH VALVE
-
659007009000 GASKET FOR FILLER CAP HIGHGASKET FOR FILLER CAP HIGH
-
731007107001 PVC-HOSE 6X9 MM PER METERPVC-HOSE 6X9 MM PER METER
-
851030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
959003001055 SUPORT BUSHING TANKROLLERSUPORT BUSHING TANKROLLER
-
100015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
1158307105200 FUEL COCK CPL. OFF-ON-RESFUEL COCK CPL. OFF-ON-RES
-
120770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
130017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
1458031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
1559007016000 FUEL HOSE 7,5X13MMFUEL HOSE 7,5X13MM
-
2059407040100 SEAT MXC WITHOUT KTM-LOGOSEAT MXC WITHOUT KTM-LOGO
-
2159407040150 S.COVER MXC WITHOUT KTM-LOG.S.COVER MXC WITHOUT KTM-LOG.
-
3077029099100 TOOL KITTOOL KIT
