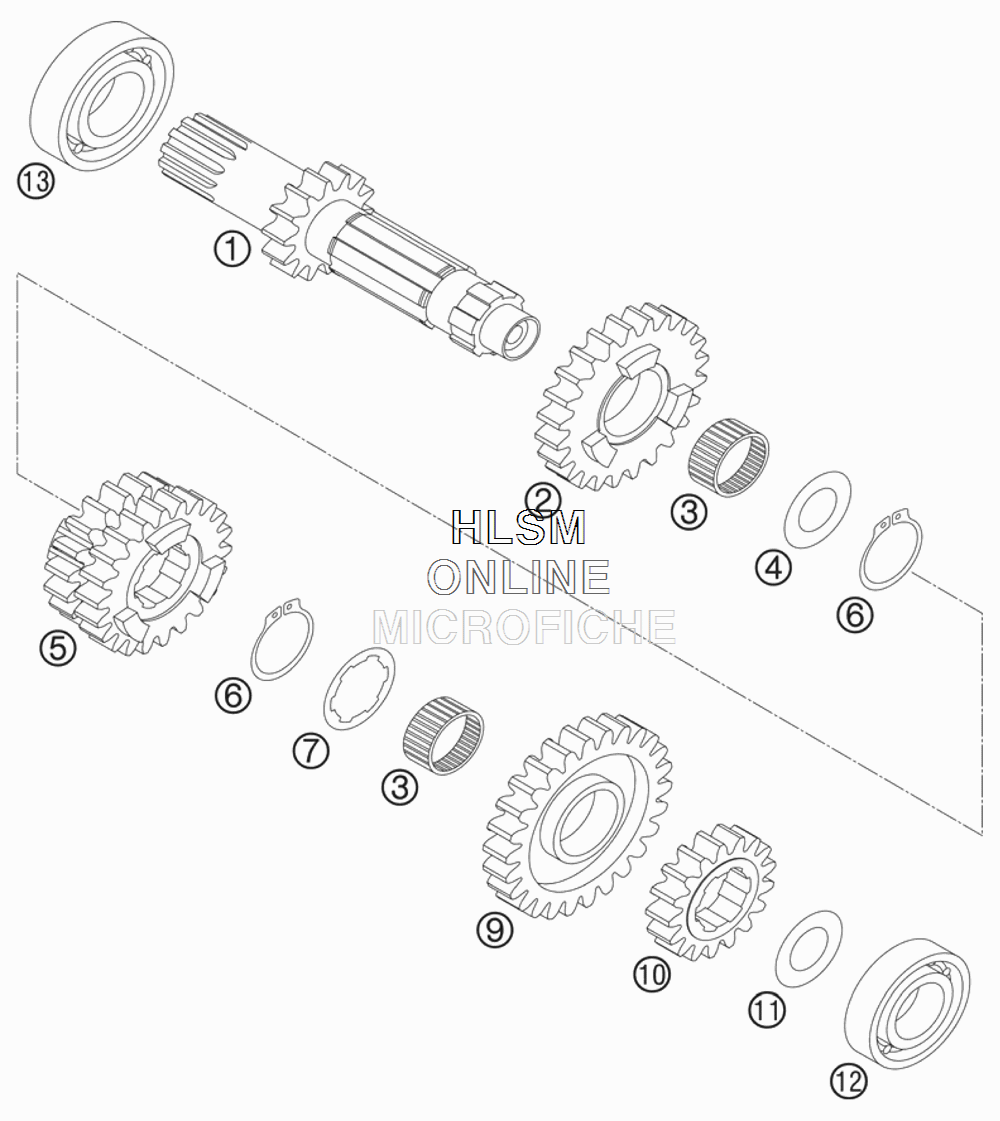

TRANSMISSION - MAIN SHAFT для Ktm 450 XC - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    59033001300 MAIN SHAFT-ZB 16-T SX
    MAIN SHAFT-ZB 16-T SX
  • 2
    59033005039 IDLER GEAR 5.G 24-T "39"
    IDLER GEAR 5.G 24-T "39"
  • 3
    0405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 4
    59033031000 STOP DISC 25,2X32X1,5
    STOP DISC 25,2X32X1,5
  • 5
    59033003046 SLIDING GEAR 3/4.G 20/22-T"46"
    SLIDING GEAR 3/4.G 20/22-T"46"
  • 6
    0471250120 CIRCLIP DIN0471-25X1,2
    CIRCLIP DIN0471-25X1,2
  • 7
    59033030000 STOP DISC 25,2X32X1,5
    STOP DISC 25,2X32X1,5
  • 9
    59033006045 IDLER GEAR 6.G 21-T "45"
    IDLER GEAR 6.G 21-T "45"
  • 10
    59033002037 SOLID GEAR 2.G 18-T "37"
    SOLID GEAR 2.G 18-T "37"
  • 11
    56033030000 STOP DISC 17,2X30X1
    STOP DISC 17,2X30X1
  • 12
    0625062035 BALL BEARING 6203 JR2 C3
    BALL BEARING 6203 JR2 C3
  • 13
    0625062054 BALL BEARING 6205 C3 NTN
    BALL BEARING 6205 C3 NTN
