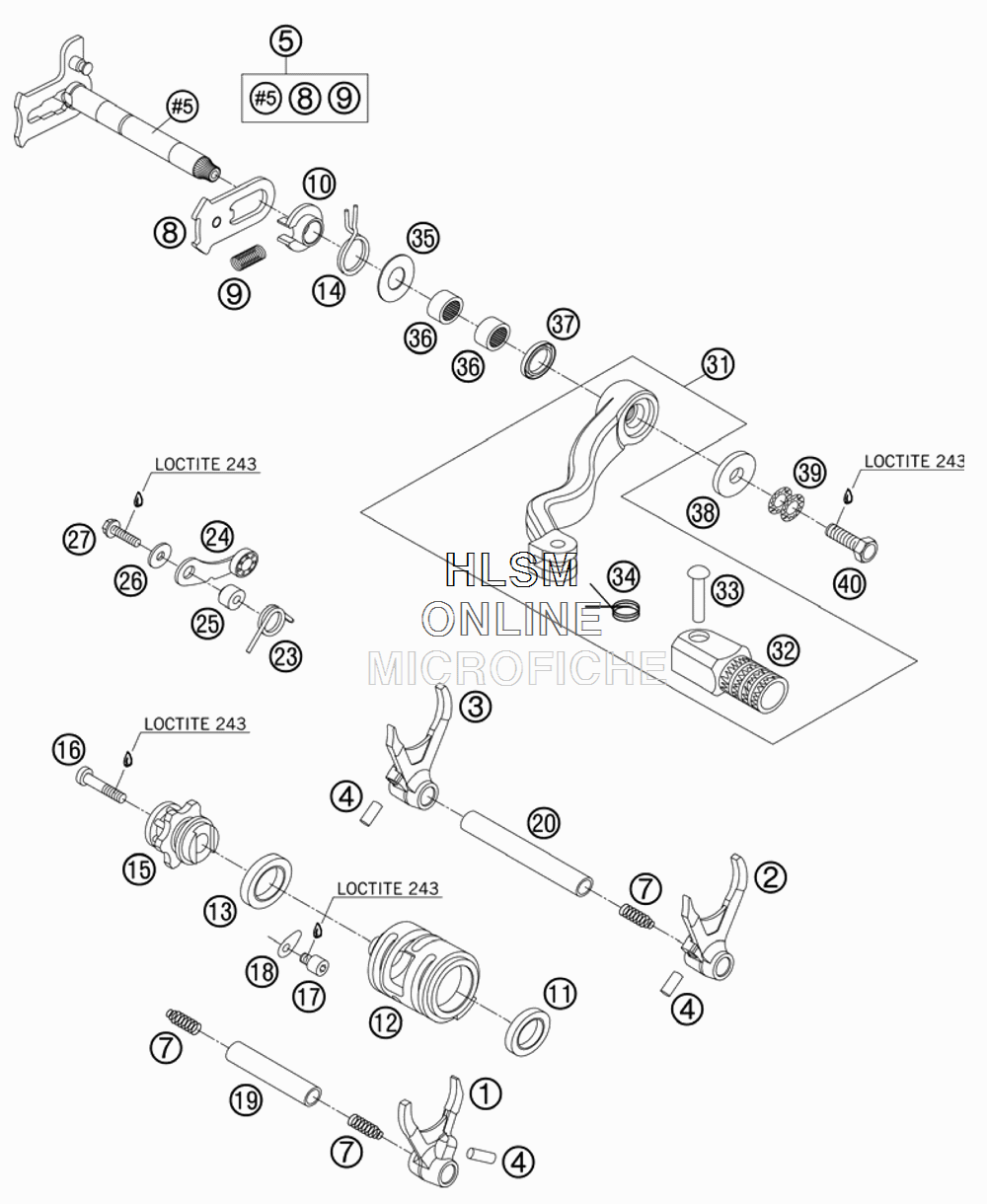

SHIFTING MECHANISM для Ktm 300 XC-W - 2007 года выпуска
-
№АртикулНазвание
-
154834001000 SHIFTING FORK 4TH/5TH GEARSHIFTING FORK 4TH/5TH GEAR
-
254834002000 SHIFTING FORK 2ND GEARSHIFTING FORK 2ND GEAR
-
354834003000 SHIFTING FORK 1ST/3RD GEARSHIFTING FORK 1ST/3RD GEAR
-
40402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
554834005044 SHIFTING SHAFT CPL.SHIFTING SHAFT CPL.
-
758038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
854634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1054634020000 SPRING GUIDESPRING GUIDE
-
110625069034 BALL BEARING 6903 C4BALL BEARING 6903 C4
-
1254834012000 SHIFT ROLLERSHIFT ROLLER
-
130625068050 BALL BEARING 6805 C4 NTN JAPANBALL BEARING 6805 C4 NTN JAPAN
-
1454834014000 RETURN SPRINGRETURN SPRING
-
1554834015000 SHIFT LOCATING DRUMSHIFT LOCATING DRUM
-
160984060302 AH SCREW DIN6912 M 6X30AH SCREW DIN6912 M 6X30
-
170912060083 AH SCREW DIN0912-M 6X 8AH SCREW DIN0912-M 6X 8
-
1854634049000 RETAINING PLATERETAINING PLATE
-
1954834019000 SHIFT. RAIL MAIN SHAFTSHIFT. RAIL MAIN SHAFT
-
2054834020000 SHIFT. RAIL C. SHAFTSHIFT. RAIL C. SHAFT
-
2354834023000 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
2450334024044 LOCATING LEVER CPL.LOCATING LEVER CPL.
