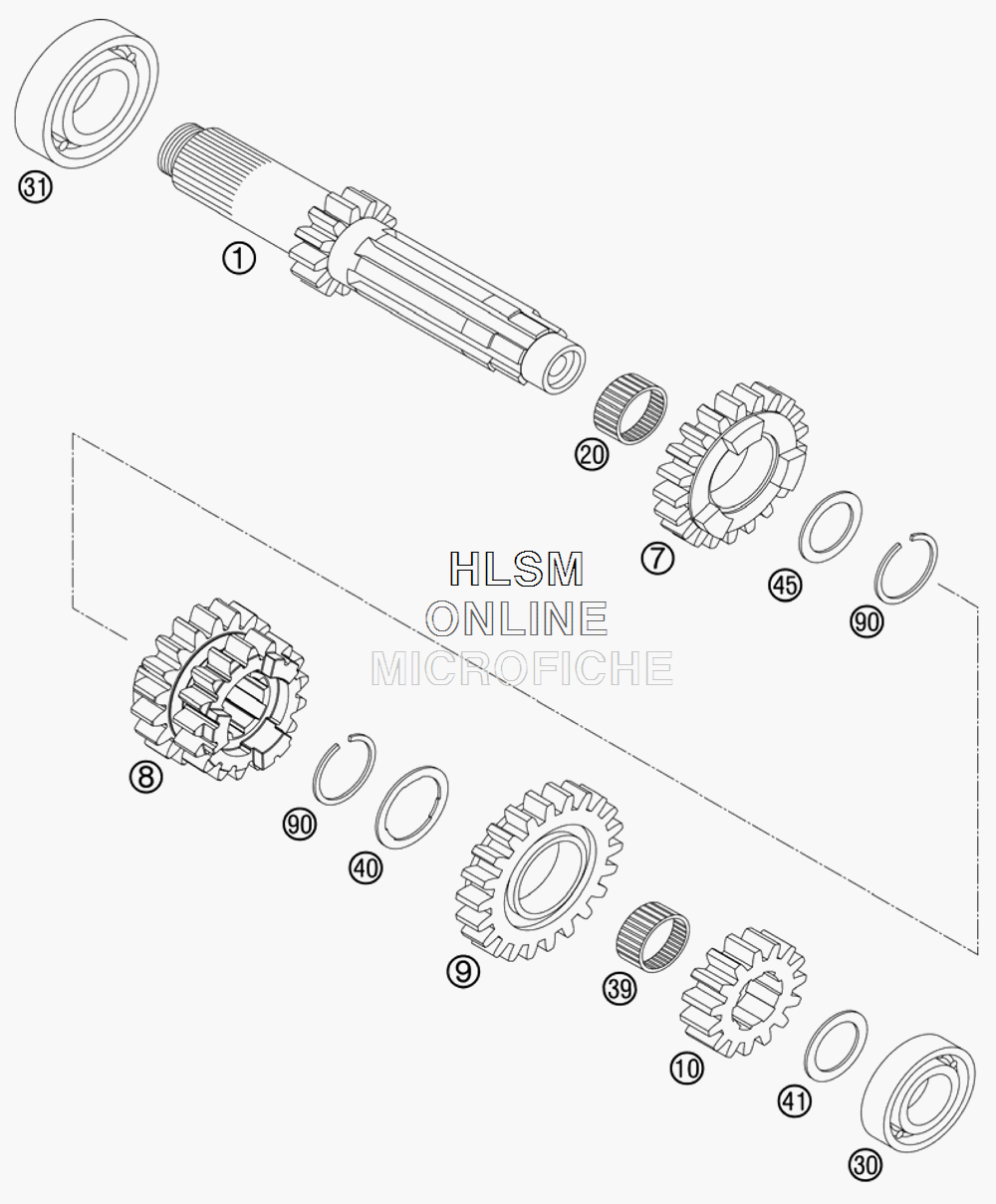

TRANSMISSION - MAINSHAFT для Ktm 250 XC-F - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    77033001100 MAIN SHAFT CPL. T=13 "C13"
    MAIN SHAFT CPL. T=13 "C13"
  • 7
    77033005100 IDLER G.5TH G.21-T "5C21"
    IDLER G.5TH G.21-T "5C21"
  • 8
    77033003100 SLIDING GEAR 3/4. GEAR 17/19-T
    SLIDING GEAR 3/4. GEAR 17/19-T
  • 9
    77033006100 IDLER G.6TH G.22-T "6C22"
    IDLER G.6TH G.22-T "6C22"
  • 10
    77033002100 SOLID GEAR 2ND G.15-T"2C15"
    SOLID GEAR 2ND G.15-T"2C15"
  • 20
    0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED
    NEEDLE BEAR.K 22X26X10 DIVIDED
  • 30
    0625160030 GROOVED BALL BEARING 16003 C3
    GROOVED BALL BEARING 16003 C3
  • 31
    0625060042 BALL BEARING 6004 TN9 C4
    BALL BEARING 6004 TN9 C4
  • 39
    50133099000 NEEDLE CAGE K18X22X10 PARTED
    NEEDLE CAGE K18X22X10 PARTED
  • 40
    77033021000 STOP DISC
    STOP DISC
  • 41
    50333030000 STOP DISK 17,2X24X1
    STOP DISK 17,2X24X1
  • 45
    77033020000 STOP GEAR 22X28.5X1
    STOP GEAR 22X28.5X1
  • 90
    50133090000 LOCK RING 22X1,2
    LOCK RING 22X1,2
