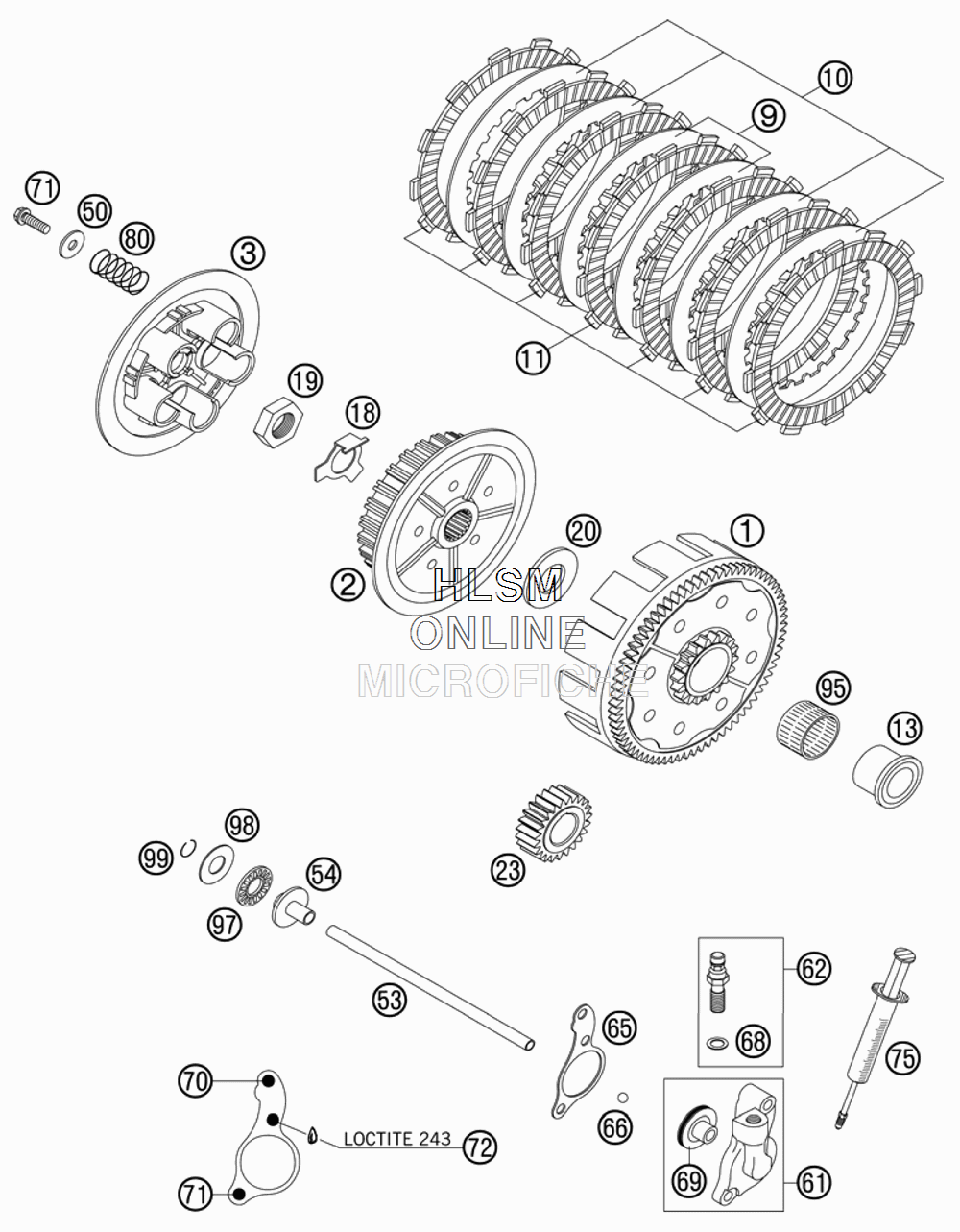

CLUTCH для Ktm 144 SX - 2007 года выпуска
-
№АртикулНазвание
-
150332000173 OUTHER CLUTCH 73-T 125/200 WITHOUTOUTHER CLUTCH 73-T 125/200 WITHOUT
-
250332002100 INNER CLUTCH HUB 125/200INNER CLUTCH HUB 125/200
-
350332003100 PRESSURE PLATE 1257200PRESSURE PLATE 1257200
-
950332010200 INTERMEDI. DISC STEEL 1,5MMINTERMEDI. DISC STEEL 1,5MM
-
1050332010300 INTERMEDIATE DISK ALU 1,5MMINTERMEDIATE DISK ALU 1,5MM
-
1150332011100 ORGANIC DISK 3MMORGANIC DISK 3MM
-
1350332013000 INNER RING 20X26X25,9INNER RING 20X26X25,9
-
1850332018000 SHEET METAL LOCK 1,5MMSHEET METAL LOCK 1,5MM
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2050332020000 STOP DISK 20X39,6X3STOP DISK 20X39,6X3
-
2350332023123 PRIMARY PINION 23-T 125/200PRIMARY PINION 23-T 125/200
-
5052332006100 STEPPED WASHERSTEPPED WASHER
-
5350332017300 PUSH ROD L=178 125/200PUSH ROD L=178 125/200
-
5450332054051 PRESSURE PIECE 125-380PRESSURE PIECE 125-380
-
6150332061044 CYLINDER CPL.CYLINDER CPL.
-
6250332062000 HOLLOW SCREW CPL. M 10X1HOLLOW SCREW CPL. M 10X1
-
6550332065051 CLUTCH RELEASE GASKET 0,3MMCLUTCH RELEASE GASKET 0,3MM
-
6550332065052 CLUTCH RELEASE GASKET 0,5MMCLUTCH RELEASE GASKET 0,5MM
-
6550332065053 CLUTCH RELEASE GASKET 0,75MMCLUTCH RELEASE GASKET 0,75MM
-
660401070003 BALL DIN5401-7BALL DIN5401-7
-
6842013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
6950332066000 PISTON W. O-RING 125/200PISTON W. O-RING 125/200
-
700015060403 HH COLLAR SCREW M 6X40HH COLLAR SCREW M 6X40
-
710015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
720015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8052332005100 CLUTCH SPRING 200CLUTCH SPRING 200
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
9854637098300 AXIAL WASHER 12,5X25,8X1,5AXIAL WASHER 12,5X25,8X1,5
-
990993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
