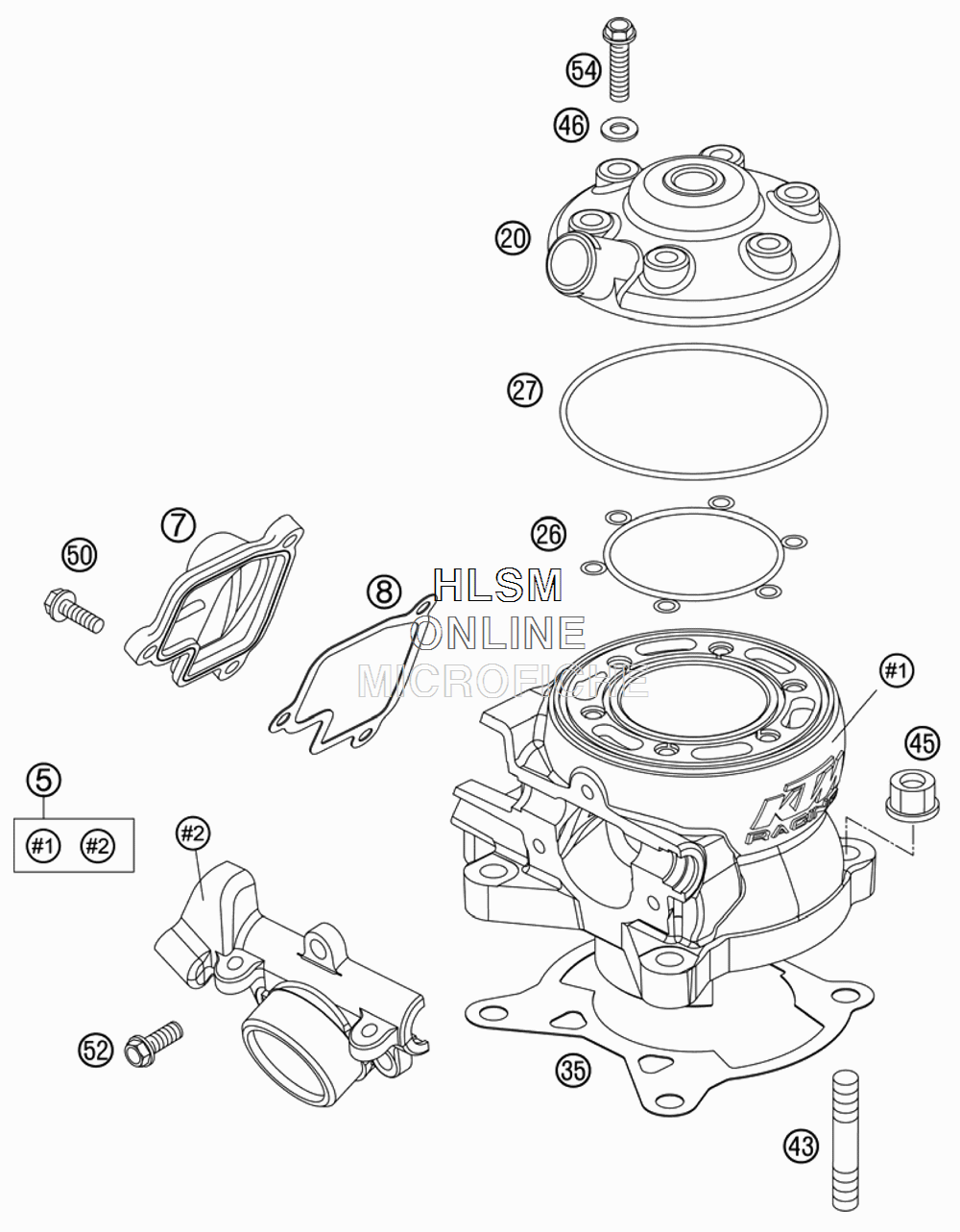

CYLINDER для Ktm 105 SX - 2007 года выпуска

  • №
    Артикул
    Название
  • 5
    47530005044 CYLINDER WITH FLANGE
    CYLINDER WITH FLANGE
  • 7
    47037007000 CONTROL COVER
    CONTROL COVER
  • 8
    47037008000 GASKET FOR CONTROL COVER
    GASKET FOR CONTROL COVER
  • 20
    47530006000 CYLINDER HEAD
    CYLINDER HEAD
  • 26
    47530037000 SEAL RING SILICONE
    SEAL RING SILICONE
  • 27
    0770820020 O-RING 82X2 SILICONE
    O-RING 82X2 SILICONE
  • 35
    47030035000 CYLINDER BASE GASKET 0,50MM
    CYLINDER BASE GASKET 0,50MM
  • 35
    47030035020 CYLINDER BASE GASKET 0,20MM
    CYLINDER BASE GASKET 0,20MM
  • 35
    47030035030 CYLINDER BASE GASKET 0,30MM
    CYLINDER BASE GASKET 0,30MM
  • 43
    0835080240 STUD DIN 0835-M 8X24
    STUD DIN 0835-M 8X24
  • 45
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 46
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 50
    0015050123 HH COLLAR SCREW M 5X12 WS=8
    HH COLLAR SCREW M 5X12 WS=8
  • 52
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 54
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
