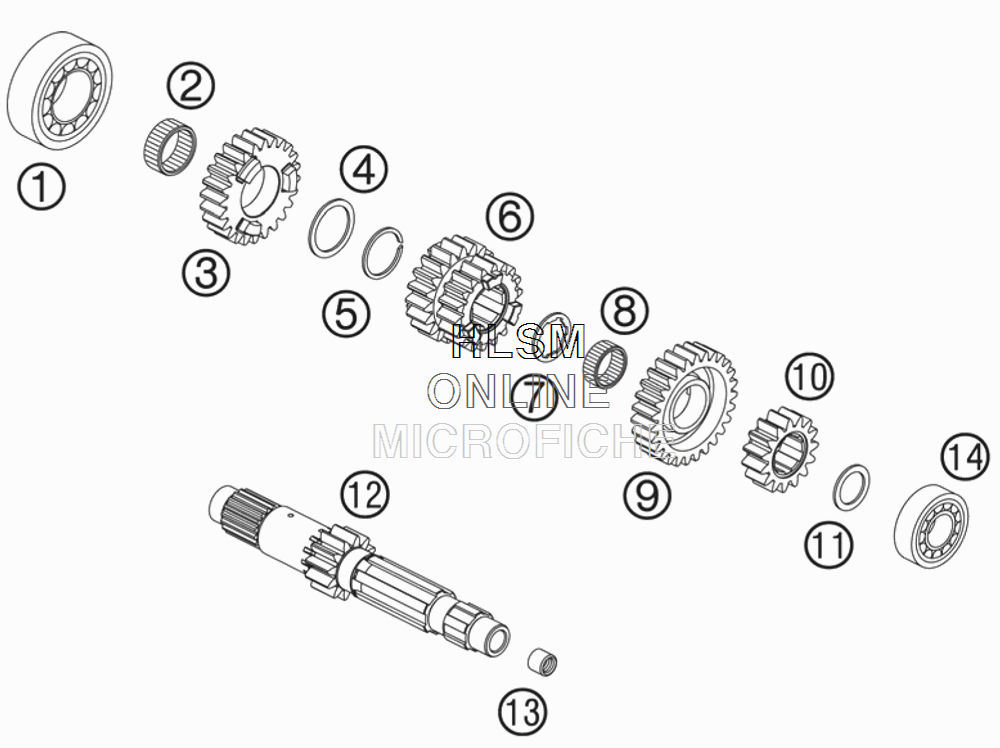

TRANSMISSION I - MAIN SHAFT для Ktm 990 Superduke Europe - 2006 года выпуска`
-
№АртикулНазвание
-
10625062062 BALL BEARING 6206 C3 J1 NSKBALL BEARING 6206 C3 J1 NSK
-
20405263113 NEEDLE BEAR. K 26-31-13NEEDLE BEAR. K 26-31-13
-
361033005000 IDLER 5. GEARIDLER 5. GEAR
-
460033042000 STOP DISK 28,3/35,75/1,5STOP DISK 28,3/35,75/1,5
-
50417280150 LOCK RING DIN5417-WS28LOCK RING DIN5417-WS28
-
661033003000 SLIDING GEAR 3/4 GEARSLIDING GEAR 3/4 GEAR
-
760033041000 STOP DISK 22,2/30,2/1,5STOP DISK 22,2/30,2/1,5
-
80405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
961033006000 IDLER 6. GEARIDLER 6. GEAR
-
1061033002000 SOLID GEAR 2.G.SOLID GEAR 2.G.
-
1160033040000 STOP DISK 20,2/28/1,5STOP DISK 20,2/28/1,5
-
1261033001000 MAIN SHAFTMAIN SHAFT
-
130618091312 NEEDLE BUSH HK0912 9/13/12NEEDLE BUSH HK0912 9/13/12
-
140625062040 BALL BEARING 6204 DU J1 C3BALL BEARING 6204 DU J1 C3
