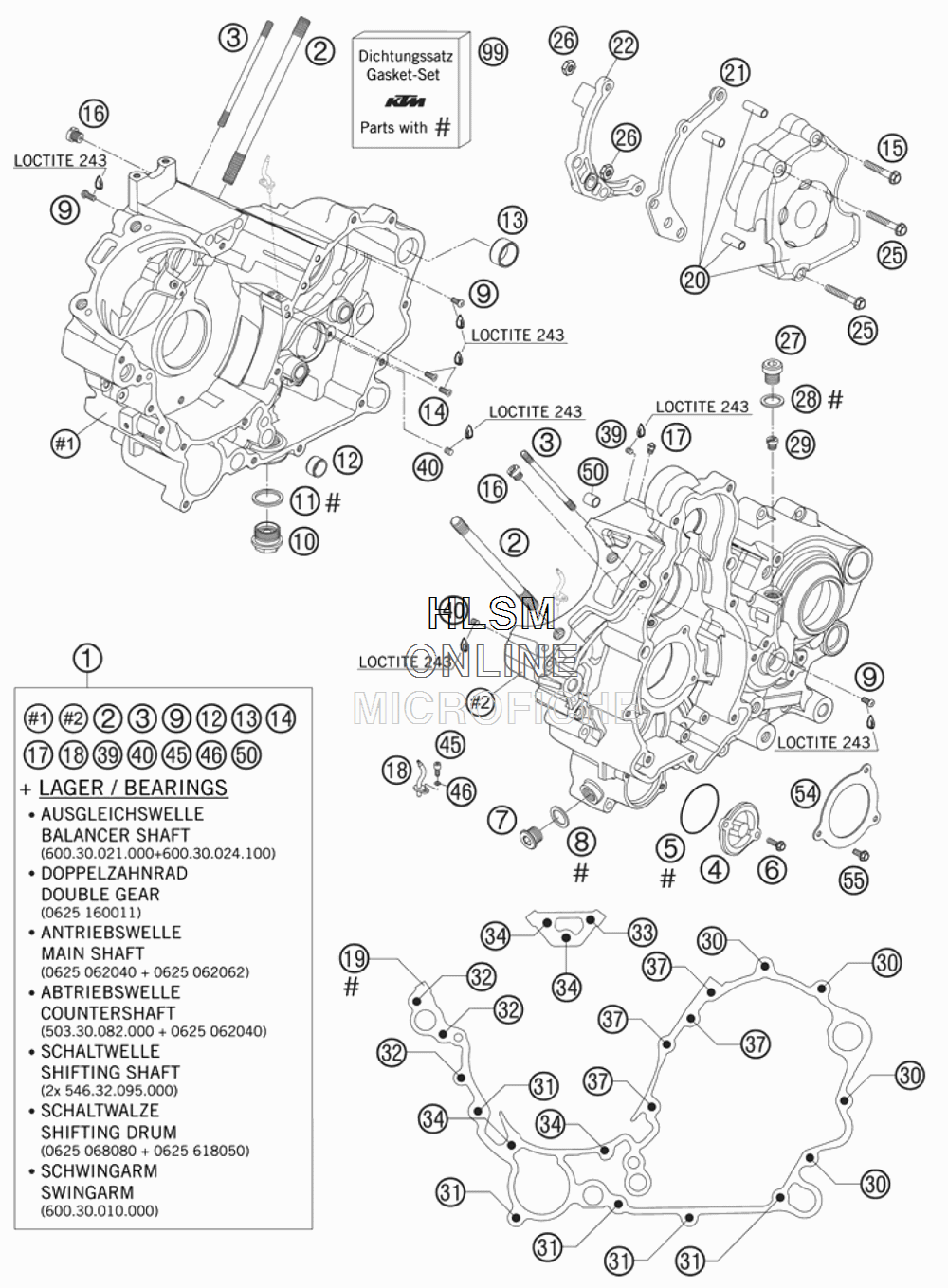

ENGINE CASE для Ktm 990 Superduke Europe - 2006 года выпуска`
-
№АртикулНазвание
-
160030000144 ENGINE CASE CPL. W.BEARINGSENGINE CASE CPL. W.BEARINGS
-
260030043000 STUD M 10X161 10.9STUD M 10X161 10.9
-
360030043010 STUD M 6X101 10.9STUD M 6X101 10.9
-
459038041000 OIL FILTER COVER RACINGOIL FILTER COVER RACING
-
50770400025 O-RING 40,00X2,50 NBR 70O-RING 40,00X2,50 NBR 70
-
60015050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
760038033050 PLUG SCREW M14X1,5 ALU AHPLUG SCREW M14X1,5 ALU AH
-
80603142016 CU-SEAL RING 14X20X1,5 LC8CU-SEAL RING 14X20X1,5 LC8
-
90018050103 INT. TORX OVAL HEAD M 5X10 8.8INT. TORX OVAL HEAD M 5X10 8.8
-
1058038019050 DRAIN PLUG W. MAGNETDRAIN PLUG W. MAGNET
-
1158038017100 CU-SEAL RING DIN7603-22X27X2CU-SEAL RING DIN7603-22X27X2
-
1258330023000 DOWEL 17 X 14 X 9,5DOWEL 17 X 14 X 9,5
-
1360030023000 DOWEL 20,1X24X12DOWEL 20,1X24X12
-
140019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
150015060303 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
1659030054000 JET 60 DELLORTO M6X0,75JET 60 DELLORTO M6X0,75
-
1760030063070 OIL JET 70 M5OIL JET 70 M5
-
1860030064000 OIL INJECT.TUBE CURVED "70"OIL INJECT.TUBE CURVED "70"
-
1960030039100 ENGINE CASE GASKET 0,5MMENGINE CASE GASKET 0,5MM
-
2060030060044 CHAIN SPROCKET COVER CPL.CHAIN SPROCKET COVER CPL.
-
2161030047000 CHAIN SECURING GUIDE KPL.CHAIN SECURING GUIDE KPL.
-
2260032063000 ADAPTER F. HYDR. CLUTCHADAPTER F. HYDR. CLUTCH
-
250015060353 HH COLLAR SCREW M 6X35HH COLLAR SCREW M 6X35
-
260985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2749030029000 OIL DRAIN PLUG M10X1,5 AH-WS=6OIL DRAIN PLUG M10X1,5 AH-WS=6
-
280603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2960038029000 REDUCING JET "30" M6X0,75REDUCING JET "30" M6X0,75
-
300015060403 HH COLLAR SCREW M 6X40HH COLLAR SCREW M 6X40
-
310015060603 HH COLLAR SCREW M 6X60HH COLLAR SCREW M 6X60
-
320015060653 HH COLLAR SCREW M 6X65HH COLLAR SCREW M 6X65
-
330015060703 HH COLLAR SCREW M 6X70HH COLLAR SCREW M 6X70
-
340015060753 HH COLLAR SCREW M 6X75HH COLLAR SCREW M 6X75
-
370015060903 HH COLLAR SCREW M 6X90HH COLLAR SCREW M 6X90
-
390916050042 THREAD PIN DIN916 M5X4-45HTHREAD PIN DIN916 M5X4-45H
-
400551060050 THREAD PIN DIN0551-M 6X 5THREAD PIN DIN0551-M 6X 5
-
450912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
460770035020 O-RING 3,5X2,00 NBRO-RING 3,5X2,00 NBR
-
5049030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
5460030084000 BRACKET FOR BEARING INSERTBRACKET FOR BEARING INSERT
-
550015050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
9960030099000 GASKET SET CPL.GASKET SET CPL.
