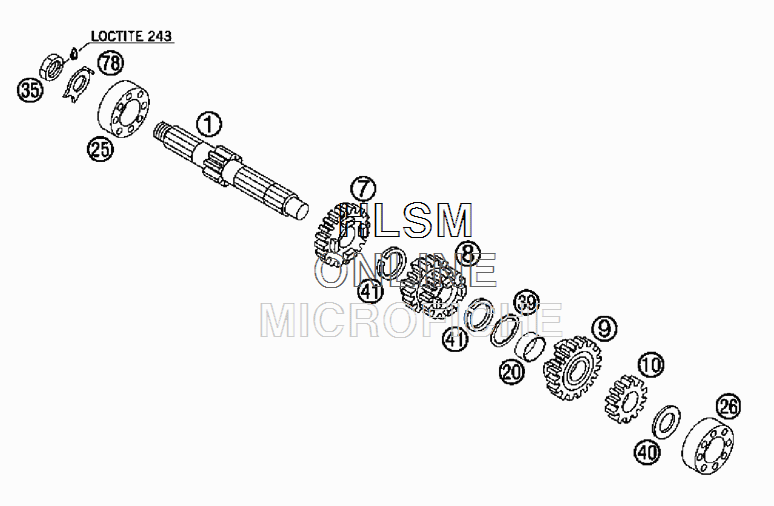

TRANSMISSION - MAIN SHAFT для Ktm 85 SX - 2006 года выпуска`
-
№АртикулНазвание
-
147033001000 MAIN SHAFT 11-TMAIN SHAFT 11-T
-
747033007000 IDLER GEAR 5TH G. 21-TIDLER GEAR 5TH G. 21-T
-
847033008000 SLID. GEAR 3RD/4TH G. 16/19-TSLID. GEAR 3RD/4TH G. 16/19-T
-
947033009100 IDLER GEAR 6TH G. 20-TIDLER GEAR 6TH G. 20-T
-
1047033010000 SOLID GEAR 2ND G. 14-TSOLID GEAR 2ND G. 14-T
-
2047033020000 IDLER GEAR BUSHINGIDLER GEAR BUSHING
-
2546033028000 GROOVED BALL BEARING 20X42X12GROOVED BALL BEARING 20X42X12
-
2647033026000 BALL BEARING 16X35X8BALL BEARING 16X35X8
-
3546030029000 HH NUT 14X1,25X7 WS=22HH NUT 14X1,25X7 WS=22
-
3947033039000 STOP DISK05STOP DISK05
-
4047033041000 STOP DISC 16X26X1STOP DISC 16X26X1
-
4147033096000 AXIAL CIRCLIP 19 SWAXIAL CIRCLIP 19 SW
-
7846030078000 LOCKING PLATE D=14MMLOCKING PLATE D=14MM
