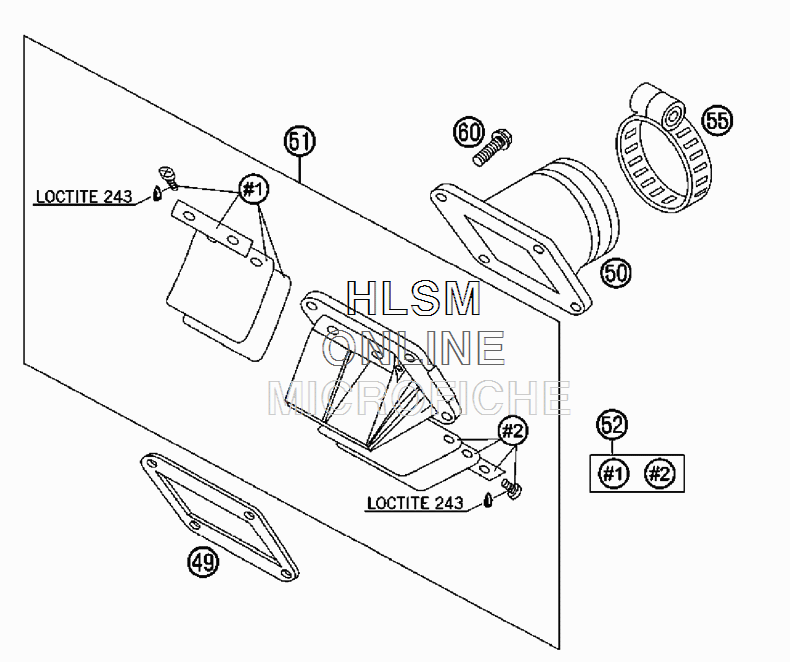

REED VALVE CASE для Ktm 85 SX - 2006 года выпуска`
-
№АртикулНазвание
-
4947030049000 GASKET FOR INTAKE FLANGEGASKET FOR INTAKE FLANGE
-
5047030050000 INTAKE FLANGEINTAKE FLANGE
-
5147030051044 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
5247030052004 REED VALVE CPL.REED VALVE CPL.
-
5551230061000 CLAMP 40/12 GEMICLAMP 40/12 GEMI
-
600015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
