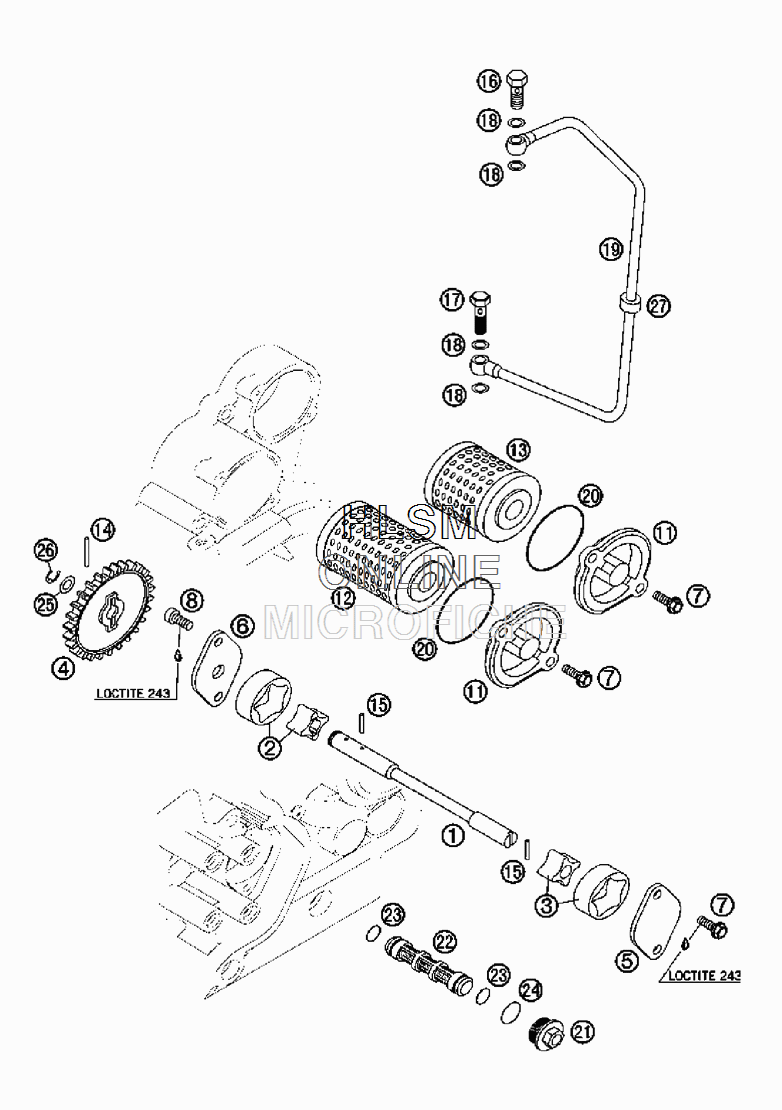

LUBRICATING SYSTEM для Ktm 525 SX - 2006 года выпуска`

№

Артикул

Название
1

59038002000 OIL PUMP SHAFT

OIL PUMP SHAFT

8 650 ₽
2

59038011010 OIL PUMP ROTOR CPL. 10MMG-73R

OIL PUMP ROTOR CPL. 10MMG-73R

7 510 ₽
3

59038011012 OIL PUMP ROTOR 12MM G-95R/003

OIL PUMP ROTOR 12MM G-95R/003

12 120 ₽
4

58438001000 OIL PUMP GEAR 26-T

OIL PUMP GEAR 26-T

2 200 ₽
5

59038004000 OIL PUMP COVER L/S

OIL PUMP COVER L/S

1 690 ₽
6

59038003000 OIL PUMP COVER R/S 8MM

OIL PUMP COVER R/S 8MM

8 550 ₽
7

0015050163 HH COLLAR SCREW M 5X16 WS=8

HH COLLAR SCREW M 5X16 WS=8

410 ₽
8

0984050122 AH SCREW DIN6912-M 5X12

AH SCREW DIN6912-M 5X12

440 ₽
11

59038041000 OIL FILTER COVER RACING

OIL FILTER COVER RACING

3 240 ₽
12

58038005100 OIL FILTER LONG

OIL FILTER LONG

2 740 ₽
13

59038046100 OIL FILTER SHORT

OIL FILTER SHORT

2 140 ₽
14

0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8

NEEDLEROL.DIN5402 NRA 2,5X19,8

210 ₽
15

0402251180 NEEDLE ROLLER DIN5402 2,5X11,8

NEEDLE ROLLER DIN5402 2,5X11,8

210 ₽
16

58038030000 BANJO BOLT M8 X 1 DIN7643

BANJO BOLT M8 X 1 DIN7643

1 030 ₽
17

59038029000 JET SCREW "100" M8X1WS=12

JET SCREW "100" M8X1WS=12

2 050 ₽
18

0603082121 SEAL RING CU DIN7603-8X12X1

SEAL RING CU DIN7603-8X12X1

760 ₽
19

59038035000 OIL LINE STEEL CASE-CYL.HEAD

OIL LINE STEEL CASE-CYL.HEAD

7 510 ₽
20

0770400025 O-RING 40,00X2,50 NBR 70

O-RING 40,00X2,50 NBR 70

290 ₽
21

59038017000 PLUG M20X1,5 WS=13

PLUG M20X1,5 WS=13

1 810 ₽
22

59038016000 OIL SCREEN 15X83MM

OIL SCREEN 15X83MM

3 620 ₽
23

0770125015 O-RING 12,5X1,5 NBR

O-RING 12,5X1,5 NBR

290 ₽
24

0770020170 O-RING 17,17X1,78 GLO

O-RING 17,17X1,78 GLO

470 ₽
25

58038007755 STOP DISK 8,1 X 15 X 0,5

STOP DISK 8,1 X 15 X 0,5

290 ₽
26

0799060000 TAB WASHER DIN6799-RS 6,0

TAB WASHER DIN6799-RS 6,0

290 ₽
27

58405098000 RUBBERBUFFER 8X17X10SILENC

RUBBERBUFFER 8X17X10SILENC

440 ₽
