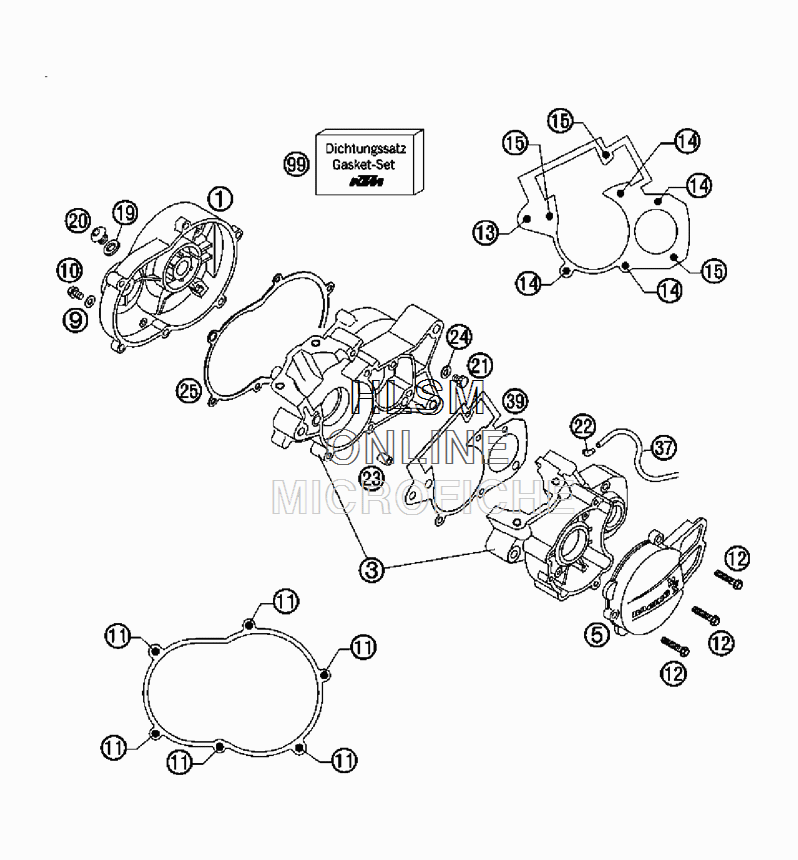

ENGINE CASE для Ktm 50 SX Sr Adventure - 2006 года выпуска`
-
№АртикулНазвание
-
145130001100 CLUTCH COVERCLUTCH COVER
-
345130000044 ENGINGE CASE 50CCMENGINGE CASE 50CCM
-
545130502000 IGNITION COVERIGNITION COVER
-
90603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
100015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
110015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
120015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
130015080603 HH COLLAR SCREW M 8X60 WS=10HH COLLAR SCREW M 8X60 WS=10
-
140912060353 AH SCREW DIN0912-M 6X35AH SCREW DIN0912-M 6X35
-
150912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
1945130019000 GASKET FOR OIL PLUGGASKET FOR OIL PLUG
-
2045130020000 OIL PLUGOIL PLUG
-
2146030021100 OIL DRAIN PLUG M10 WS=13OIL DRAIN PLUG M10 WS=13
-
2245130022000 ANGLE PIECE 50CCMANGLE PIECE 50CCM
-
2345130023000 DOWEL 7X9X10DOWEL 7X9X10
-
240603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2545130025000 GASKET FOR CLUTCH COVERGASKET FOR CLUTCH COVER
-
3752031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
3945130039000 ENGINE CASE GASKETENGINE CASE GASKET
-
9945130599000 GASKET SET CPL.GASKET SET CPL.
