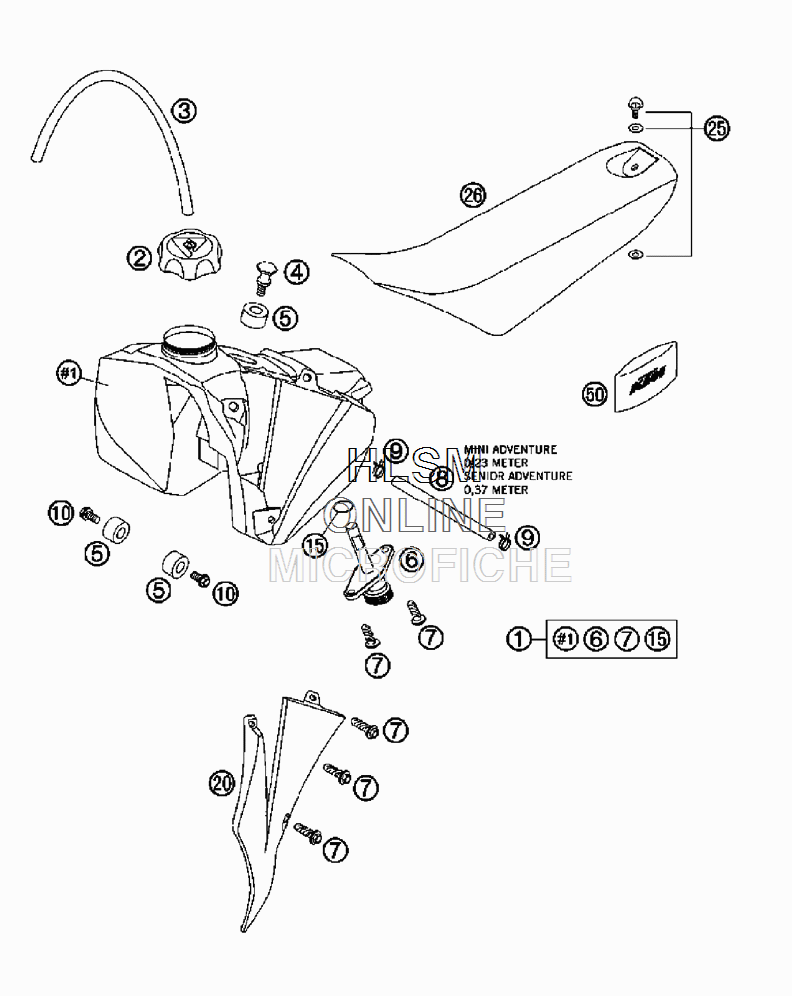

TANK - SEAT - COVER для Ktm 50 SX Junior LC - 2006 года выпуска`
-
№АртикулНазвание
-
14510711300004 FUEL TANKFUEL TANK
-
249007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
331007107001 PVC-HOSE 6X9 MM PER METERPVC-HOSE 6X9 MM PER METER
-
445107011000 TANK SCREWTANK SCREW
-
550307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
658507003000 FUEL COCK CPL. SMALL RALLYEFUEL COCK CPL. SMALL RALLYE
-
70017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
858307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
945031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
100015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
1555007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
204510805000004 SPOILER LEFTSPOILER LEFT
-
204510805100004 SPOILER RIGHTSPOILER RIGHT
-
2545007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
2645107040600 SEAT MINI ADV. LOWSEAT MINI ADV. LOW
-
5045029099000 TOOL SETTOOL SET
Все узлы модели:
- ACCESSORIES
- CARBURETOR
- CLUTCH
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME W/ SIDE STAND
- FRESH OIL LUBRICATION
- FRONT FORK
- FRONT WHEEL
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- MASK W/ FENDERS
- MONOSHOCK W/ SWINGARM
- REAR WHEEL
- SPECIAL TOOLS
- • TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
