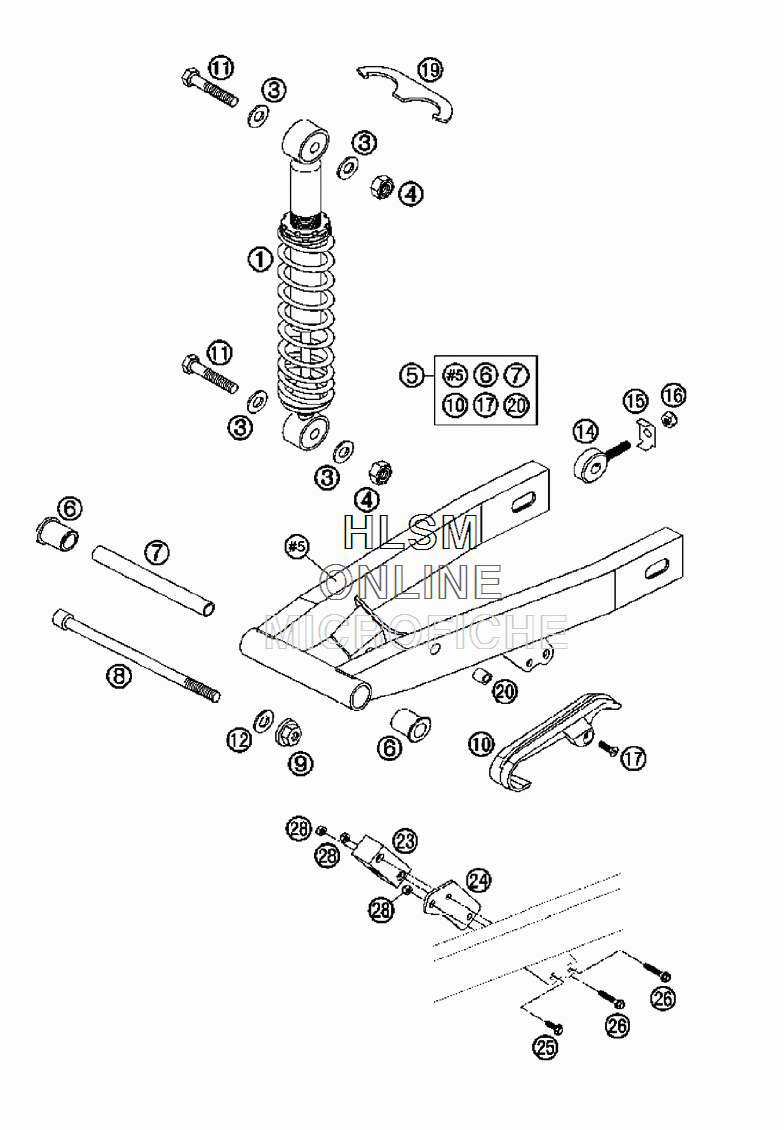

MONOSHOCK W/ SWINGARM для Ktm 50 SX Junior LC - 2006 года выпуска`

№

Артикул

Название
1

45104010700 SHOCK ABSORB.ADV GS L=245MM

SHOCK ABSORB.ADV GS L=245MM

52 680 ₽
3

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
4

0982100003 SELF LOCK.NUT DIN0982-M10 HIGH

SELF LOCK.NUT DIN0982-M10 HIGH

350 ₽
5

45104030044 SWINGARM CPL. JUN. ADV.+LC

SWINGARM CPL. JUN. ADV.+LC

69 850 ₽
6

45004031000 BUSHING BOX L=30 MM

BUSHING BOX L=30 MM

1 030 ₽
7

45004039000 SPACING TUBE 10X13X140 MM

SPACING TUBE 10X13X140 MM

1 410 ₽
8

45103014000 SWING ARM BOLT M10X158,5

SWING ARM BOLT M10X158,5

5 580 ₽
9

49009082000 SELF LOCKING NUT M10 FK8

SELF LOCKING NUT M10 FK8

640 ₽
10

45104066000 CHAIN SLID. GUARD FRO.

CHAIN SLID. GUARD FRO.

2 220 ₽
11

0931100453 HH SCREW DIN0931-M10X45

HH SCREW DIN0931-M10X45

590 ₽
12

31004001100 WASHER 10,5 X 21 X 3

WASHER 10,5 X 21 X 3

380 ₽
14

45010083000 CHAIN ADJUSTER

CHAIN ADJUSTER

3 560 ₽
15

45010083060 SUPPORTING BRACKET

SUPPORTING BRACKET

1 520 ₽
16

0985080003 SELF LOCKING NUT DIN0985-M 8

SELF LOCKING NUT DIN0985-M 8

270 ₽
17

0991060203 FLAT H.SCREW DIN7991-M6X20 8.8

FLAT H.SCREW DIN7991-M6X20 8.8

290 ₽
19

45004010090 HOOK WRENCH 50 SXR

HOOK WRENCH 50 SXR

2 050 ₽
20

55003139900 BLIND RIVET THREAD M6 STE. 4MM

BLIND RIVET THREAD M6 STE. 4MM

470 ₽
23

45004070000 CHAIN GUIDE REAR

CHAIN GUIDE REAR

2 380 ₽
24

45104170000 BRACKET FOR CHAIN GUARD

BRACKET FOR CHAIN GUARD

2 160 ₽
25

0015050123 HH COLLAR SCREW M 5X12 WS=8

HH COLLAR SCREW M 5X12 WS=8

500 ₽
26

0015050303 HH COLLAR SCREW M 5X30 WS=8

HH COLLAR SCREW M 5X30 WS=8

350 ₽
27

0912050353 AH SCREW DIN912 M5X35

AH SCREW DIN912 M5X35

320 ₽
28

0985050003 SELF LOCKING NUT DIN0985-M 5

SELF LOCKING NUT DIN0985-M 5

290 ₽
