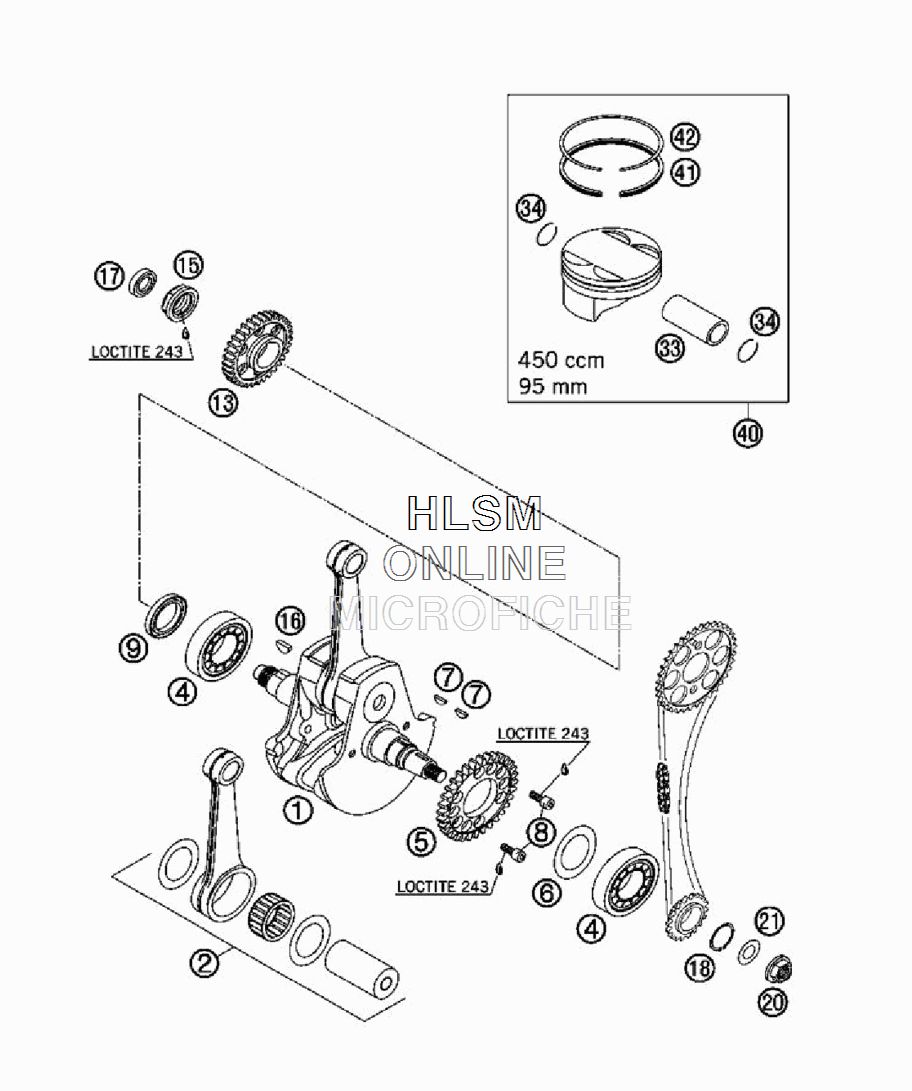

CRANKSHAFT W/ PISTON для Ktm 450 XC - 2006 года выпуска`

№

Артикул

Название
1

59430018100 CRANKSHAFT 06 STROKE 72MM, WITHOUT WASHER

CRANKSHAFT 06 STROKE 72MM, WITHOUT WASHER

170 ₽
2

59430015044 CON.ROD REP.SET WITH WASHER

CON.ROD REP.SET WITH WASHER

130 870 ₽
4

80030019000 CYL.ROLLBEAR.NJ206ECP/C3HVC058

CYL.ROLLBEAR.NJ206ECP/C3HVC058

25 610 ₽
5

59030055000 DRIVE GEAR 32-T F.BALANC.SHAFT

DRIVE GEAR 32-T F.BALANC.SHAFT

29 730 ₽
6

56030081000 THRUST WASHER 30,5X45X0,10

THRUST WASHER 30,5X45X0,10

120 ₽
6

56030081100 THRUST WASHER 30,7X47X0,15

THRUST WASHER 30,7X47X0,15

270 ₽
6

56030081200 THRUST WASHER 30,5X45X0,30

THRUST WASHER 30,5X45X0,30

350 ₽
7

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
8

0984060162 AH SCREW DIN7984-M 6X16

AH SCREW DIN7984-M 6X16

30 ₽
9

0760304772 SH.SEAL RING 30X47X7 BSL VITON

SH.SEAL RING 30X47X7 BSL VITON

5 490 ₽
13

59032000033 PRIMARY GEAR 33-T

PRIMARY GEAR 33-T

29 560 ₽
15

59030029100 HH NUR M20X1,5 WS=27 LEFT

HH NUR M20X1,5 WS=27 LEFT

1 810 ₽
16

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
17

0760142460 SHAFT SEAL RING 14X24X6 B

SHAFT SEAL RING 14X24X6 B

2 430 ₽
18

0471250120 CIRCLIP DIN0471-25X1,2

CIRCLIP DIN0471-25X1,2

290 ₽
20

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
21

0137120000 SPRING WASHER DIN0137-B12

SPRING WASHER DIN0137-B12

120 ₽
33

59430033000 PISTON PIN BOLT 20X12X45,5

PISTON PIN BOLT 20X12X45,5

5 120 ₽
34

59430174000 CIRCLIP 20X1,6

CIRCLIP 20X1,6

2 280 ₽
40

59430107100I PISTON CPL. 450 D=95MM SI.1

PISTON CPL. 450 D=95MM SI.1

119 180 ₽
40

59430107100II PISTON CPL. 450 D=95MM SI.2

PISTON CPL. 450 D=95MM SI.2

0 ₽
41

59430031000 OIL SCRAPER RING 95/88,5X2,5

OIL SCRAPER RING 95/88,5X2,5

5 810 ₽
42

59030032000 RECTANGULAR RING 95/87,2X1,25

RECTANGULAR RING 95/87,2X1,25

9 960 ₽
