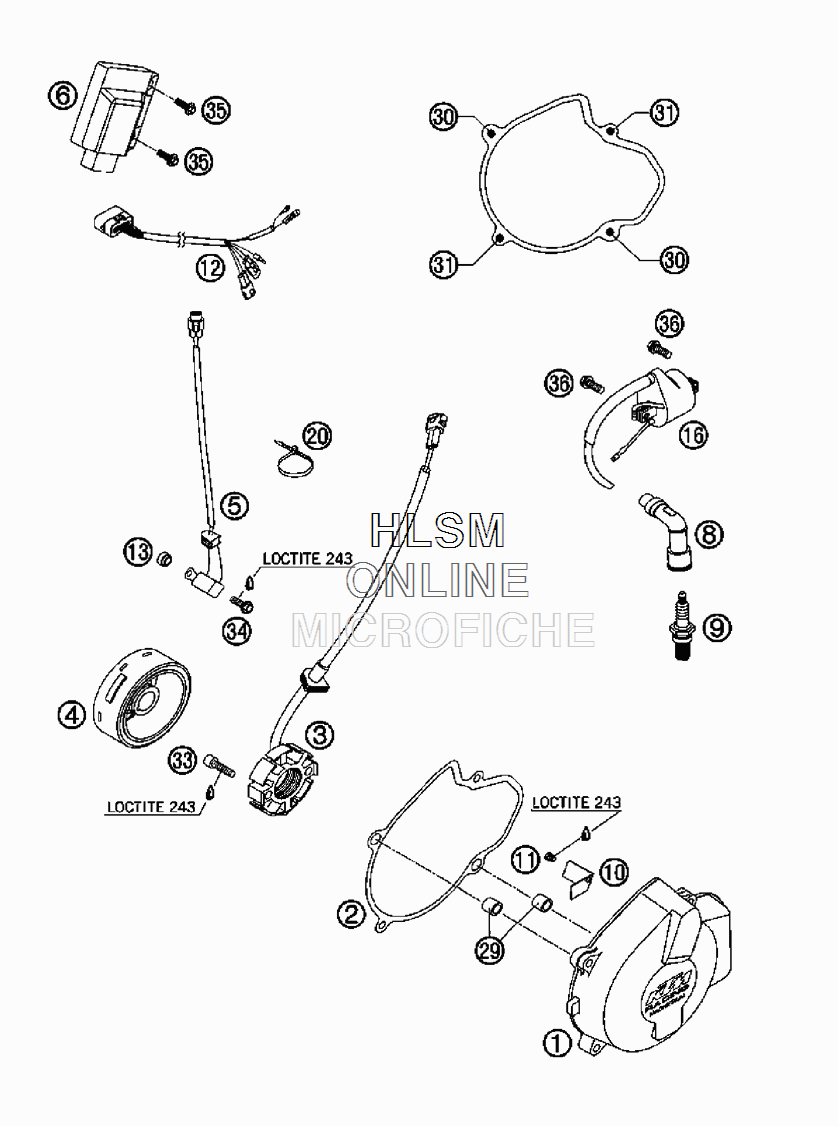

IGNITION SYSTEM для Ktm 450 SMR - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    59030002500 IGNITION COVER 4K3A
    IGNITION COVER 4K3A
  • 2
    59030040000 IGNITION COVER GASKET 0,8MM
    IGNITION COVER GASKET 0,8MM
  • 3
    77039004000 STATOR 4K3-A
    STATOR 4K3-A
  • 4
    77039005000 FLYWHEEL
    FLYWHEEL
  • 5
    59039034000 PULSER COIL KOKUSAN 4K3-A/B
    PULSER COIL KOKUSAN 4K3-A/B
  • 6
    59039031400 CDI UNIT
    CDI UNIT
  • 8
    59039090100 SPARK PLUG CONNECT. VD05EG
    SPARK PLUG CONNECT. VD05EG
  • 9
    59039093100 SPARK PLUG NGK DCPR8E
    SPARK PLUG NGK DCPR8E
  • 10
    59030002050 SUPPORT FOR WIRE
    SUPPORT FOR WIRE
  • 11
    0084040063 CYL.HEAD SCREW DIN0084-M 4X 6A
    CYL.HEAD SCREW DIN0084-M 4X 6A
  • 12
    59439032000 WIRING HARNESS FOR CDI SX 04
    WIRING HARNESS FOR CDI SX 04
  • 13
    59039009000 SPACER BUSHING 5,2X7X4,8 2000
    SPACER BUSHING 5,2X7X4,8 2000
  • 16
    59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B
    IGNITIONCOIL KOKUSAN 4K3-A/B
  • 20
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 29
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 30
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 31
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 33
    0912050253 AH SCREW DIN0912-M 5X25
    AH SCREW DIN0912-M 5X25
  • 34
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 35
    0014060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 36
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
