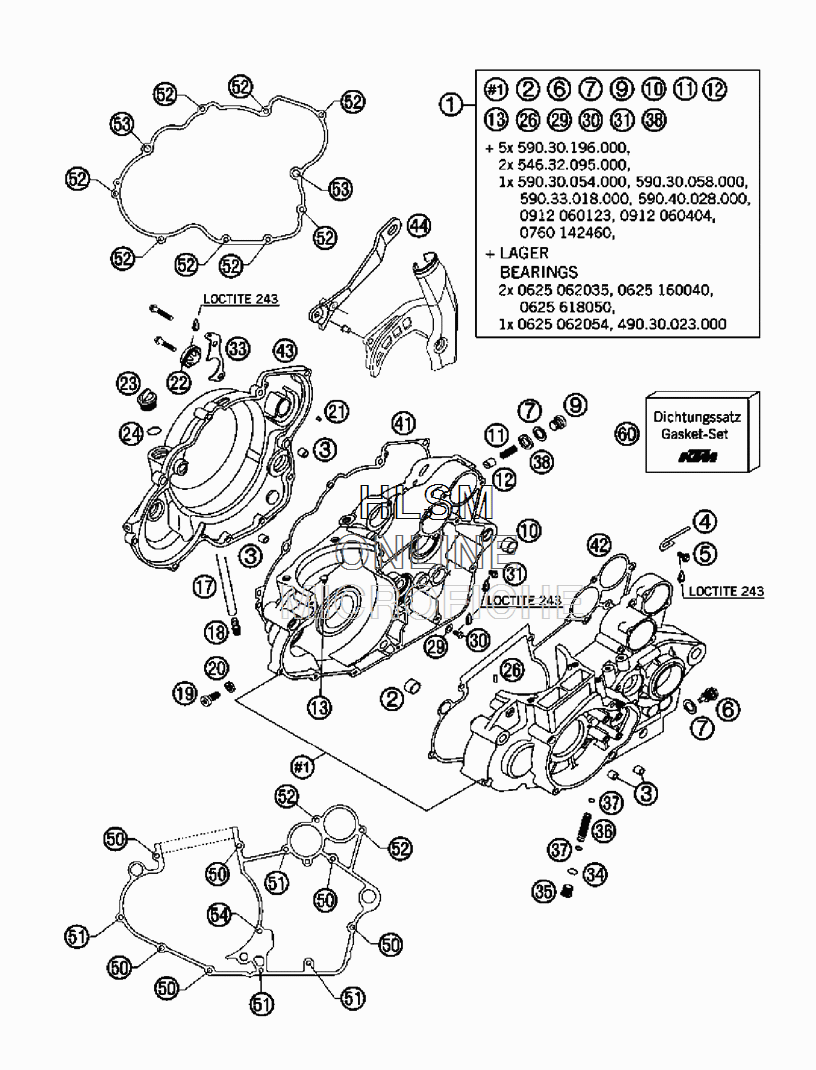

ENGINE CASE для Ktm 450 EXC - 2006 года выпуска`
-
№АртикулНазвание
-
159030000444 ENGINE CASEENGINE CASE
-
251030026100 DOWEL 17 X 13 X 12DOWEL 17 X 13 X 12
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
459030090000 HANGER FOR VENT HOSEHANGER FOR VENT HOSE
-
50014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
658030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
90908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
1059030024000 DOWEL 17 X 19 X 12DOWEL 17 X 19 X 12
-
1158038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
1258038028000 VALVE PISTON D=10MMVALVE PISTON D=10MM
-
1359030054000 JET 60 DELLORTO M6X0,75JET 60 DELLORTO M6X0,75
-
1759031050100 ENGINE BREATHER TUBEENGINE BREATHER TUBE
-
1859030022100 BLEEDER FLANGE M12X1,5 WS=13BLEEDER FLANGE M12X1,5 WS=13
-
1958030080000 LOCATING SCREW M8 L=23LOCATING SCREW M8 L=23
-
2058030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
210402025980 NEEDLE ROLLER DIN5402 2,5X9,8NEEDLE ROLLER DIN5402 2,5X9,8
-
2259030019000 OIL LEVEL GLASS G 1777 YOIL LEVEL GLASS G 1777 Y
-
2358030020000 PLUG M 24X3PLUG M 24X3
-
240770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
260402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
290125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
300985050083 FLAT HEAD SCREW DIN7985-M 5X 8FLAT HEAD SCREW DIN7985-M 5X 8
-
310015060083 HH COLLAR SCREW M 6X8 WS=8HH COLLAR SCREW M 6X8 WS=8
-
3359030001090 RET.BRACKET F.BRAKE LEVER HUBRET.BRACKET F.BRAKE LEVER HUB
-
340770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
3559038014000 PLUG M16X1,5PLUG M16X1,5
-
3659038015000 OIL SCREEN 11,8X44,5MMOIL SCREEN 11,8X44,5MM
-
370770090015 O-RING 9X1,5 NBRO-RING 9X1,5 NBR
-
380603121830 SEAL RING DIN7603 12X18X3SEAL RING DIN7603 12X18X3
-
4159030025100 GASKET FOR CLUTCH COVERGASKET FOR CLUTCH COVER
-
4259030039100 ENGINE CASE GASKET NS92-24ENGINE CASE GASKET NS92-24
-
4359030001000 CLUTCH COVERCLUTCH COVER
-
4459030047100 CHAIN DAMPING PLATECHAIN DAMPING PLATE
-
500015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
510015060603 HH COLLAR SCREW M 6X60 WS=8HH COLLAR SCREW M 6X60 WS=8
-
520015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
530015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
540015060753 HH COLLAR SCREW M 6X75 WS=8HH COLLAR SCREW M 6X75 WS=8
-
6059030099000 GASKET SET CPLGASKET SET CPL
