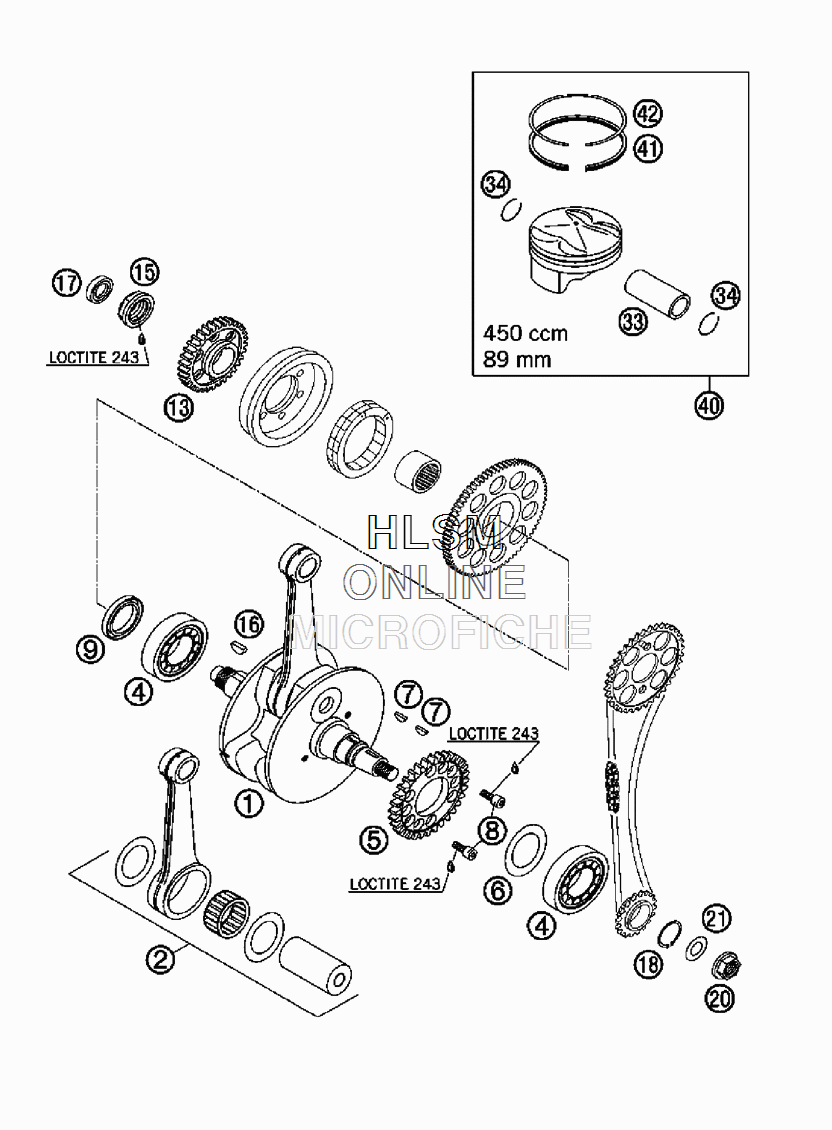

CRANKSHAFT W/ PISTON для Ktm 450 EXC - 2006 года выпуска`

№

Артикул

Название
1

59030018500 CRANKSHAFT CPL. STROKE 72MM

CRANKSHAFT CPL. STROKE 72MM

170 ₽
2

59030015044 CON.ROD REP.SET 250/520 RAC.00 WITH WASHER

CON.ROD REP.SET 250/520 RAC.00 WITH WASHER

149 500 ₽
4

50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46

CYL.ROLLER BEAR.NJ206 ET2XCS46

22 490 ₽
5

59030055000 DRIVE GEAR 32-T F.BALANC.SHAFT

DRIVE GEAR 32-T F.BALANC.SHAFT

29 730 ₽
6

56030081000 THRUST WASHER 30,5X45X0,10

THRUST WASHER 30,5X45X0,10

120 ₽
6

56030081100 THRUST WASHER 30,7X47X0,15

THRUST WASHER 30,7X47X0,15

270 ₽
6

56030081200 THRUST WASHER 30,5X45X0,30

THRUST WASHER 30,5X45X0,30

350 ₽
7

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
8

0984060162 AH SCREW DIN7984-M 6X16

AH SCREW DIN7984-M 6X16

30 ₽
9

0760304772 SH.SEAL RING 30X47X7 BSL VITON

SH.SEAL RING 30X47X7 BSL VITON

5 490 ₽
13

59032000033 PRIMARY GEAR 33-T

PRIMARY GEAR 33-T

29 560 ₽
15

59030029100 HH NUR M20X1,5 WS=27 LEFT

HH NUR M20X1,5 WS=27 LEFT

1 810 ₽
16

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
17

0760142460 SHAFT SEAL RING 14X24X6 B

SHAFT SEAL RING 14X24X6 B

2 430 ₽
18

0471250120 CIRCLIP DIN0471-25X1,2

CIRCLIP DIN0471-25X1,2

290 ₽
20

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
21

0137120000 SPRING WASHER DIN0137-B12

SPRING WASHER DIN0137-B12

120 ₽
33

59030033000 PISTON PIN BOLT 20X15,8/12X50

PISTON PIN BOLT 20X15,8/12X50

5 870 ₽
34

59030074000 CIRCLIP C20X1,5

CIRCLIP C20X1,5

410 ₽
40

59430007000I PISTON CPL. 450 D=89MM SI.1

PISTON CPL. 450 D=89MM SI.1

73 160 ₽
40

59430007000II PISTON CPL. 450 D=89MM SI.2

PISTON CPL. 450 D=89MM SI.2

0 ₽
41

59530031000 OIL SCRAPER RING 89/81,5X3

OIL SCRAPER RING 89/81,5X3

5 720 ₽
42

57530032000 RECTANGULAR RING 89MM

RECTANGULAR RING 89MM

12 420 ₽
