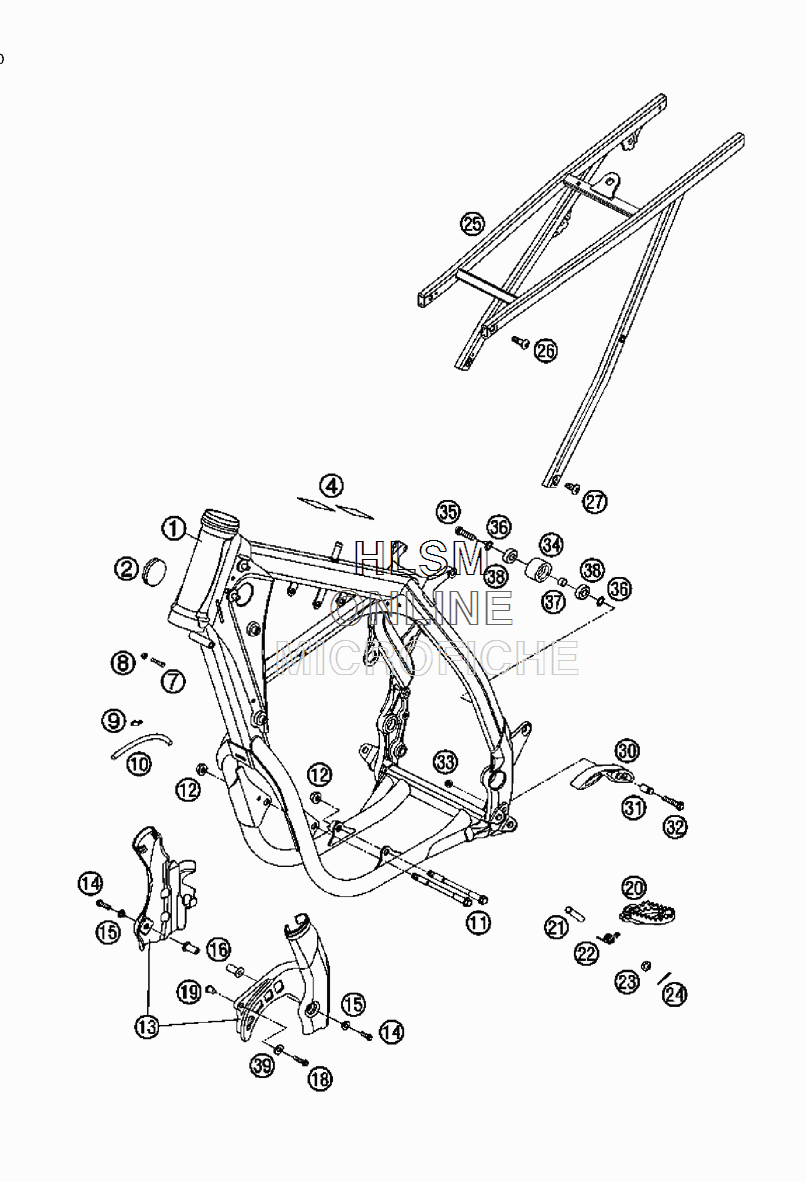

FRAME W/ SUB FRAME для Ktm 400 EXC - 2006 года выпуска
-
№АртикулНазвание
-
15940310120030 FRAME USA "DB06"FRAME USA "DB06"
-
254606004000 PLUG 37MMPLUG 37MM
-
450307012000 ADH. FOIL TRANSP. 80X80 MMADH. FOIL TRANSP. 80X80 MM
-
759001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
80934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
950303089000 ANGEL PIECEANGEL PIECE
-
1055007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
1159003013000 ENGINEBRAC.SCREW M10X123 WS=13ENGINEBRAC.SCREW M10X123 WS=13
-
1254310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
1354803094100 FRAME PROTECTION SETFRAME PROTECTION SET
-
140014050253 HH COLLAR SCREW M 5X25 WS=6HH COLLAR SCREW M 5X25 WS=6
-
1554803092060 BUSH F. FRAME PROTECTIONBUSH F. FRAME PROTECTION
-
1654803092050 BLIND PLUG-IN NUT M5 WN 22ABLIND PLUG-IN NUT M5 WN 22A
-
180015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
1959030060050 BUSHING F. SPROCKET COVER RAC.BUSHING F. SPROCKET COVER RAC.
-
2059003040250 FOOT PED L/S SILVER 02FOOT PED L/S SILVER 02
-
2059003041250 FOOT PED R/S SILVER 02FOOT PED R/S SILVER 02
-
2154803044000 BOLT FOR FOOT PED 03BOLT FOR FOOT PED 03
-
2254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
230125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
240094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
2559403002344 SUB FRAME CPL. EXC+MXC "M5"SUB FRAME CPL. EXC+MXC "M5"
-
2654510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2754610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
3051103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
3151103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
320015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
3354310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
3450203053000 CHAIN ROLL D=30MMCHAIN ROLL D=30MM
-
350015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
3636003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
3774003021000 BUSHING 8.2 X 12 X 6BUSHING 8.2 X 12 X 6
-
380625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
390125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
