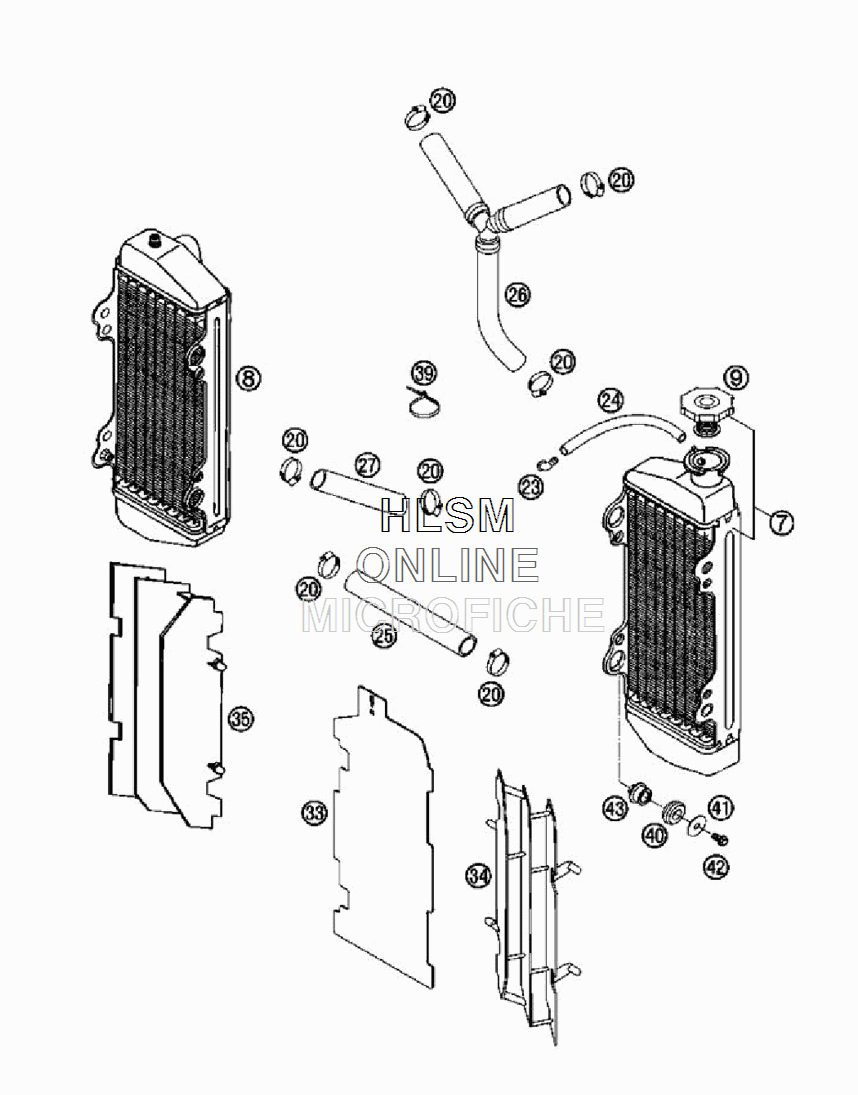

COOLING SYSTEM для Ktm 300 XC - 2006 года выпуска

  • №
    Артикул
    Название
  • 7
    50335007000 RADIATOR L/S NATURE (45286)
    RADIATOR L/S NATURE (45286)
  • 8
    50335008000 RADIATOR R/S NATURE (45285)
    RADIATOR R/S NATURE (45285)
  • 9
    59035009000 RADIAT.CAP 20,3PSI (1,4BAR)
    RADIAT.CAP 20,3PSI (1,4BAR)
  • 20
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 23
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 24
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 25
    56535025001 RADIATOR HOSE 18X25 PER METRE RADIATOR - RADIATOR
    RADIATOR HOSE 18X25 PER METRE RADIATOR - RADIATOR
  • 26
    54835026000 RADIATOR HOSE INCL. Y-PART
    RADIATOR HOSE INCL. Y-PART
  • 27
    54835027000 RADIATOR HOSE 18X25X130 MM WATER PUMP - RADIATOR
    RADIATOR HOSE 18X25X130 MM WATER PUMP - RADIATOR
  • 33
    50335033000 COVER FOR RADIATOR L/S BLACK
    COVER FOR RADIATOR L/S BLACK
  • 34
    5463503420030 RADIATOR PROTECTOR L. BLACK
    RADIATOR PROTECTOR L. BLACK
  • 35
    5463513420030 RADIATOR PROTECTOR BLACK
    RADIATOR PROTECTOR BLACK
  • 39
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 42
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 43
    77035002000 SPACER BUSHING
    SPACER BUSHING
