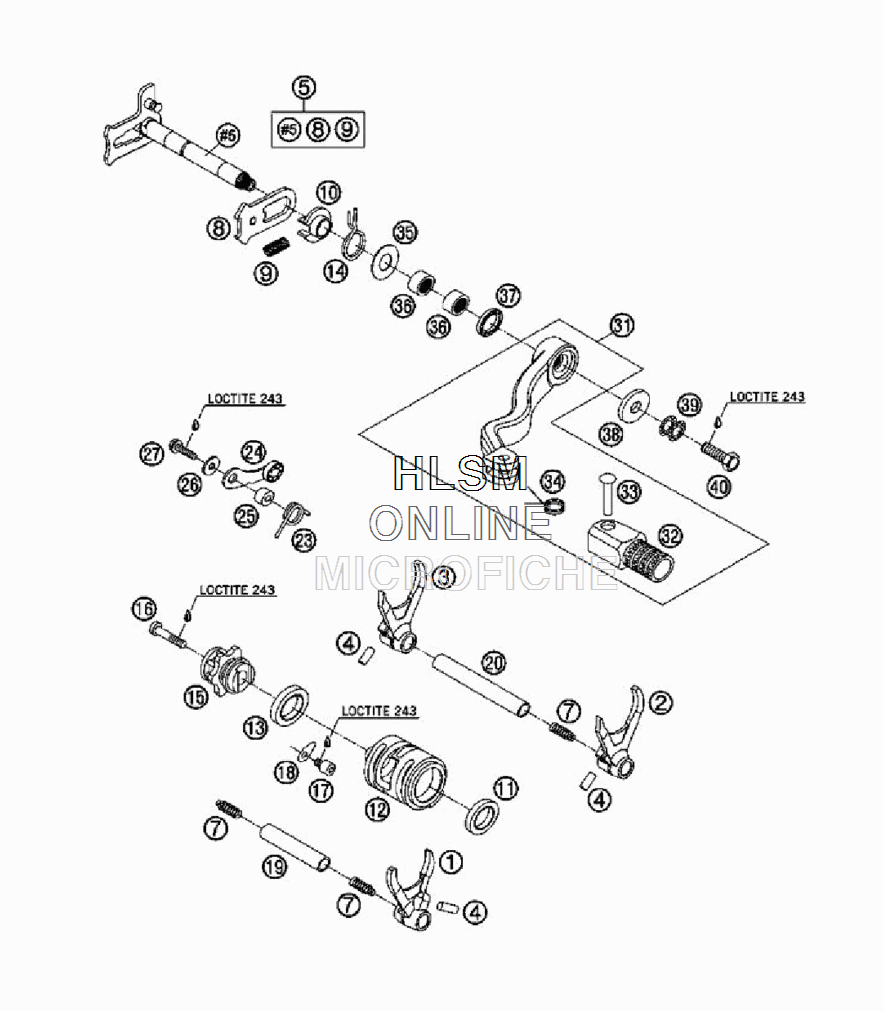

SHIFTING MECHANISM для Ktm 250 XC-W - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    54834001000 SHIFTING FORK 4TH/5TH GEAR
    SHIFTING FORK 4TH/5TH GEAR
  • 2
    54834002000 SHIFTING FORK 2ND GEAR
    SHIFTING FORK 2ND GEAR
  • 3
    54834003000 SHIFTING FORK 1ST/3RD GEAR
    SHIFTING FORK 1ST/3RD GEAR
  • 4
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 5
    54834005044 SHIFTING SHAFT CPL.
    SHIFTING SHAFT CPL.
  • 7
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 8
    54634008044 SLIDING PLATE CPL.
    SLIDING PLATE CPL.
  • 9
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 10
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 11
    0625069034 BALL BEARING 6903 C4
    BALL BEARING 6903 C4
  • 12
    54834012000 SHIFT ROLLER
    SHIFT ROLLER
  • 13
    0625068050 BALL BEARING 6805 C4 NTN JAPAN
    BALL BEARING 6805 C4 NTN JAPAN
  • 14
    54834014000 RETURN SPRING
    RETURN SPRING
  • 15
    54834015000 SHIFT LOCATING DRUM
    SHIFT LOCATING DRUM
  • 16
    0984060302 AH SCREW DIN6912 M 6X30
    AH SCREW DIN6912 M 6X30
  • 17
    0912060083 AH SCREW DIN0912-M 6X 8
    AH SCREW DIN0912-M 6X 8
  • 18
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 19
    54834019000 SHIFT. RAIL MAIN SHAFT
    SHIFT. RAIL MAIN SHAFT
  • 20
    54834020000 SHIFT. RAIL C. SHAFT
    SHIFT. RAIL C. SHAFT
  • 23
    54834023000 LOCKING LEVER SPRING
    LOCKING LEVER SPRING
  • 24
    50334024044 LOCATING LEVER CPL.
    LOCATING LEVER CPL.
  • 25
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 26
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 27
    0015050203 HH COLLAR SCREW M 5X20 WS=8
    HH COLLAR SCREW M 5X20 WS=8
  • 31
    54834031000 SHIFT LEVER CPL.
    SHIFT LEVER CPL.
  • 32
    54634131000 STEP PLATE FOR SHIFT LEVER
    STEP PLATE FOR SHIFT LEVER
  • 33
    54634031050 BOLT 6X25 FOR SHIFT LEVER
    BOLT 6X25 FOR SHIFT LEVER
  • 34
    54634032100 SHIFTING LEVER SPRING
    SHIFTING LEVER SPRING
  • 35
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 36
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 37
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 38
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 39
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 40
    0933060165 HH SCREW DIN0933-M 6X16 10.9
    HH SCREW DIN0933-M 6X16 10.9
