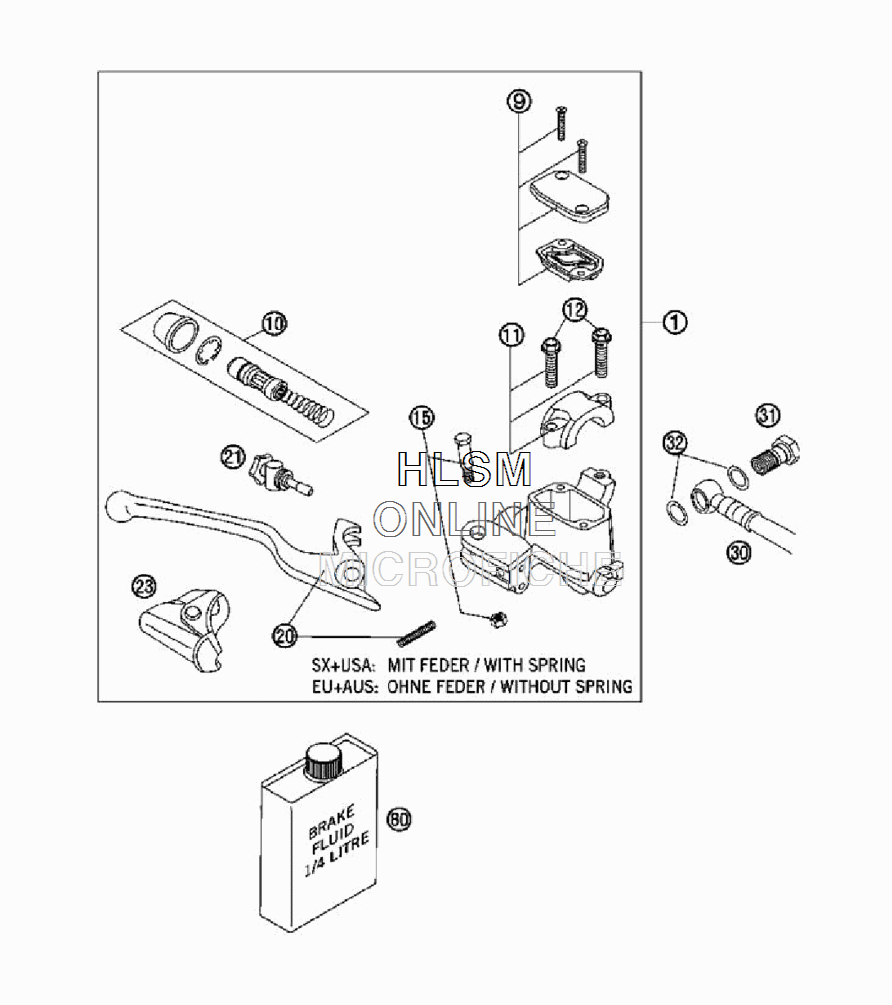

HAND BRAKE CYLINDER для Ktm 250 SX - 2006 года выпуска`
-
№АртикулНазвание
-
154813001200 HAND BRAKE CYLINDER CPL.HAND BRAKE CYLINDER CPL.
-
950313003000 HANDBRAKE CYL.COVER CPL. NATUREHANDBRAKE CYL.COVER CPL. NATURE
-
1054813008200 REP.SET PISTON D=10MMREP.SET PISTON D=10MM
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2054813002100 HAND BRAKE LEVER + SPRINGHAND BRAKE LEVER + SPRING
-
2154813007200 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
2350313004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
2558012040150 CLAMP FOR MIRROWCLAMP FOR MIRROW
-
3059013011000 BRAKEHO. FRONT 1300MMBRAKEHO. FRONT 1300MM
-
3150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
3242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR KEIHIN
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST PIPE
- EXHAUST SILENCER
- FORK LEGS
- FRAME W/ SUB FRAME
- FRONT FORK
- FRONT WHEEL
- • HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- MASK W/ FENDERS
- MONOSHOCK
- MONOSHOCK - DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SPECIAL TOOLS
- SWINGARM
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAINSHAFT
