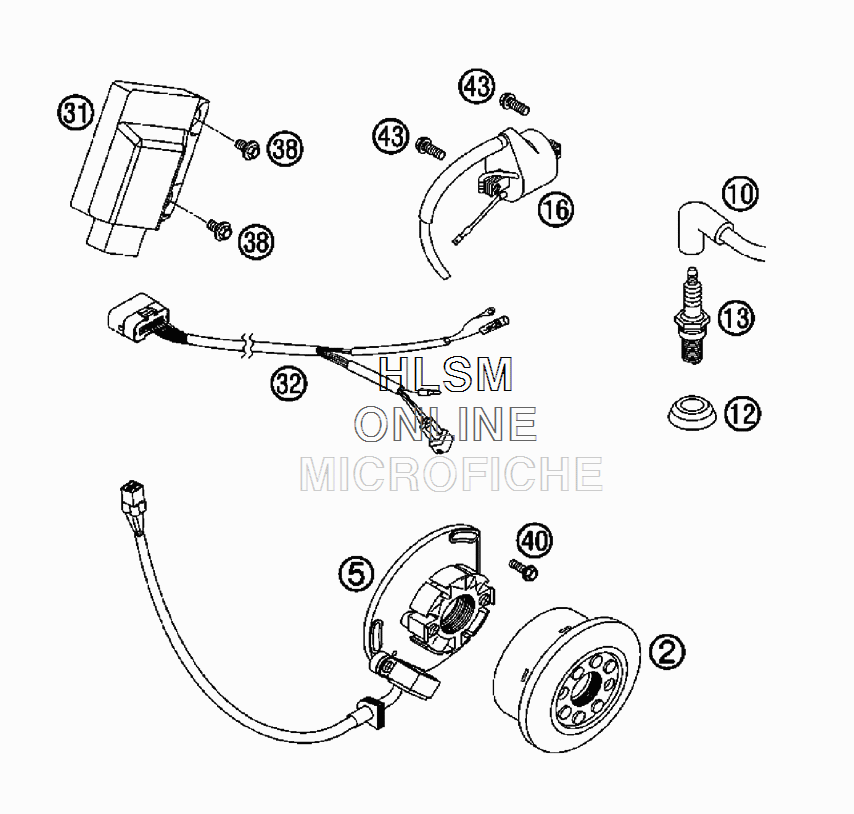

IGNITION SYSTEM 2K-2 для Ktm 200 XC - 2006 года выпуска`
-
№АртикулНазвание
-
254739005144 FLYWHEEL KOKUSAN 2K-2 CPL.FLYWHEEL KOKUSAN 2K-2 CPL.
-
554839104000 STATOR KOKUSAN 2K-2STATOR KOKUSAN 2K-2
-
1047039090000 SPARK PLUG CAP NGK REINFORC.SPARK PLUG CAP NGK REINFORC.
-
1250231012000 SEALING CUP FOR SPARK PLUGSEALING CUP FOR SPARK PLUG
-
1354331093310 SPARK PLUG NGK BR8EGSPARK PLUG NGK BR8EG
-
1650339006000 IGNI.COIL KOKU.3834IGNI.COIL KOKU.3834
-
3152339031700 CDI UNITCDI UNIT
-
3254839032000 WIRING HARNESS FOR CDI 2-ST.WIRING HARNESS FOR CDI 2-ST.
-
380014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
400015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
430015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
