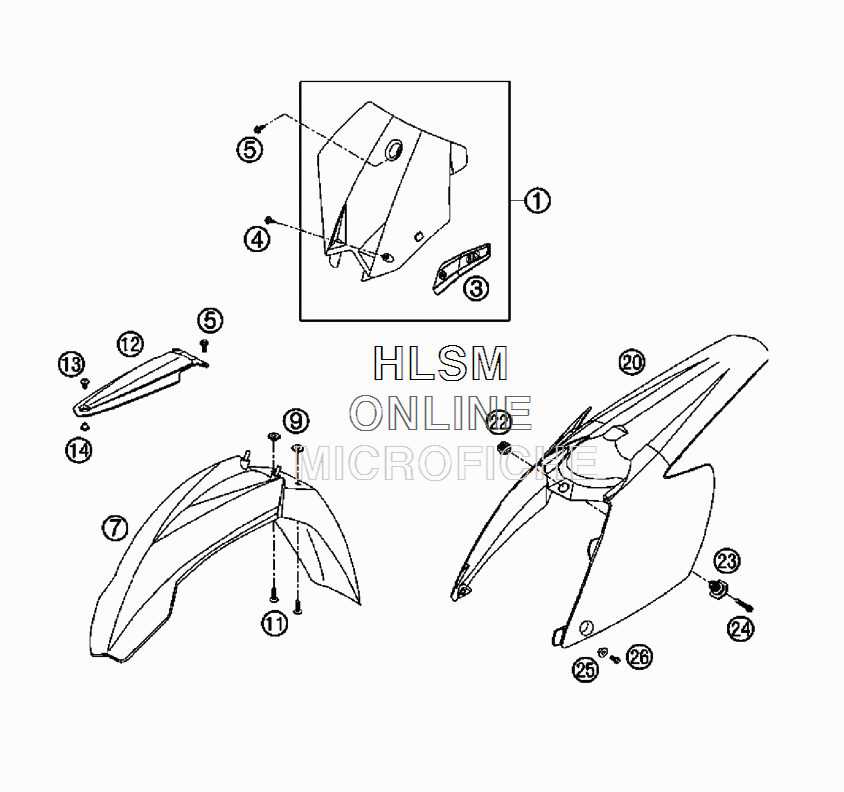

MASK W/ FENDERS для Ktm 200 XC-W - 2006 года выпуска`
-
№АртикулНазвание
-
15480800701004 NUMBER PLATE CPL. ORANGENUMBER PLATE CPL. ORANGE
-
354808019000 BRAKE HOSE GUIDE BLACKBRAKE HOSE GUIDE BLACK
-
40017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
50014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
75030801030004 FENDER FRONT WIDE ORANGEFENDER FRONT WIDE ORANGE
-
954808020000 SPACER BUSHINGSPACER BUSHING
-
110014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1250308009100 FENDER BRACE BLACKFENDER BRACE BLACK
-
1350308009050 SCREW FEND.BRACE M8X9 WS=17SCREW FEND.BRACE M8X9 WS=17
-
1450308009051 NUT FENDER BRACE M8 WS=17NUT FENDER BRACE M8 WS=17
-
205480801310004 REAR PART EXC ORANGEREAR PART EXC ORANGE
-
2250314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2354807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
240015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
2550308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
260015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
