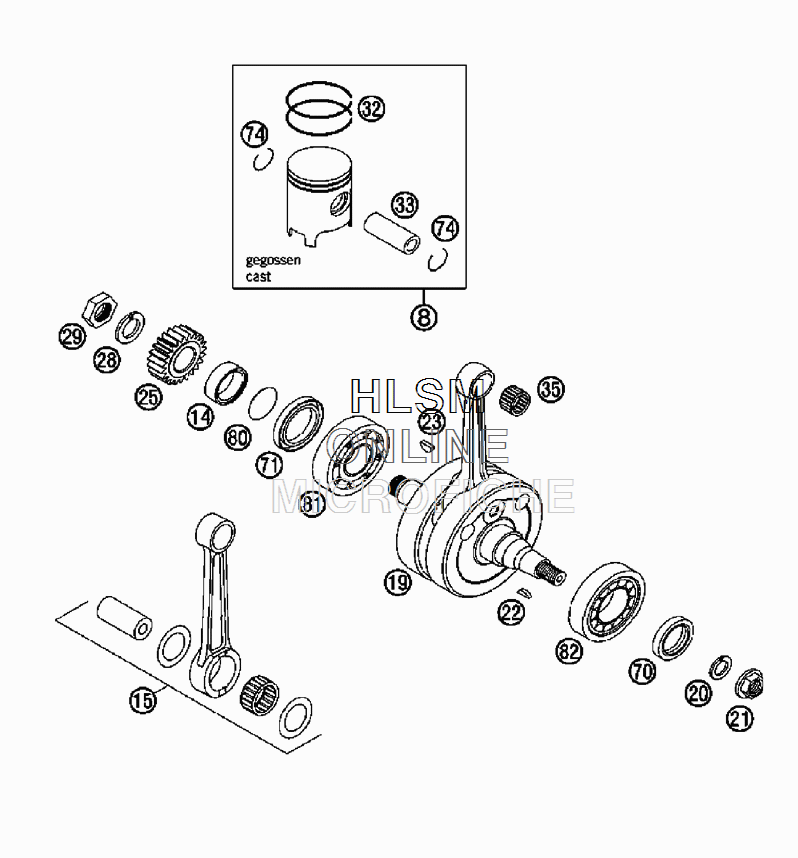

CRANKSHAFT W/ PISTON для Ktm 200 XC-W - 2006 года выпуска`
-
№АртикулНазвание
-
852330007300I PISTON I CPL. 64MMPISTON I CPL. 64MM
-
852330007300II PISTON II CPL. 64MMPISTON II CPL. 64MM
-
1454633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
1552330015000 CON.ROD REPAIR KITCON.ROD REPAIR KIT
-
1952330018100 CRANKSHAFTCRANKSHAFT
-
2050230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2149030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
220888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
236946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
2550332023023 PRIMARY PINION 23-TPRIMARY PINION 23-T
-
2850230029016 LOCKING RING VSK 16LOCKING RING VSK 16
-
2950330029000 HEXAGON NUT M 16 X 1,5 - L/SHEXAGON NUT M 16 X 1,5 - L/S
-
3252330032100 SQUARE RING 64X1SQUARE RING 64X1
-
3352330033100 PISTON PIN 11X16X46PISTON PIN 11X16X46
-
3552330034000 NEEDLE BEARING KV16X20X20 FNNEEDLE BEARING KV16X20X20 FN
-
700760253570 SHAFT SEAL RING 25X35X7 BTSLSHAFT SEAL RING 25X35X7 BTSL
-
710760324564 SHAFT SEAL RING 32X45X6,5 BTSHAFT SEAL RING 32X45X6,5 BT
-
7452330074100 WIRE LOCK RING 16X1,2WIRE LOCK RING 16X1,2
-
800770250020 O-RING 25,00X2,00 NBR 70O-RING 25,00X2,00 NBR 70
-
810625063055 BALL BEARING 6305 JR2 CS36BALL BEARING 6305 JR2 CS36
-
8250330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46CYL.ROLLER BEAR.NJ206 ET2XCS46
