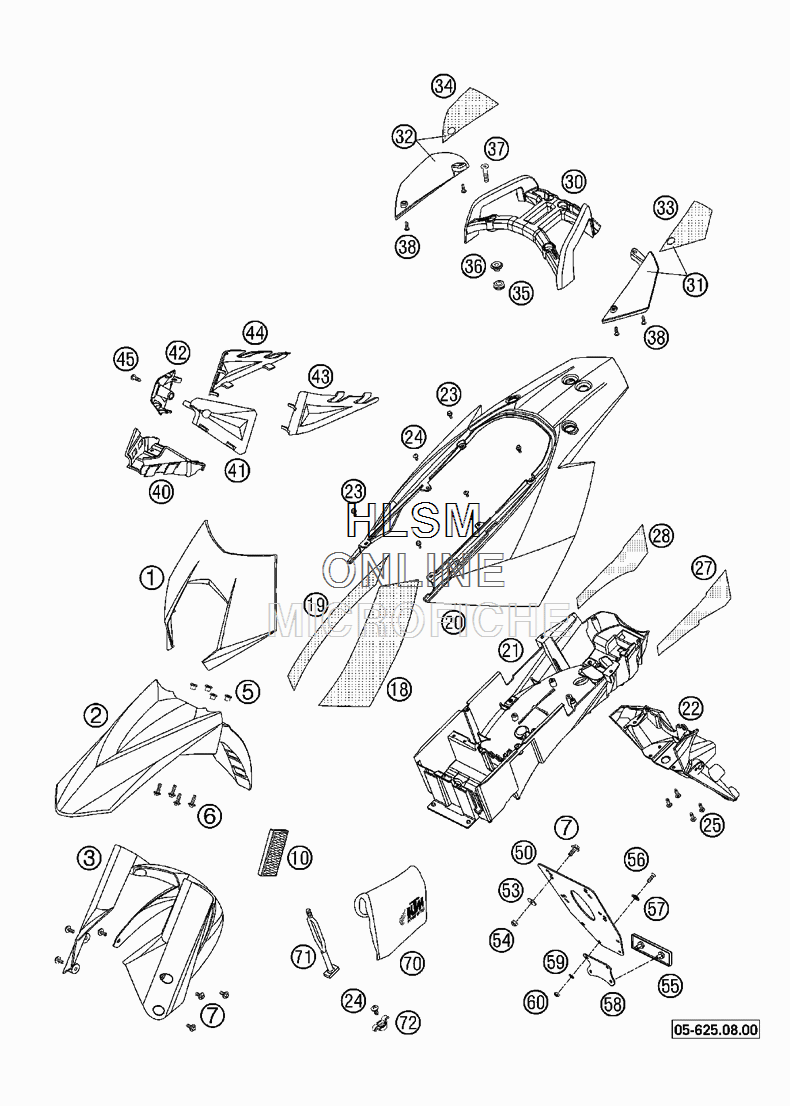

MASK W/ FENDERS для Ktm 950 SUPERMOTO - 2005 года выпуска
-
№АртикулНазвание
-
15860800100004 HEAD LIGHT MASK ORANGEHEAD LIGHT MASK ORANGE
-
15860800100030A HEAD LIGHT MASK BLACKHEAD LIGHT MASK BLACK
-
26250801000004 FENDER FRONT ORANGEFENDER FRONT ORANGE
-
26250801000030A FENDER FRONT BLACKFENDER FRONT BLACK
-
362501094000 SPLASH PROTECT.SPLASH PROTECT.
-
562508009000 COLLAR BUSHING 7,2X10X15X8,5COLLAR BUSHING 7,2X10X15X8,5
-
60014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
70014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1060012080000 SIDE REFLECTOR YELLOWSIDE REFLECTOR YELLOW
-
1862508018050 THERM.PROTECT. FOIL L/S TOPTHERM.PROTECT. FOIL L/S TOP
-
1962508018060 THERM.PROTECT. FOIL R/S TOPTHERM.PROTECT. FOIL R/S TOP
-
206250801800004A REAR END TOP PART ORANGEREAR END TOP PART ORANGE
-
206250801800030A REAR END TOP PART BLACKREAR END TOP PART BLACK
-
2162508019000 REAR END LOWER PARTREAR END LOWER PART
-
2262508015000 NUMB.PLATE CARRIERNUMB.PLATE CARRIER
-
230015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
240016050121 SCREW FOR PLASTIC D=5X12SCREW FOR PLASTIC D=5X12
-
250017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
2762508019050 THERMAL PROTECTION FOIL L/STHERMAL PROTECTION FOIL L/S
-
2862508019060 THERMAL PROTECTION FOIL R/STHERMAL PROTECTION FOIL R/S
-
3062512010000 BAGGAGE RACKBAGGAGE RACK
-
3162512008000 COVER SILENCER L/SCOVER SILENCER L/S
-
3262512009000 COVER SILENCER R/SCOVER SILENCER R/S
-
3362512008050 THERMAL PROTECTION FOIL L/STHERMAL PROTECTION FOIL L/S
-
3462512009050 THERMAL PROTECTION FOIL R/STHERMAL PROTECTION FOIL R/S
-
3541001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
3660012008003 COLLAR BUSHING 8,2X12X28X9COLLAR BUSHING 8,2X12X28X9
-
370991080403 FLAT HEAD SCREW DIN7991-M 8X40FLAT HEAD SCREW DIN7991-M 8X40
-
380081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
4060003087000 SPLASH PROTECTOR FRAMESPLASH PROTECTOR FRAME
-
4162503085000 COVER FRAME L/S FRONTCOVER FRAME L/S FRONT
-
4262503086000 COVER FRAME R/S FRONTCOVER FRAME R/S FRONT
-
4362503083000 COVER FRAME L/S REARCOVER FRAME L/S REAR
-
4462503084000 COVER FRAME R/S REARCOVER FRAME R/S REAR
-
450081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
5060012081100 LICENCE NUMBER PLATE 05LICENCE NUMBER PLATE 05
-
530021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
540985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5558412080000 REFLECTOR REDREFLECTOR RED
-
560966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5740006006000 WASHER 6MMWASHER 6MM
-
5858412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
590125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
600985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
7061029099000 TOOL SETTOOL SET
-
7150303018000 RUBBER L=145MMRUBBER L=145MM
-
7262508021000 SUPPORT TOOL SETSUPPORT TOOL SET
